Bearings Housing Units Plummer Block Housing Units

INA PCFT25-XL Flanged Housing Unit

Name: INA PCFT25-XL FLANGED HOUSING UNIT
SKU: 1030822
Availability: LimitedAvailability

ina-PCFT25-XL-flanged-housing-unit-(new)-(carton)

ina-PCFT25-XL-flanged-housing-unit-(new)-(carton)-1

ina-PCFT25-XL-flanged-housing-unit-(new)-(carton)-2

ina-PCFT25-XL-flanged-housing-unit-(new)-(carton)-3

ina-PCFT25-XL-flanged-housing-unit-(new)-(carton)-4

ina-PCFT25-XL-flanged-housing-unit-(new)-(carton)-5

Neu

Auf Lager2 EinheitenVersandbereit

Hersteller: INA Typ: Zweischraubige Gehäuseeinheiten Modell: PCFT25-XL Ersatz für: PCFT25 Gehäuse: GG. CFT05 Lagerbezeichnung: GRAE25-XL-NPP-B

Hersteller

INA?

SKU

1030822

Kategorie

Plummer Block Housing Units

Zustand

Neu

25 bearing bearings Cast Collar Eccentric flanged Housing Iron locking mm p Pcft Seals Two-Bolt Units

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: INA
Type: two-bolt flanged housing units
Model: PCFT25-XL
Replaces: PCFT25
Housing: GG. CFT05
Bearing designation: GRAE25-XL-NPP-B

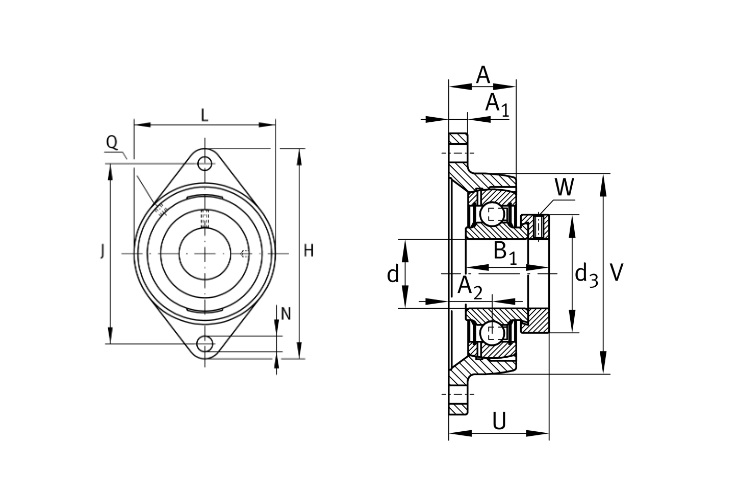

Bore Diameter d: 25 mm
Flange width L: 70 mm
Height flange H: 124 mm
Total height unit U: 36 mm
Distance fixing bore J: 99 mm
Fixing bore N: 11.5 mm
Basic dynamic load rating: 14900 N
Basic static load rating: 7800 N
Fatigue load limit: 410 N
Temperature range: -20 °C…120°C
Material: GG, Grey cast iron
