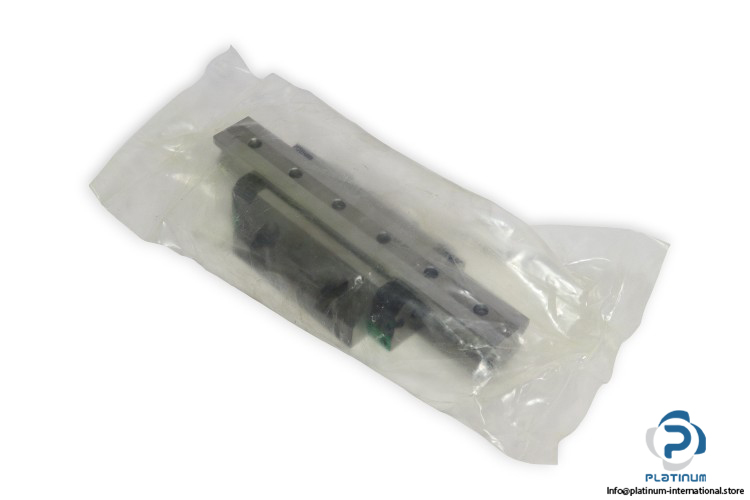

INA RUE35-E-L-ADK Linear Recirculating Roller Bearing Assembly

Name: INA RUE35-E-L-ADK LINEAR RECIRCULATING ROLLER BEARING ASSEMBLY
SKU: 1089701
Availability: LimitedAvailability

ina-RUE35-E-L-ADK-linear-recirculating-roller-bearing-assembly-(new)-(carton)

ina-RUE35-E-L-ADK-linear-recirculating-roller-bearing-assembly-(new)-(carton)-1

ina-RUE35-E-L-ADK-linear-recirculating-roller-bearing-assembly-(new)-(carton)-2

ina-RUE35-E-L-ADK-linear-recirculating-roller-bearing-assembly-(new)-(carton)-3

ina-RUE35-E-L-ADK-linear-recirculating-roller-bearing-assembly-(new)-(carton)-4

ina-RUE35-E-L-ADK-linear-recirculating-roller-bearing-assembly-(new)-(carton)-5

ina-RUE35-E-L-ADK-linear-recirculating-roller-bearing-assembly-(new)-(carton)-6

ina-RUE35-E-L-ADK-linear-recirculating-roller-bearing-assembly-(new)-(carton)-7

ina-RUE35-E-L-ADK-linear-recirculating-roller-bearing-assembly-(new)-(carton)-8

Neu

Auf Lager1 EinheitVersandbereit

Linearführungsmontage INA Linearumlaufrollenlager und Führungseinheit Größe 35 mm, mit hoher Tragfähigkeit und hervorragender Steifigkeit für präzise Linearbewegungssysteme.

SKU

1089701

Kategorie

Linear Motion

Zustand

Neu

35 bearing Block CNC Duty Guide Guideway Heavy Ina Industrial Linear Motion Precision Recirculating Roller RUE35 RWU35 Size

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

INA RUE35-E-L-ADK Linear Guideway Assembly

The INA RUE35-E-L-ADK linear recirculating roller bearing and guideway assembly is designed for high-load, high-rigidity linear motion applications. It provides precise guidance, excellent load capacity, and stable operation in demanding industrial environments.

Manufacturer: INA

Type: Linear Recirculating Roller Bearing and Guideway Assembly

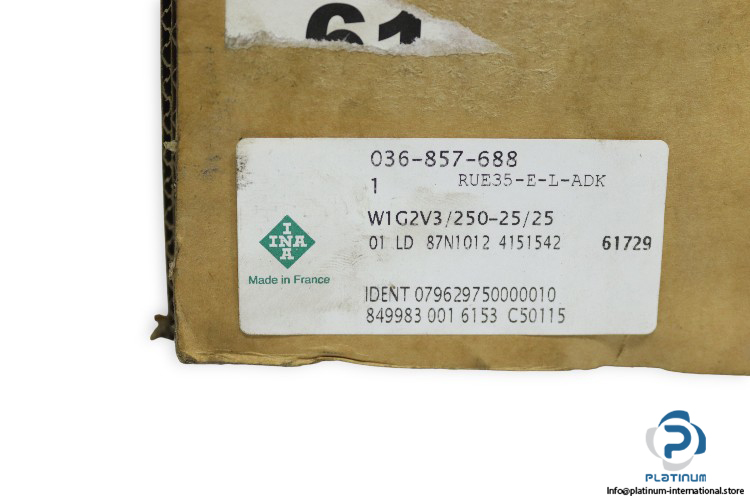

Model: RUE35-E-L-ADK W1G2V3/250-25/25

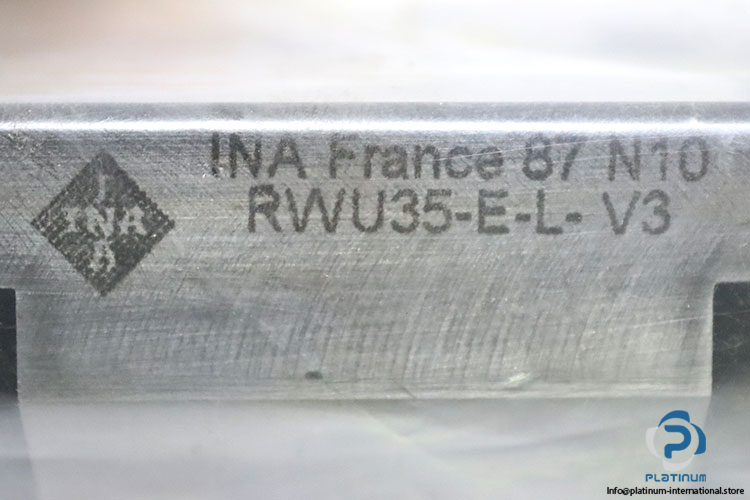

Bearing Model: RWU35-E-L-V3

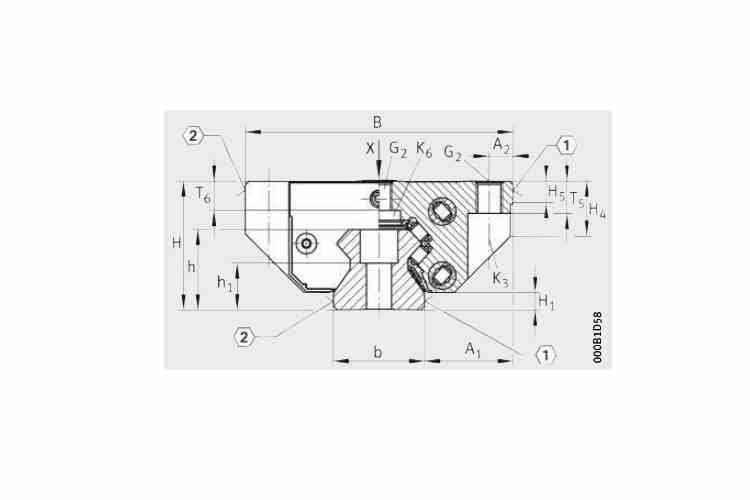

Size	35 mm
Height System	48 mm
Width Carriage	100 mm
Overall Length Carriage	148.8 mm
Rail Width	34 mm
H1	6.5 mm
H4	20.5 mm
H5	8 mm

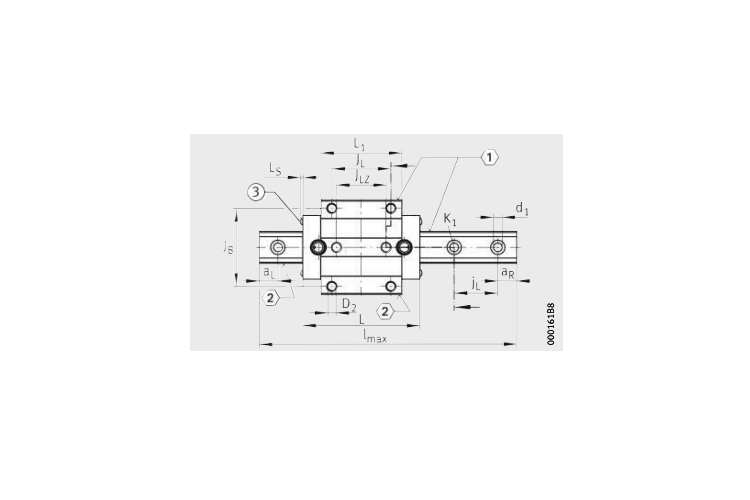

L1	111 mm
Dynamic Load Rating	70,000 N
Static Load Rating	175,000 N
Static Moment Rating About X Axis (M0x)	1,500 Nm
Static Moment Rating About Y Axis (M0y)	3,350 Nm
Static Moment Rating About Z Axis (M0z)	3,000 Nm
