INA RUS 19069 GR 3 Linear Recirculating Roller Bearing Unit
Gebraucht
Auf Lager1 EinheitVersandbereit
Lineare Rollenlagereinheit INA RUS19069GR3 mit hoher Tragfähigkeit und präziser Führung für industrielle Linearbewegungssysteme.
bearingComponentGuideHighInaIndustrialLinearLoadMotionPrecisionRecirculatingRollerRUS19069GR3SchaefflerUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

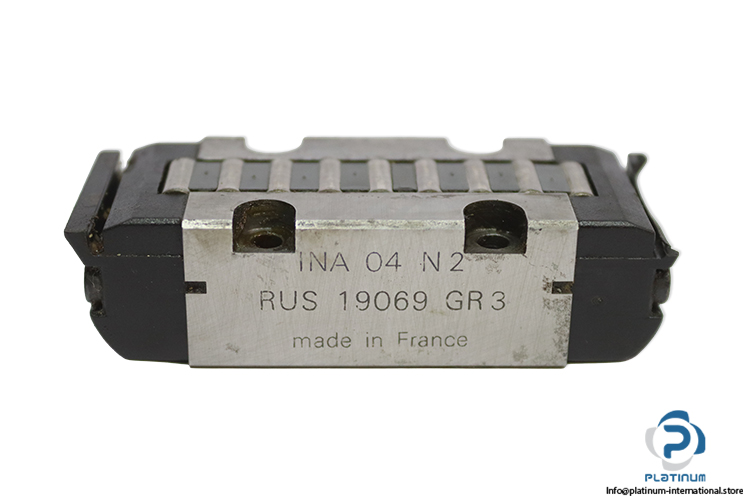

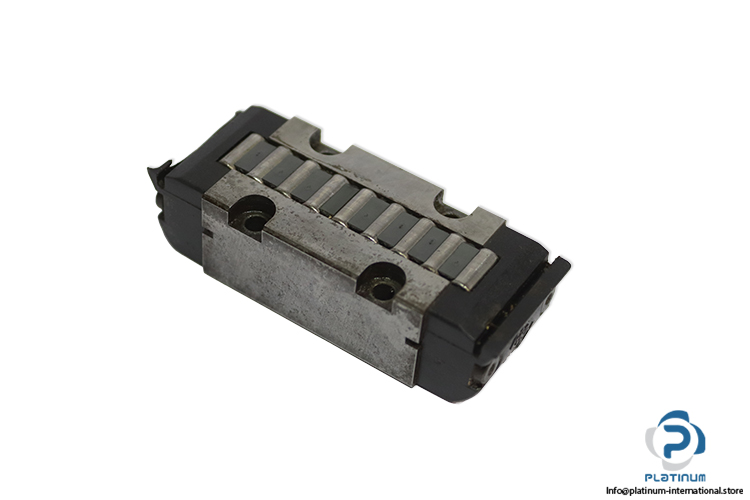

INA RUS19069GR3 Linear Recirculating Roller Bearing Unit
The INA RUS19069GR3 is a precision linear recirculating roller bearing unit designed for high load capacity and accurate linear motion in industrial guidance systems. It is engineered for rigidity, durability, and reliable performance in demanding applications.
Manufacturer: INA / Schaeffler
Type: Linear Recirculating Roller Bearing Unit
Model: RUS19069GR3
Compatible With:
Adjustment Gib: VUS19069-A
Guide Rail: UG6628, UGN6628, UZ6628, UZN6628, UFK3210, UFB4710

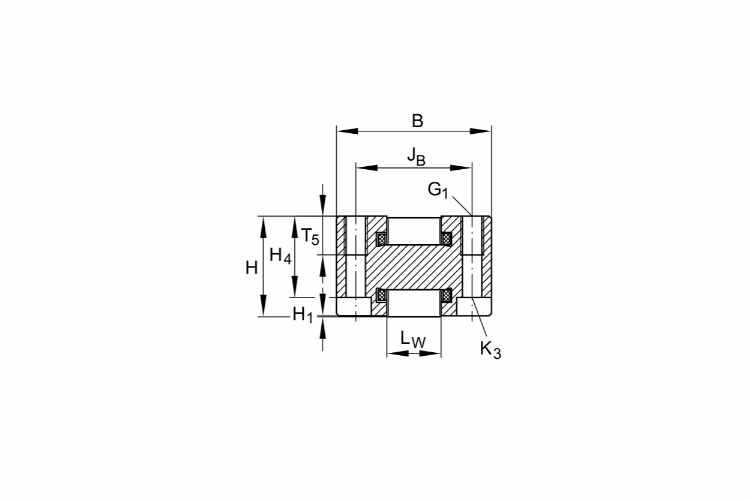

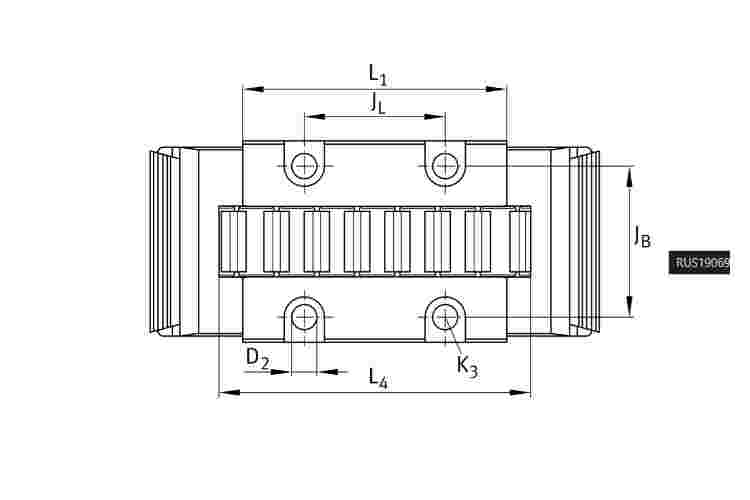

| Total Length (Ltot) | 74 mm |
| Length (L) | 70.4 mm |
| Width (B) | 27 mm |
| Height (H) | 19 mm |
| Mounting Dimension (L1) | 43.8 mm |
| Mounting Dimension (JB) | 20.6 mm |
| Fixing Screws Top (G1) | M4 |
| Fixing Screws Below (K3) | M3 |
| T5 | 6.2 mm |
| LW | 10 mm |
| H4 | 15.2 mm |
| Basic Dynamic Load Rating (C) | 42,000 N |
| Basic Static Load Rating (C0) | 66,000 N |
