IPC CFX2121201 Centrifugal FAN
Gebraucht
Auf Lager1 EinheitVersandbereit
144,44$
Centrifugal Fan
The IPC CFX2121201 is a powerful centrifugal fan with metal blades and housing, 230 V AC operation, and 395 m³/h max airflow. Suitable for industrial and HVAC applications with IP44 protection and low noise.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
IPC CFX2121201 Centrifugal Fan
The IPC CFX2121201 Centrifugal Fan is a high-performance ventilation component designed for demanding industrial and HVAC systems. Featuring a robust metal blade and housing, the fan delivers reliable airflow and efficiency. It operates on 230 V AC with variable performance across 50/60 Hz frequencies, making it suitable for a wide range of systems.

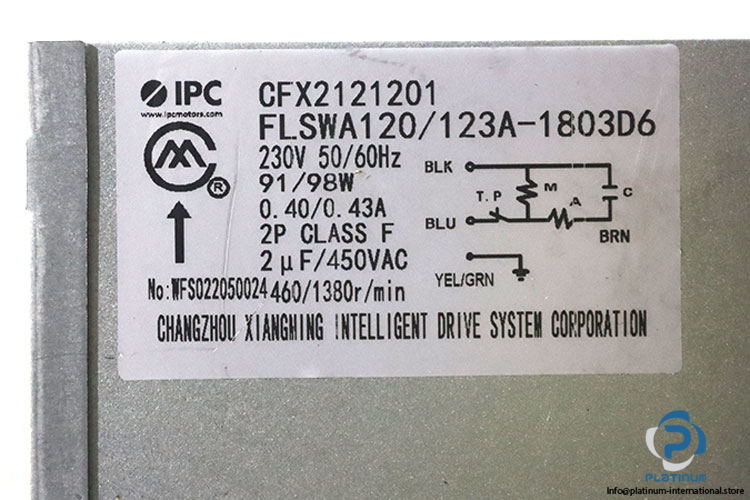

Manufacturer: IPC
Type: Centrifugal Fan
Model: CFX2121201
Motor Model: FLSWA120/123A-1803D6
| Dimensions | 120 x 123 mm |
| Voltage | 230 V AC |
| Power Rating | 0.091/0.098 kW (91/98 W) |
| Speed | 1460 / 1380 rpm |
| Flow Rate | 395 / 365 m³/h |
| Current | 0.40 / 0.42 A |
| Inverter | Without Inverter |
| Frequency | 50 / 60 Hz |
| Number of Wires | 4 |
| Blade / Housing Material | Metal |
| Class | F |
| Noise Level | 59 / 58 dB(A) |
| Static Pressure | 316 / 432 Pa |
| IP Rating | IP44 |
| Capacitor Value | 2 μF @ 450 V AC |
