J+J S55 Electric Actuator
Gebraucht
Auf Lager1 EinheitVersandbereit
289,99$
Electric Actuator
High-performance 1/4 turn electric actuator with 24“240 V AC/DC input, 60 Nm torque, 14 sec / 90° operation, and IP67 protection. Designed for reliable valve automation in industrial environments.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
J+J S55 Electric Actuator

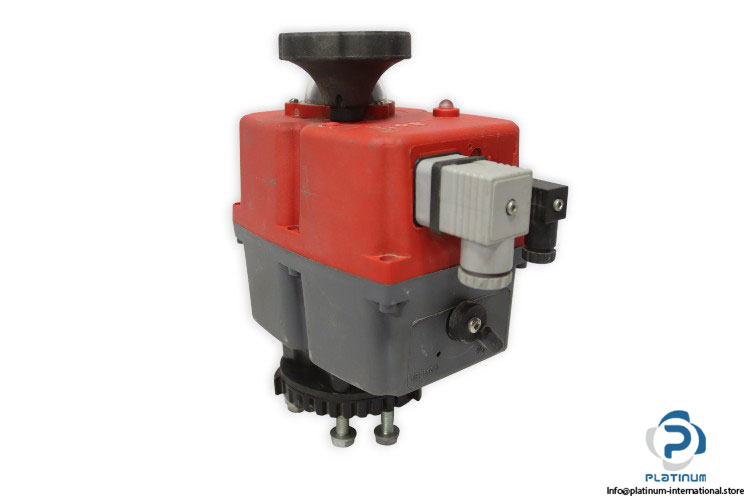

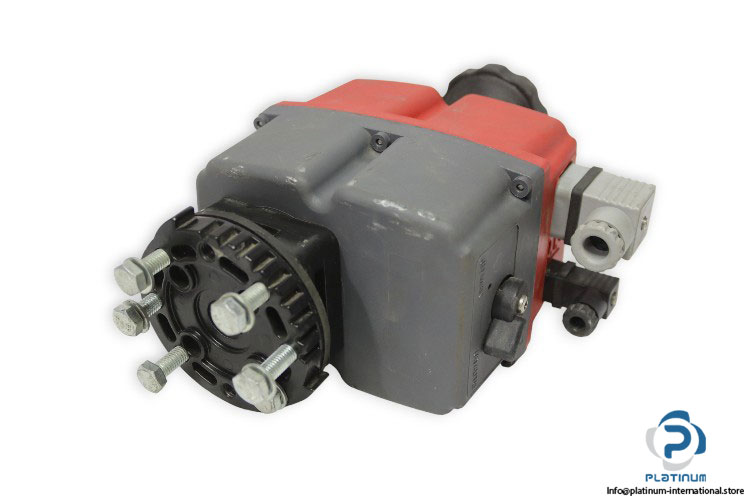

The J+J S55 Electric Actuator from the J3CS series is a high-performance solution engineered for precise 1/4 turn valve automation. Designed for reliability, versatility, and smooth operation, it supports a wide voltage range and delivers consistent torque output, making it suitable for demanding industrial and commercial flow control systems. Its robust construction and IP67 protection rating ensure excellent durability in harsh environments, while the efficient actuation time provides fast and accurate positioning.

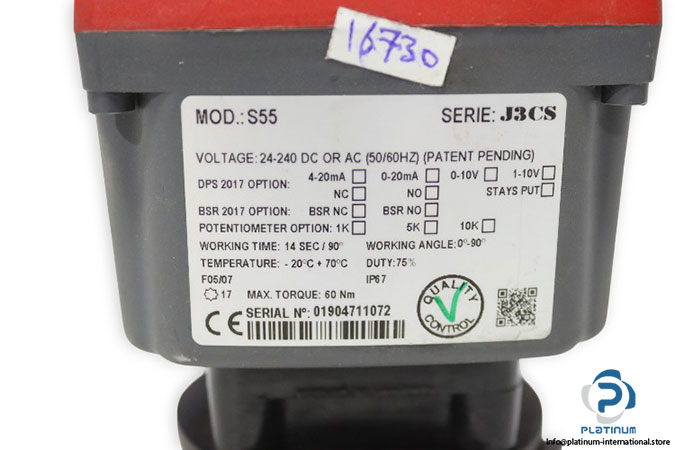

Manufacturer: J+J
Type: Electric Actuator For 1/4 Turn Valves
Model: S55
Series: J3CS
Serial No.: 01904711072
| Voltage | 24 to 240 V DC or AC (50/60 Hz), Patent Pending |
| Current | 1.1 A |
| Duty | 75% |
| Working Time | 14 sec / 90° |
| Working Angle | 0 to 90° |
| Max. Torque | 60 Nm |
| Temperature Range | -20°C to +70°C |
| Protection Rating | IP67 |
