KEB 0610670-4009 Clutch Brake
Gebraucht
Auf Lager2 EinheitenVersandbereit
444,44$
KUPPLUNGSBREMSE KEB 0610670-4009 Kupplungsbremse mit 24 VDC Kupplung und Bremse, 7 Nm Drehmoment, 15 W Kupplungsleistung, 12 W Bremsleistung, 14 mm Wellen-/Bohrungsdurchmesser, Isolierklasse B.
0610670-400924VDC7NmANDBBrakeClassClutchCombiboxControlIndustrialInsulationKEBMagnetMotionSystemtechnologyUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

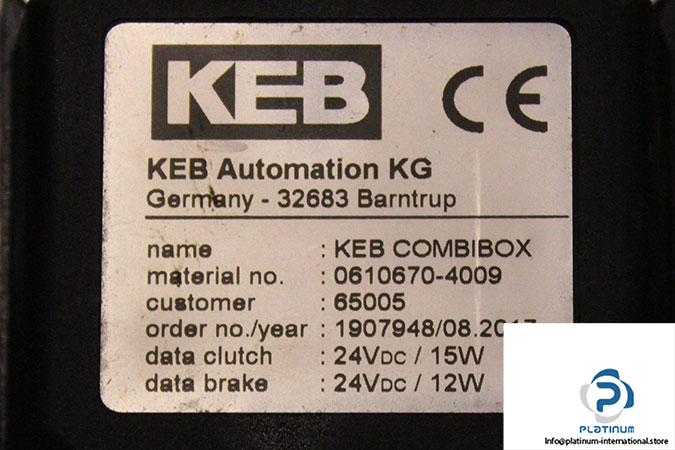

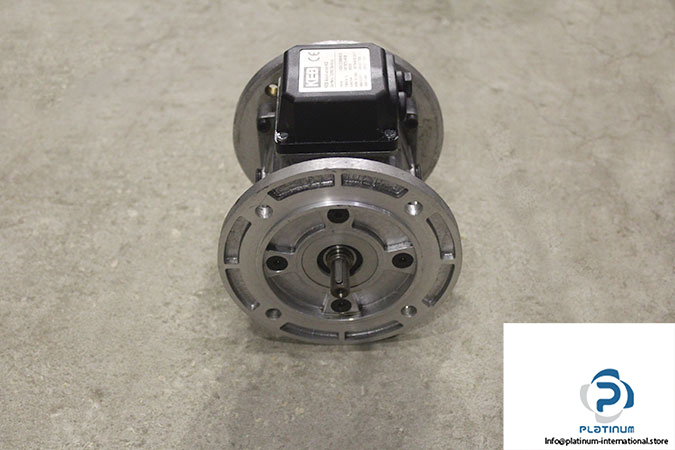

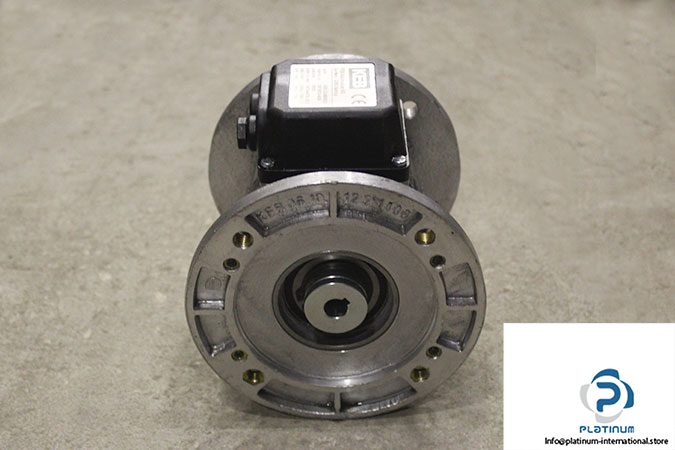

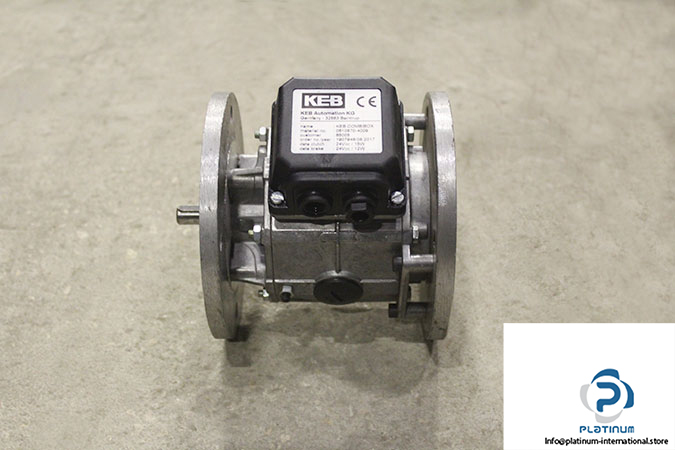

KEB 0610670-4009 Clutch Brake Magnet Technology
The KEB 0610670-4009 is a high-performance clutch brake unit from the Combibox series, designed with advanced magnet technology. Offering reliable torque transfer, dual clutch and brake function, and compact design, it ensures precise and efficient motion control in industrial machinery.
Manufacturer: KEB
Type: Clutch Brake Magnet Technology
Model: 0610670-4009
Combibox: Bore In / Shaft Out
Size: 06
Type: 10
Design: 670
| Voltage Clutch | 24 VDC |
| Voltage Brake | 24 VDC |
| Torque Clutch | 7 Nm |
| Torque Brake | 7 Nm |
| Power Clutch | 15 W |
| Power Brake | 12 W |
| Shaft/Bore Diameter | 14 mm |
| Insulation Class | B |
