KEB TA22 V40 EAM TW Servo Motor
Neu
Auf Lager1 EinheitVersandbereit
850,00$
SERVO MOTOR
KEB TA22V40EAMTW is a 400 V, IP64-rated servo motor offering 1.45 Nm rated torque, 4500 rpm speed, and equipped with a 13-bit gray code encoder for precision motion control.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

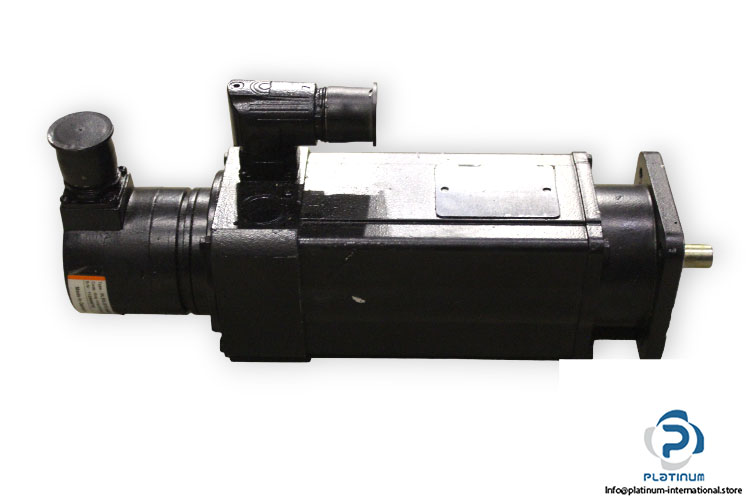

KEB TA22V40EAMTW SERVO MOTOR
This high-performance servo motor from KEB is designed for precise motion control in industrial automation systems. With robust torque output and a high IP64 protection class, it is equipped to handle demanding operational environments while ensuring consistent and efficient performance.
Manufacturer: KEB
Type: Servo Motor
Model: TA22V40EAMTW
Part No.: 03-2012/19887202.001
Serial No.: 1128606783
| Rated Voltage | 400 V |
| Rated Current | 1.42 A |
| Rated Torque | 1.45 Nm |
| Stall Torque | 1.55 Nm |
| Max. Torque | 4.65 Nm |
| Rated Speed | 4500 rpm |
| Frequency | 150 Hz |
| Constant Voltage | 91.7 mV*min |
| Resistance | 29.433 „¦ |
| Encoder Voltage | 5 VDC |
| Encoder Current | 80 mA |
| Protection Class | IP64 |
| Thermal Class | F |
| Inductance (Length) | 30.42 mH |

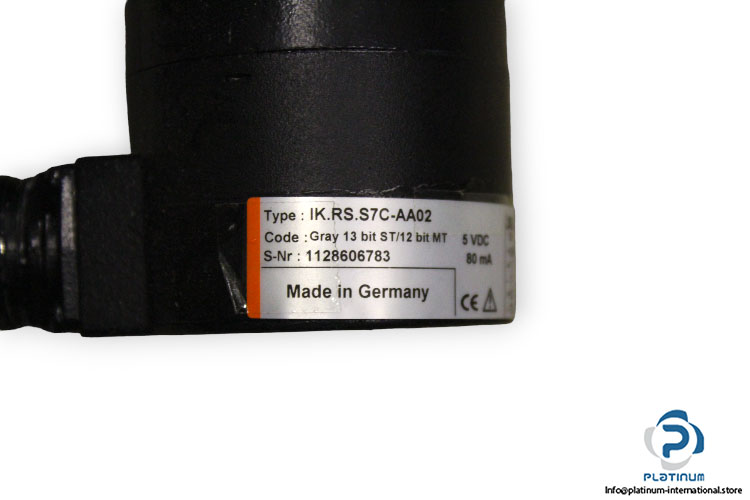

| Attached Encoder | IK.RS.S7C-AA02 |
| Encoder Code | Gray 13 bit ST / 12 bit MT |
