Keyence FS-N11CP Digital Fiber Optic Sensor
Neu
Auf Lager1 EinheitVersandbereit

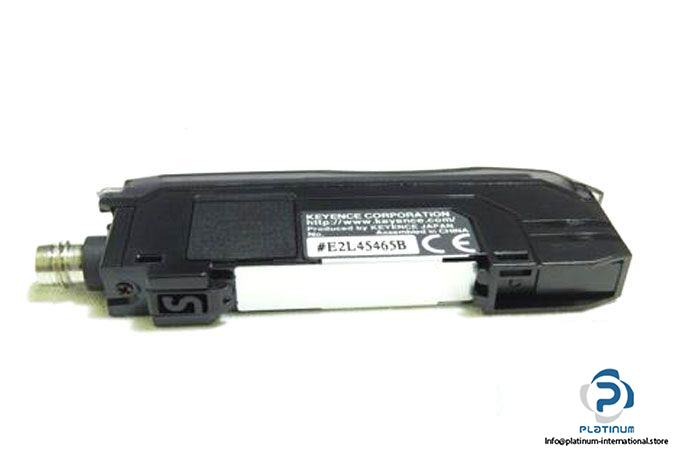

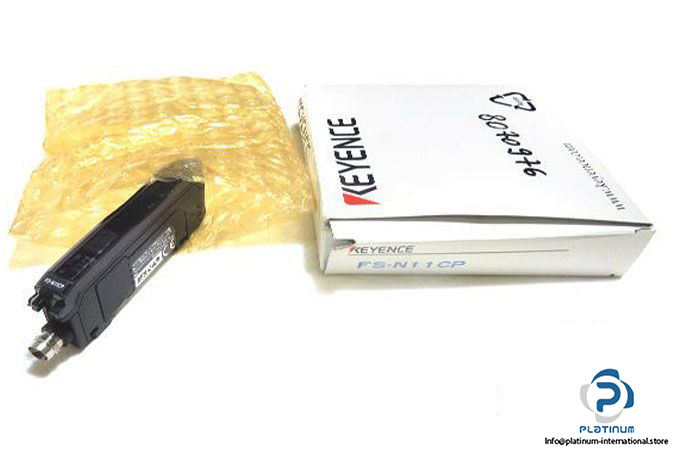

Digital Fiber Optic Sensor The Keyence FS-N11CP is a digital fiber optic sensor featuring a 12–24 VDC power supply, PNP open-collector output, fast response time, and M8 connector, making it ideal for high-speed industrial automation and object detection applications.
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

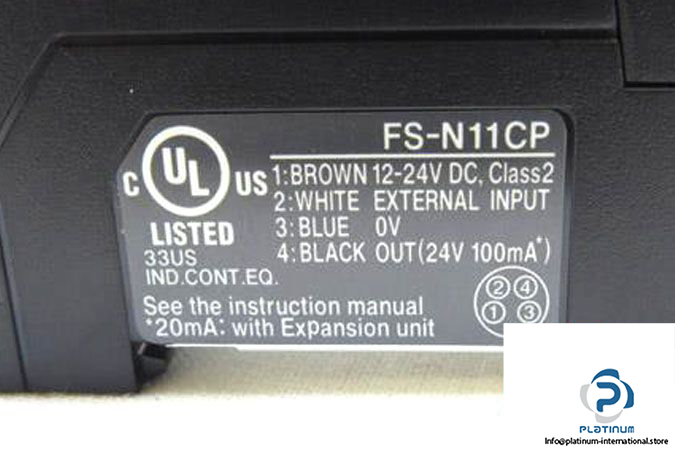

| Power Voltage | 12 to 24 VDC |
| Current consumption | Normal 950 mW or less (39 mA max. at 24 V, 52 mA max. at 12 V) |
| Output | PNP open collector 24 V; 1 output max: 100 mA |
| Residual Voltage | <1V |
| Response time | 16 ms … 50 µs |

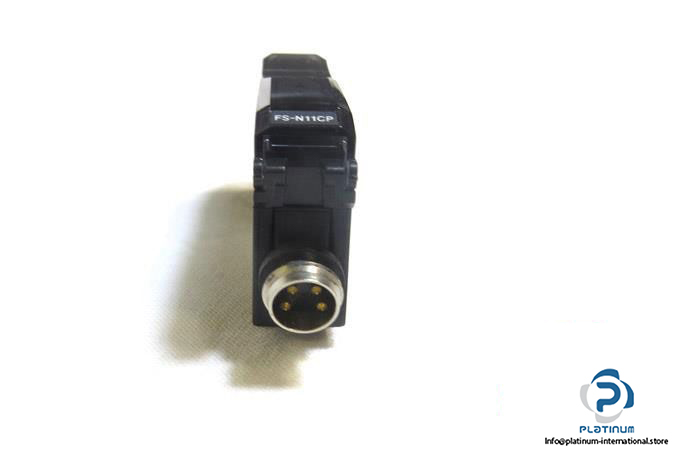

| Connection | M8 connector |
| Relative humidity | 35 … 85 % |
| Vibration resistance | 10 to 55 Hz |
| Light source LED | Red, 4-element LED |
| Case material | Both main unit and expansion unit housing material: Polycarbonate |
| Ambient temperature | -20 to +55 °C |
| Certificate | cULus |
| Condition | New |
| SKU | 692751 |
| Weight | 0,02 |
