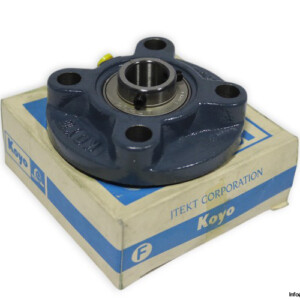

Koyo UCFC204 J Round Flange Ball Bearing Unit

Manufacturer: KOYO
Type: Round flange ball bearing unit
Model: UCFC 204 J
Bearing Number: UC204

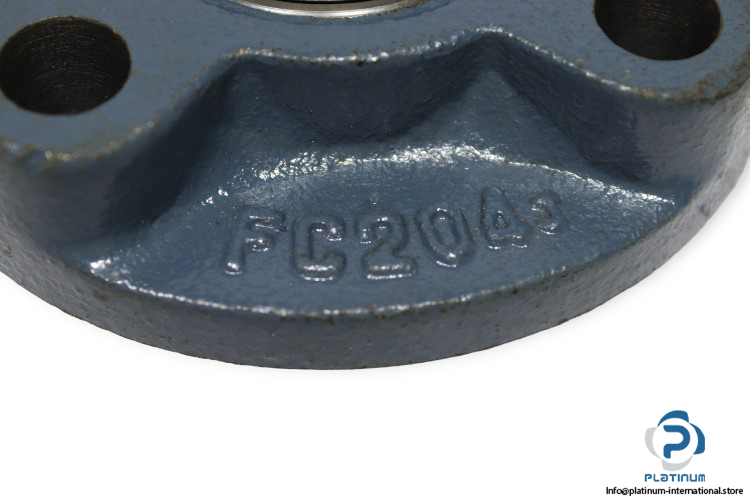

Housing Number: FC204J

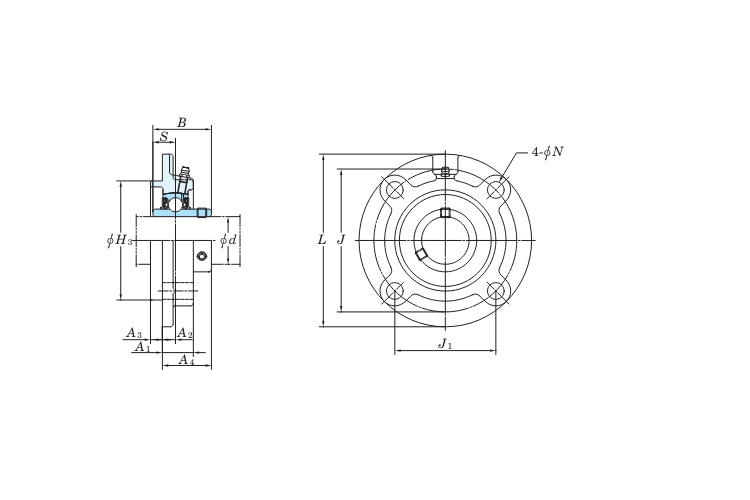

Dimensions
Bore Diameter d: 20 mm
Outside diameter L: 100 mm
Distance between attachment bolts J1: 55.1 mm
Pitch diameter of attachment bolts J: 78 mm
Length of attachment bolt hole N: 12 mm
Width of inner ring B: 31 mm
Overall width A₀: 28.3 mm
Basic load rating:
Dynamic Cr: 12800 N
Static C0r: 6650 N
Locking Device: Set Screw
Bore Type: Cylindrical
Material, housing: Cast iron
