Bearings Housing Units Plummer Block Housing Units

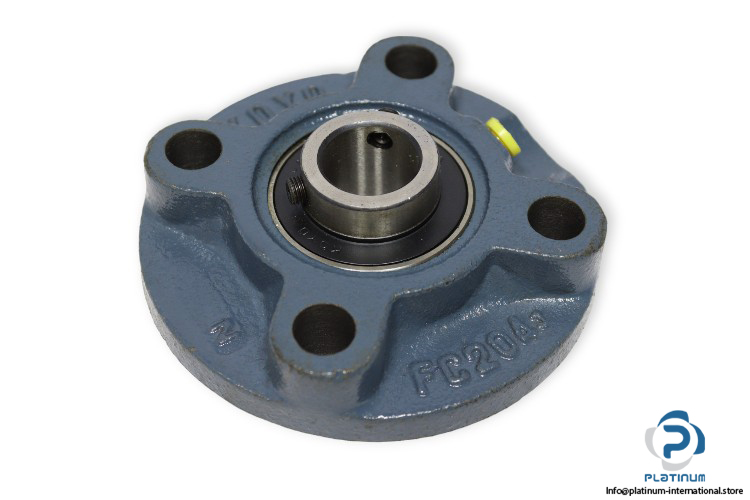

Koyo UCFC204 J Round Flange Ball Bearing Unit

Name: KOYO UCFC204 J ROUND FLANGE BALL BEARING UNIT
SKU: 1049007
Availability: LimitedAvailability

koyo-UCFC204-J-round-flange-ball-bearing-unit-(new)

koyo-UCFC204-J-round-flange-ball-bearing-unit-(new)-1

koyo-UCFC204-J-round-flange-ball-bearing-unit-(new)-2

koyo-UCFC204-J-round-flange-ball-bearing-unit-(new)-3

Nouveau

En stock1 unitéPrêt à être expédié

Type : Unité de palier à billes à bride ronde

Fabricant

KOYO ?

SKU

1049007

Catégorie

Plummer Block Housing Units

Condition

Nouveau

20 bearing bearings Flange flanged Four-Bolt Koyo mm Pillow Round Unit

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

Manufacturer: KOYO
Type: Round flange ball bearing unit
Model: UCFC 204 J

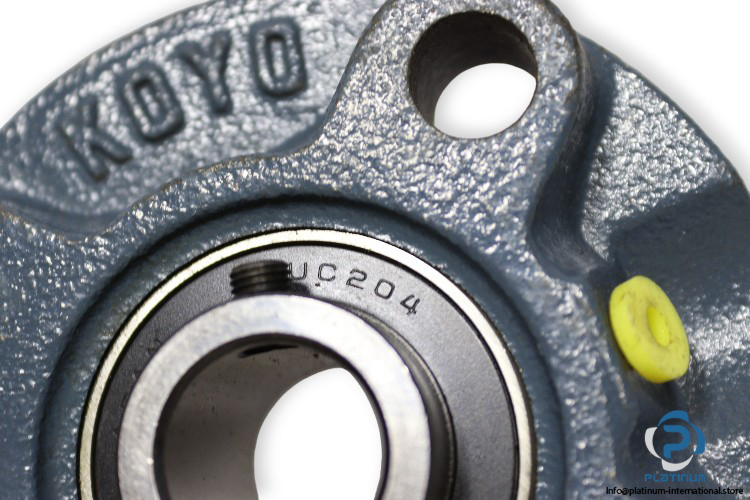

Bearing Number: UC204

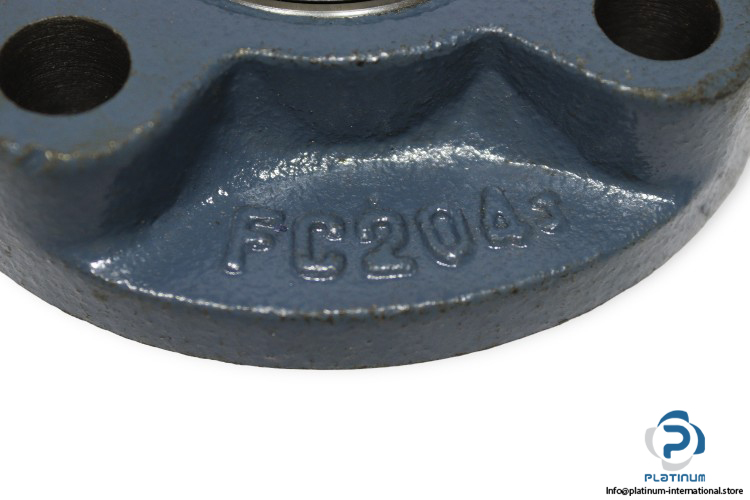

Housing Number: FC204J

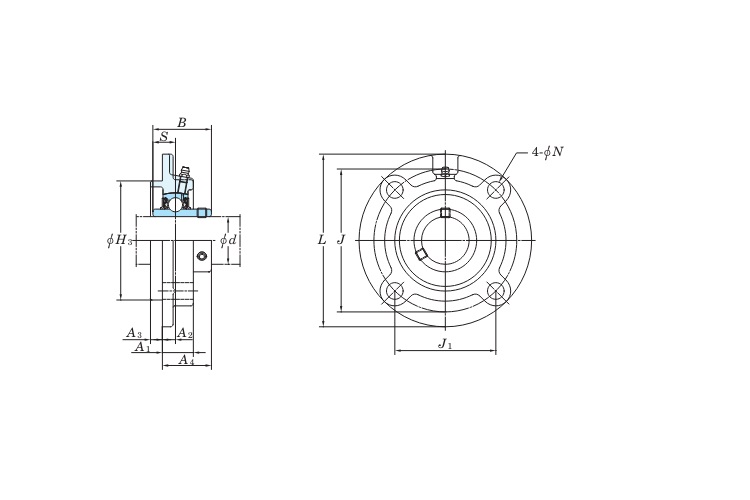

Dimensions
Bore Diameter d: 20 mm
Outside diameter L: 100 mm
Distance between attachment bolts J1: 55.1 mm
Pitch diameter of attachment bolts J: 78 mm
Length of attachment bolt hole N: 12 mm
Width of inner ring B: 31 mm
Overall width A₀: 28.3 mm
Basic load rating:
Dynamic Cr: 12800 N
Static C0r: 6650 N
Locking Device: Set Screw
Bore Type: Cylindrical
Material, housing: Cast iron
