Electrical Components Switches Industrial Electrical Switch

KRAUS & NAIMER KG32B T106/D-A012 E SWITCH

Name: KRAUS &amp; NAIMER KG32B T106/D-A012 E SWITCH
SKU: 1086831
Availability: LimitedAvailability

kraus_naimer-KG32B-T106_D-A012-E-switch-new

kraus_naimer-KG32B-T106_D-A012-E-switch-new-1

kraus_naimer-KG32B-T106_D-A012-E-switch-new-2

kraus_naimer-KG32B-T106_D-A012-E-switch-new-3

kraus_naimer-KG32B-T106_D-A012-E-switch-new-4

Neu

Auf Lager1 EinheitVersandbereit

ROTARY SWITCH

Kraus & Naimer KG32B T106/D-A012 E rotary switch from KG 32 series with 690 V insulation voltage, 30 A rated current, 32 A thermal current, and motor ratings up to 10 HP.

Hersteller

KRAUS & NAIMER

SKU

1086831

Kategorie

Industrial Electrical Switch

Zustand

Neu

+GF+0471103004120 30A 32 32A 690V Current E Electrical Industrial KG KG32B Kraus Naimer Phase Rotary Series Single SW Switch T106/D-A012 Thermal three

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

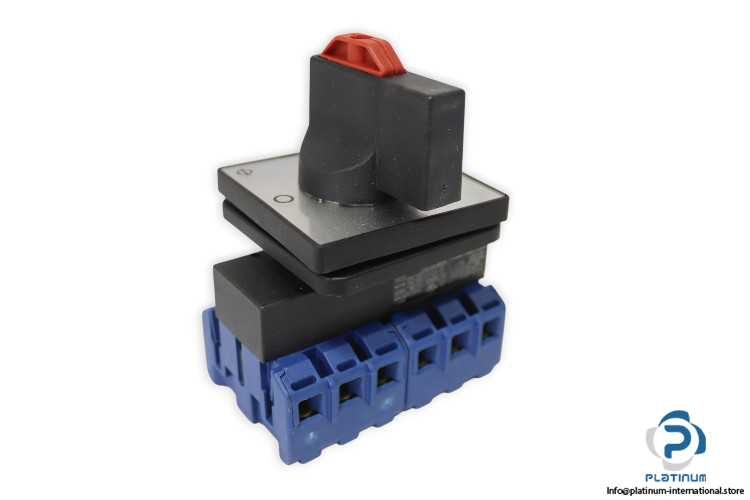

Kraus & Naimer KG32B T106/D-A012 E Rotary Switch

The Kraus & Naimer KG32B T106/D-A012 E rotary switch from the KG 32 series is designed for high-performance switching in industrial electrical systems. Built with rigid silver contacts, screw terminals, and multiple voltage ratings, it ensures safe, durable, and efficient operation across single-phase and three-phase applications.

Manufacturer: Kraus & Naimer

Type: Rotary Switch

Model: KG32B T106/D-A012 E

Part No.: 0471103004120

Series: KG 32

Type Size: S1

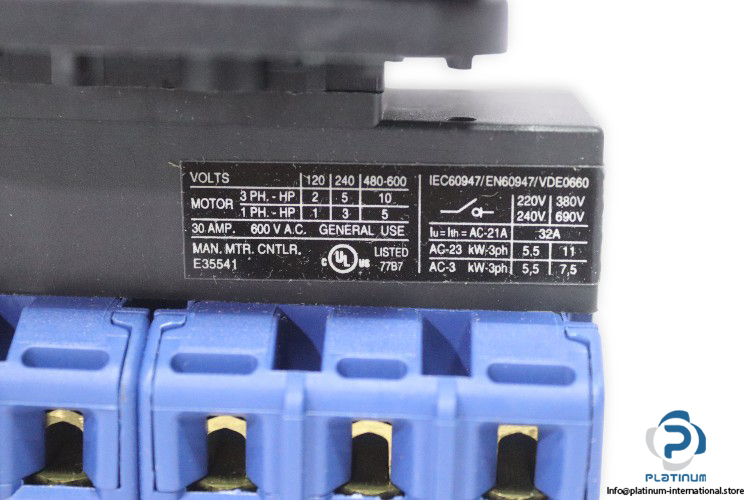

Motor Ratings:

Classification Contact	Rigid contact bridge
Classification Contact Material	Silver
Classification Terminal	Screw terminal
Rated Insulation Voltage (Ui)	690 V
Rated Current	30 A @ 600 V AC
Voltage Ratings	220 V / 380 V / 690 V / 240 V
1-Phase	120 V, 1 HP / 240 V, 3 HP / 480“600 V, 5 HP
3-Phase	120 V, 2 HP / 240 V, 5 HP / 480“600 V, 10 HP
Thermal Current	32 A (AC-21A)
Power	5.5 / 11 / 7.5 kW
