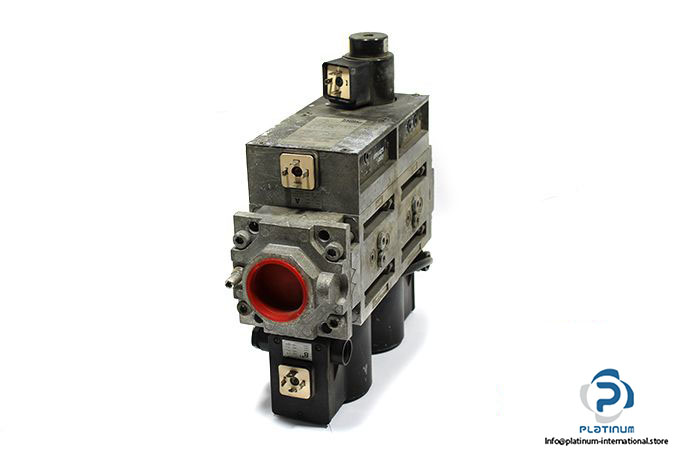

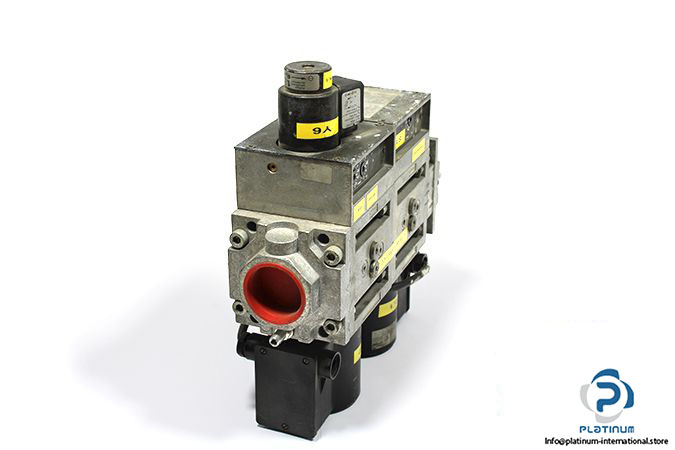

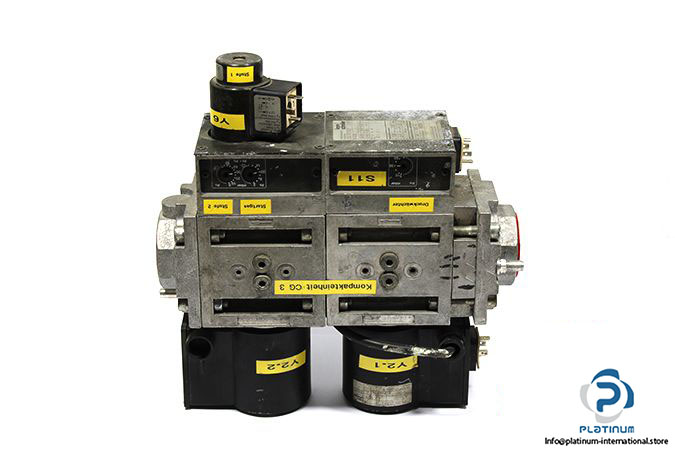

Kromschroeder CG340 R01 ZT2WF1 Combination Control

Manufacturer: KROMSCHROEDER

Type: Adjustable two-stage burner pressure

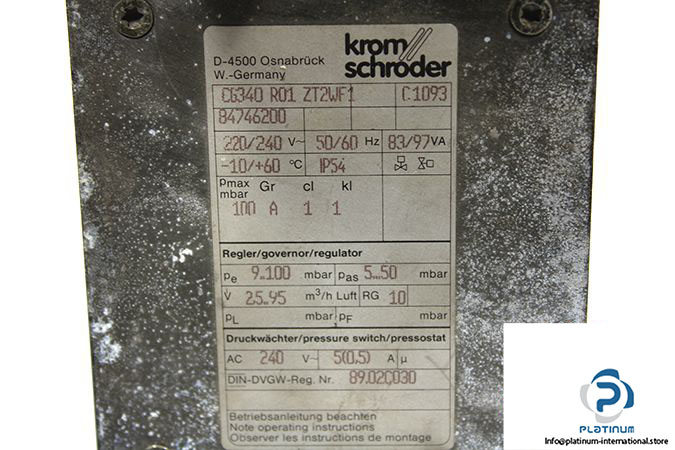

Model: CG340R01ZT2WF1 | CG 340R01-ZT2WF1

Part No.: 84746200

Compact gas control systems with strainer, servo regulator, two safety valves, with or without pressure switch for inlet pressure monitoring, for safeguarding and control of atmospheric burners, forced draught burners and draught-assisted boilers, electrical connection via standard socket, EU certified.

Size: DN40

Connection: Rp internal thread

Inlet Pressure: max. 100

Voltage: 220V … 240 V AC

No. Of Valves: 2

Line Frequency: 50/60 Hz

Power Consumption: 83/97 VA

Weight: 8.1 kg.
