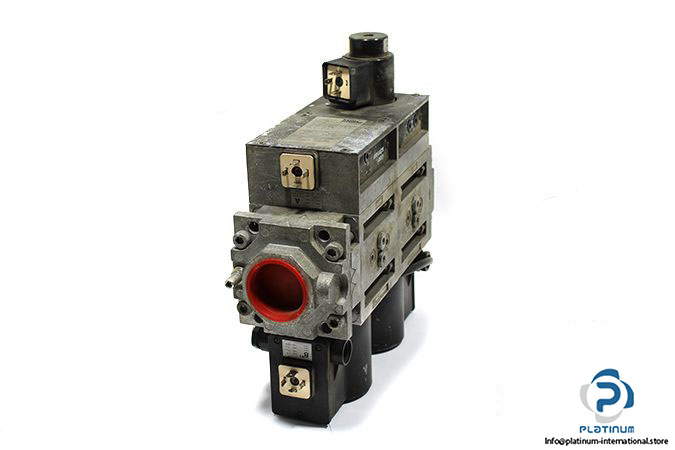

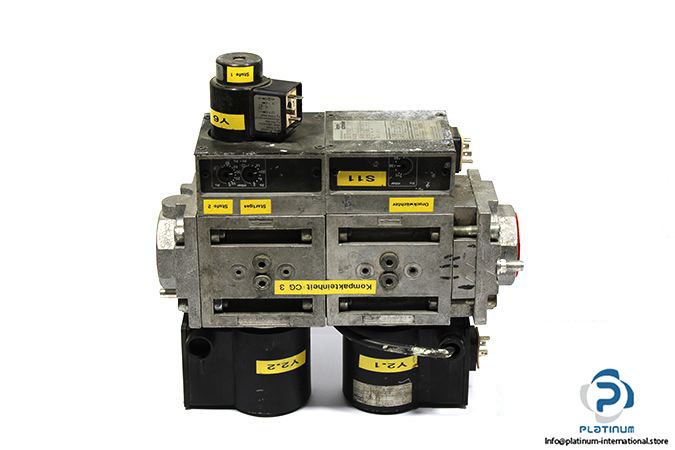

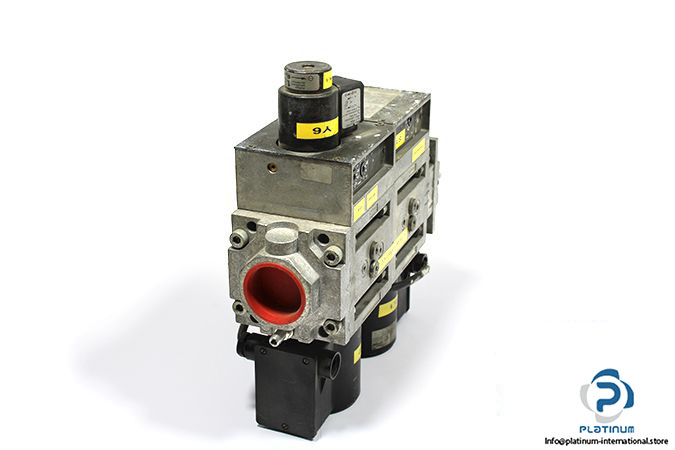

Kromschroeder CG340 R01 ZT2WF1 Combination Control
Used
In stock1 unitReady to ship
AdjustableBlockBurnercombinationControlDoublefilterGasKromschroderKromschroederPressureregulatorsolenoidSwitchTwo-Stagevalves
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: KROMSCHROEDER
Type: Adjustable two-stage burner pressure

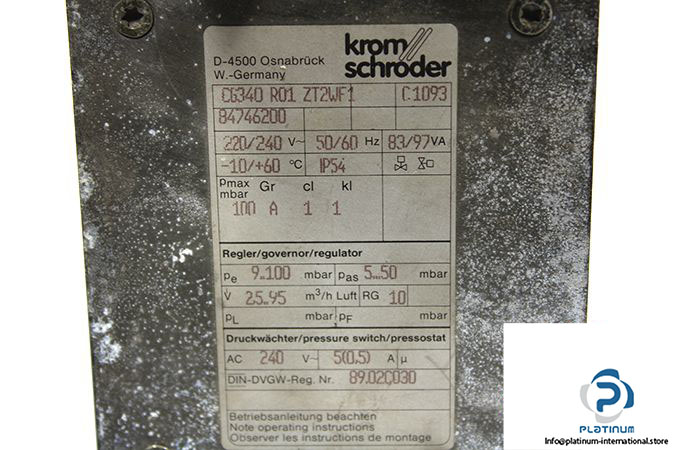

Model: CG340R01ZT2WF1 | CG 340R01-ZT2WF1
Part No.: 84746200
Compact gas control systems with strainer, servo regulator, two safety valves, with or without pressure switch for inlet pressure monitoring, for safeguarding and control of atmospheric burners, forced draught burners and draught-assisted boilers, electrical connection via standard socket, EU certified.
Size: DN40
Connection: Rp internal thread
Inlet Pressure: max. 100
Voltage: 220V … 240 V AC
No. Of Valves: 2
Line Frequency: 50/60 Hz
Power Consumption: 83/97 VA
Weight: 8.1 kg.
