LDK Ucfa 209 Adjustable Flange Unit
Einstellbare Flansch-Einheit Die einstellbare Flansch-Einheit LDK UCFA 209 ist für Präzision und Vielseitigkeit ausgelegt. Mit dem Gehäuse FA 209 und dem Lager UC 209 bietet sie Stabilität und zuverlässige Ausrichtung für industrielle Anwendungen.

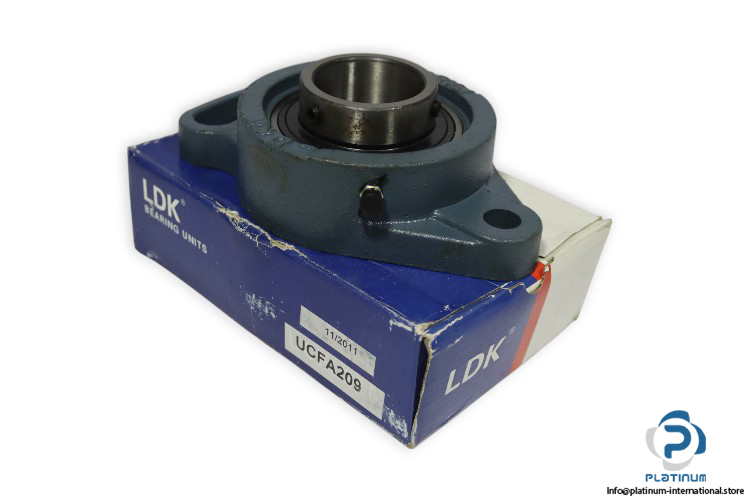

LDK UCFA 209 Adjustable Flange Unit

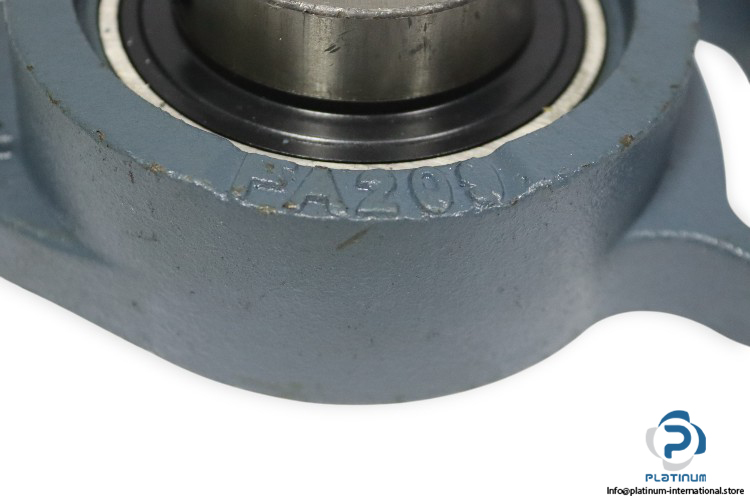

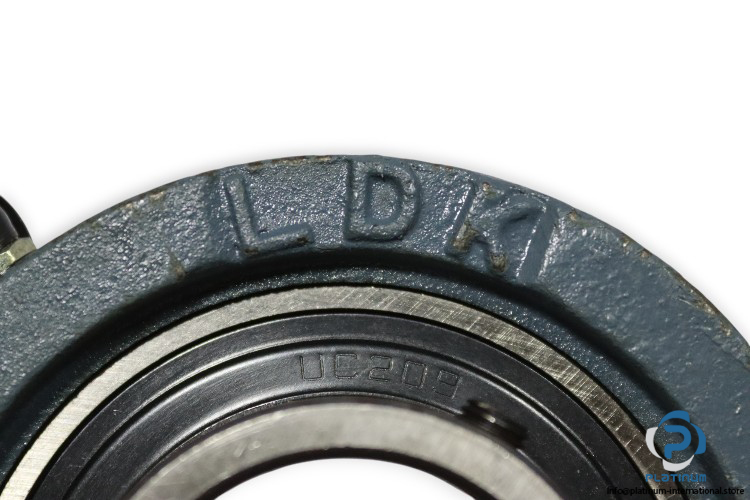

The LDK UCFA 209 Adjustable Flange Unit is a versatile and precision-engineered solution for industrial applications. Featuring the FA 209 housing and UC 209 bearing, this unit ensures reliable performance, stability, and ease of adjustment for various operational needs.
Manufacturer: LDK
Type: ADJUSTABLE FLANGE UNIT

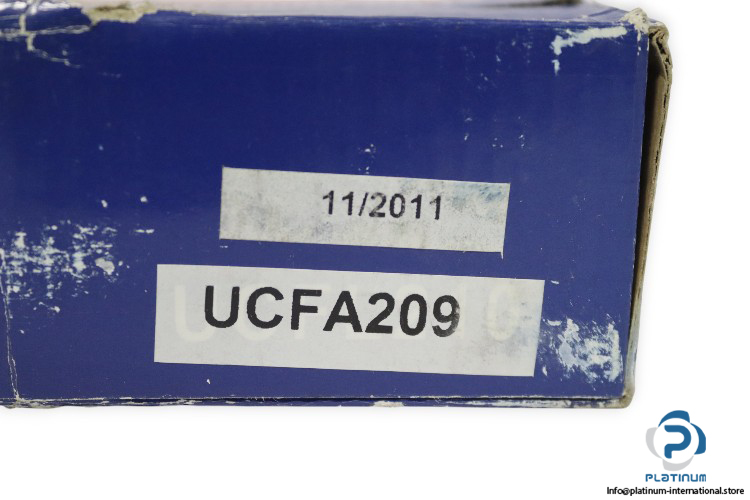

Model: UCFA 209
The LDK UCFA 209 Adjustable Flange Unit is designed for applications that require flexibility, precision, and reliable alignment, making it ideal for industrial machinery and automation systems.
| Bearing No. | UC 209 |
| Housing No. | FA 209 |
| Bore Diameter (d) | 45 mm |
| Overall Length | 180 mm |
| Overall Height | 110 mm |
| Width of Inner Ring | 49.2 mm |
| Distance Between Attachment Bolts | 148 mm |
| Overall Unit Width | 52.2 mm |
| Diameter of Attachment Bolt Hole | 15 mm |
| Bolt Size | M14 |
| Locking Device | Set-Screw |
