Leeson M71-12 Permanent Magnet Motor
Permanent Magnet Motor

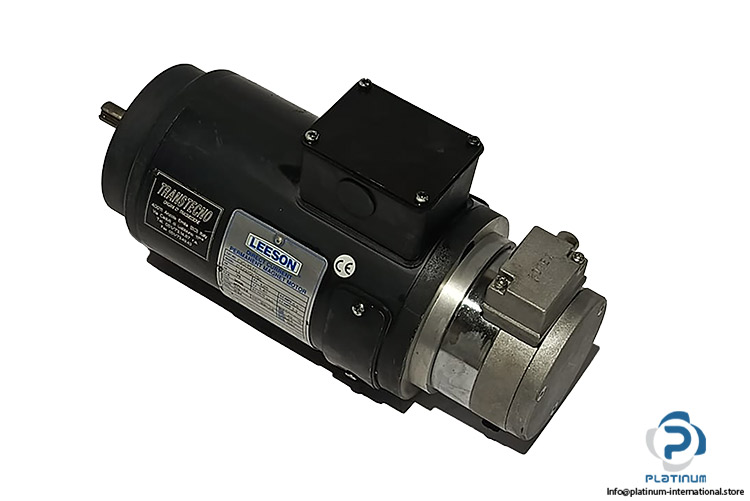

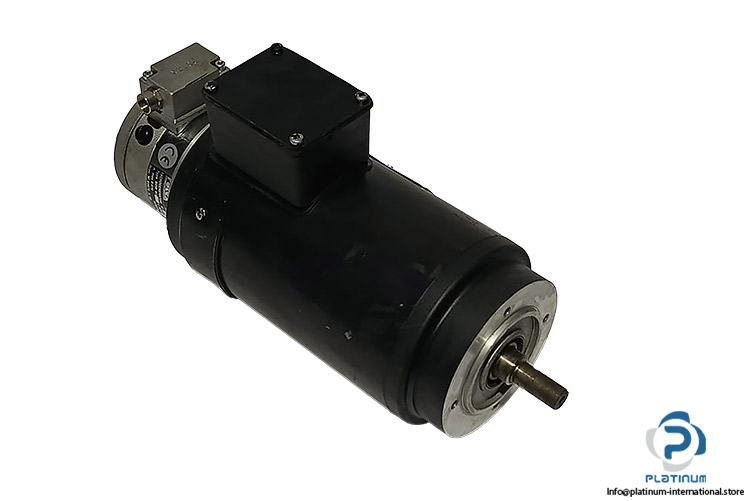

LEESON permanent magnet DC motor C142D28NZ5A with integrated ROTEX SDB60 tachogenerator, designed for accurate speed control and industrial drive applications.LEESON C142D28NZ5A Permanent Magnet Motor with ROTEX SDB60 Tachogenerator
This assembly combines a high-performance permanent magnet DC motor from LEESON with a precision ROTEX tachogenerator. It is designed for applications requiring accurate speed control, stable torque output, and reliable feedback in industrial drive systems.

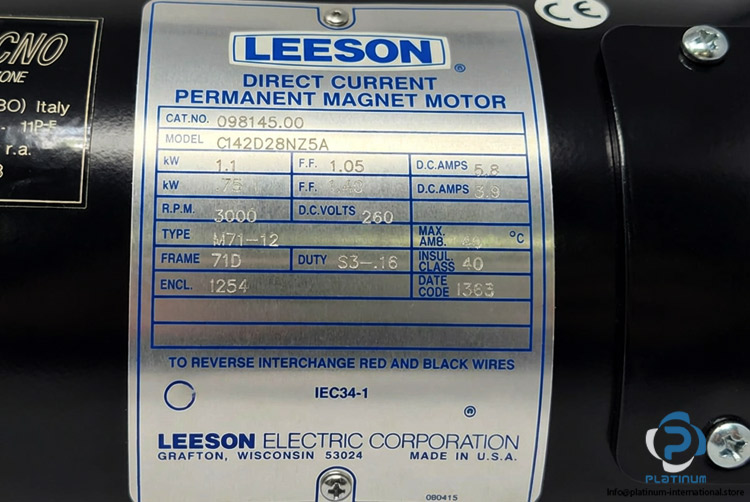

Manufacturer: LEESON
Type: Permanent Magnet Motor
Model: C142D28NZ5A (M71-12)
Cat. No.: 098145.00
Motor Technical Information
Frame: 71D
Rated Voltage: 260 VDC
Rated Current: 5.8 / 3.9 ADC
Rated Power: 1.1 / 0.75 kW
Rated Speed: 3000 r/min
Inclination: 1254
Max. Temperature: 40°C
Form Factor: 1.05 / 1.40
Duty: S3-0.16
Insulation Class: F3

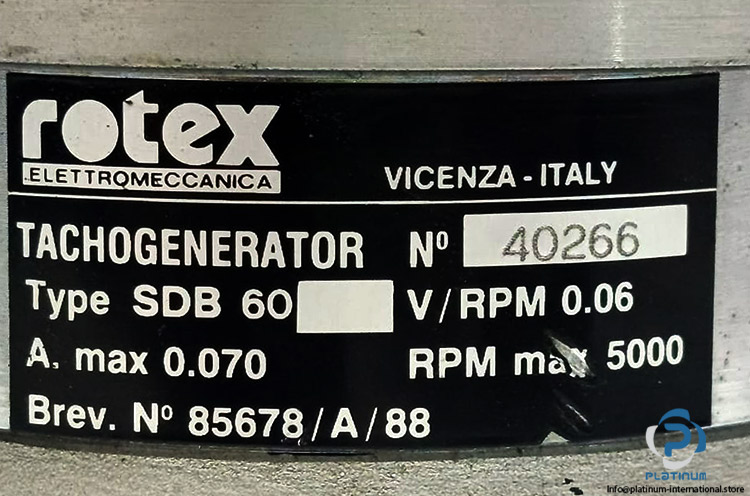

Attached Device: ROTEX Tachogenerator
Manufacturer: ROTEX
Type: Tachogenerator
Model: SDB60
No.: 40266
Code: 85678/A/88
Tachogenerator Technical Information
Output Voltage: 60 V
Max. Speed: 5000 RPM
Max. Current: 0.070 A
Nominal Current: 5 mA
Isolation Class: B
Protection Class: IP54
Number of Poles: 2
