Leine Linde RSI 503 507729-07 Incremental Encoder
Auf Lager1 EinheitVersandbereit
333,33$
INCREMENTAL ENCODER
Leine Linde RSI 503 incremental encoder with 2048 PPR resolution, 10 mm shaft, TTL output, IP67 protection, and high durability for industrial applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

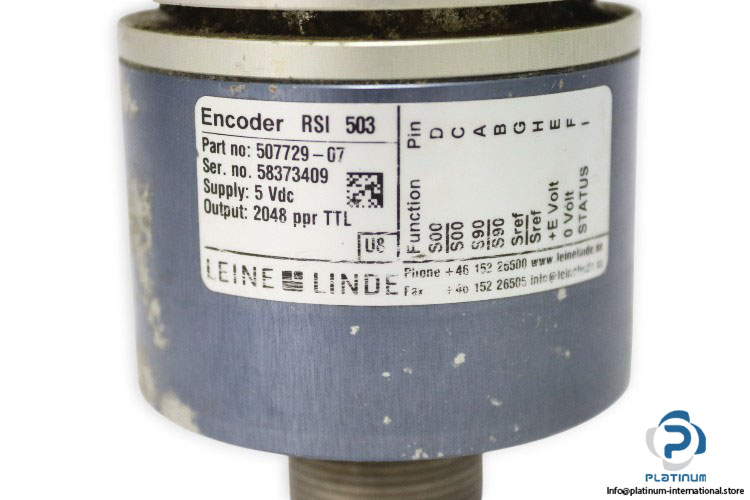

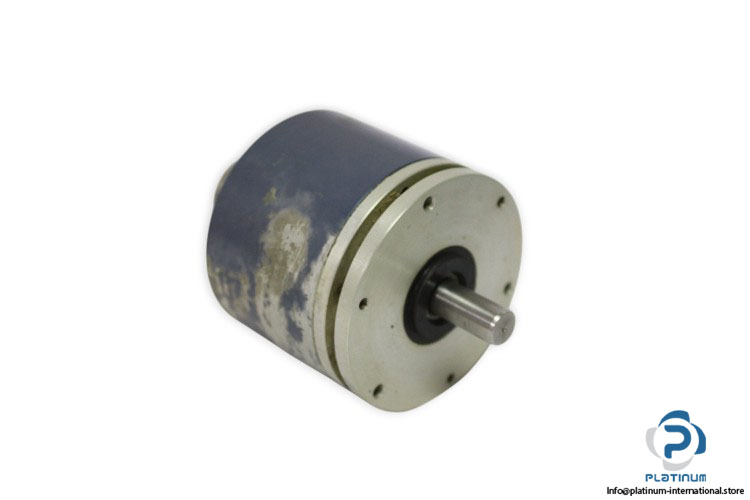

LEINE LINDE RSI503 INCREMENTAL ENCODER
The Leine Linde RSI 503 is a high-performance incremental encoder designed for precise speed and position feedback in demanding industrial environments. Built for durability and accuracy, it ensures reliable operation even under challenging conditions.
Manufacturer: LEINE LINDE
Type: Incremental Encoder
Model: RSI 503
Part No.: 507729-07
| Series | RSI |
| Shaft Diameter | 10 mm |
| Lines Per Resolution No. | 2048 PPR |
| Operating Voltage | 5 V DC |
| Load Current Max. | 20 mA |
| Rotational Speed Max. | 6000 rpm |
| Shaft Load (Axial/Radial) | 50 N / 60 N |
| Output Signal | TTL |
| Flange Diameter | 68 mm |

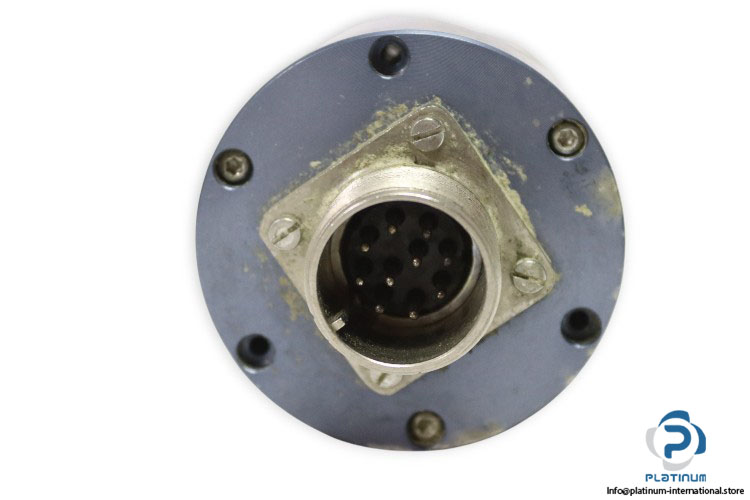

| Connection | MS Connector, 10-Pin, Axial |
| Protection Class | IP67 |
| Temperature Range | -40 / 70 °C |
| Length x Diameter | 76.5 x 60 mm |
