Leuze Electronic PM2-500V Robust Passive Deflecting Mirror
Neu
Auf Lager2 EinheitenVersandbereit
Passiver Umlenkspiegel LEUZE ELECTRONIC PM2-500V passiver Umlenkspiegel für Sicherheitslichtstrahlsysteme, mit 500 mm Strahlabstand, IP67 Schutz und Aluminiumgehäuse für industrielle Umgebungen.
AluminumbeamComponentConnectorDeflectingDeviceIndustrialIP67LeuzeLightM12MirrorPassivePM2-500VSafetySensor
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

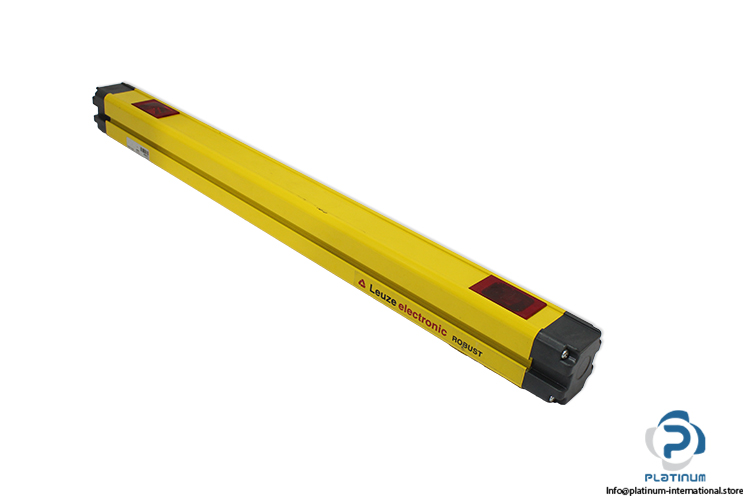

LEUZE ELECTRONIC PM2500V Passive Deflecting Mirror
The LEUZE ELECTRONIC PM2-500V passive deflecting mirror is designed for single-beam deflection of the protection beam in safety light beam systems. It enables flexible installation layouts and reliable beam redirection in industrial safety applications.
Manufacturer: LEUZE ELECTRONIC
Type: Passive Deflecting Mirror

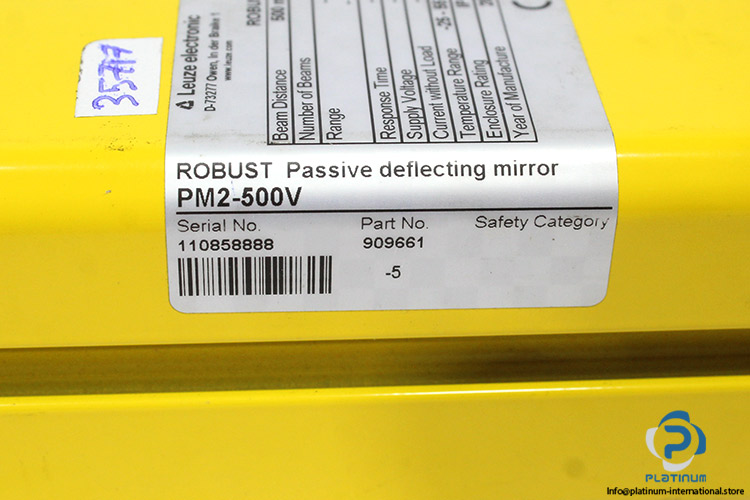

Model: PM2-500V
Part No.: 909661
Serial No: 110858888

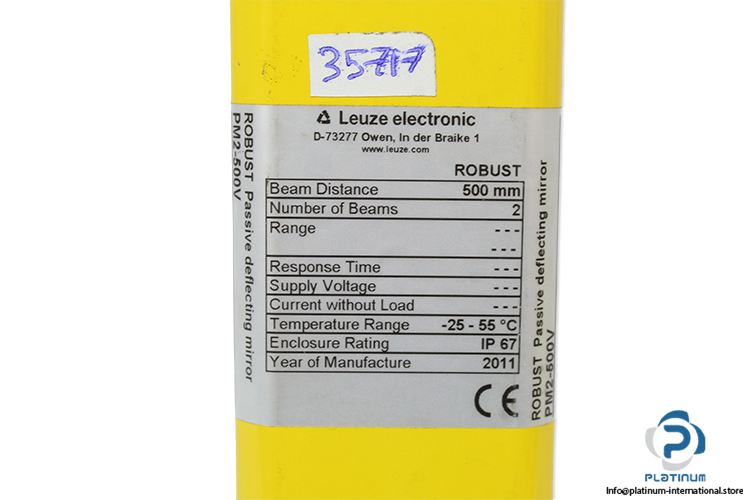

| Function | Deflecting Mirror for Single-Beam Deflection of the Protection Beam of Safety Light Beams |
| Beam Distance | 500 mm |
| Beams Number | 2 |
| Operating Range | 1,5 / 8 m |
| Material | Aluminum |
| Connection Type | Connector M12 5-Pin |
| Protection Class | IP67 |
| Ambient Temperature | -25 ... 55 °C |
| Dimensions | 52 x 684 x 57 mm |
