Leuze GS 06/66-2 Fork Photoelectric Sensor
Gabel-Lichtschranke Der Leuze GS06/66-2 Gabel-Lichtschranke bietet eine 880-nm-LED, 2 mm Schlitzbreite, 100 mA Ausgang und IP65 Schutz, ideal für präzise industrielle Sensoranwendungen.

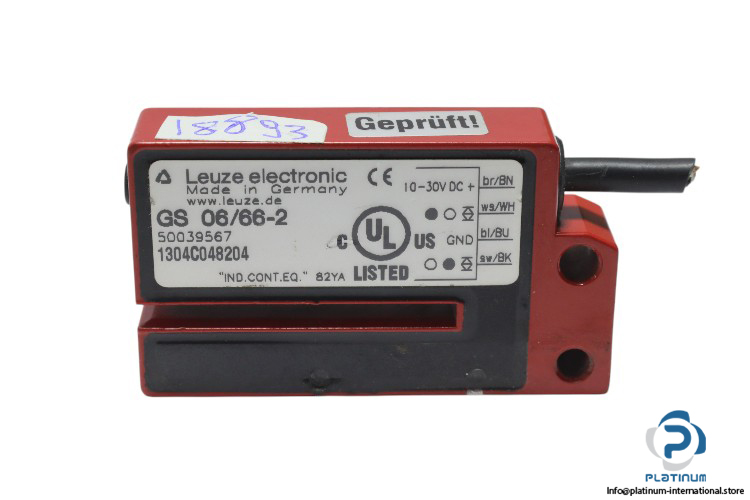

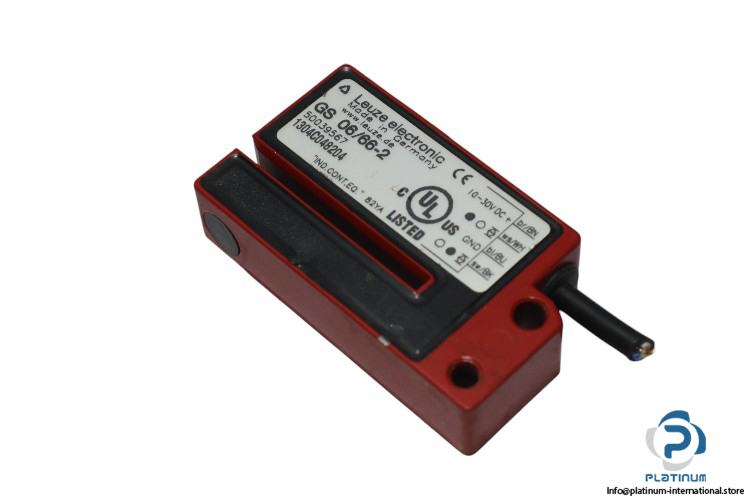

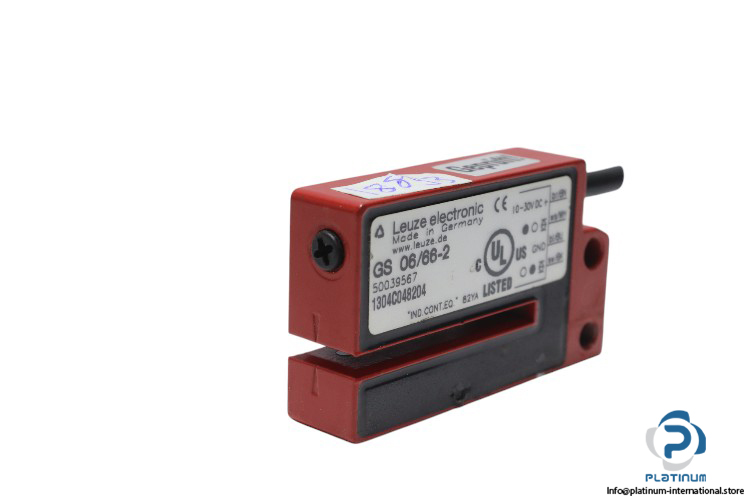

Leuze GS06/66-2 Fork Photoelectric Sensor
The **Leuze GS06/66-2 Fork Photoelectric Sensor** is designed for high-precision applications, offering **880 nm LED light source** and a **2 mm slot width** for accurate sensing. It operates with an **optical principle** and supports a **switching frequency** of **8000 Hz**. With an **operating voltage range** of **10 to 30 V DC** and **IP65 protection**, it ensures durability in demanding environments. The sensor also features **100 mA output current** and is capable of **operating at temperatures** from **-20 to 60°C**.
Manufacturer: Leuze
Type: Fork Photoelectric Sensor
Model: GS06/66-2
Part No.: 1304C048204
The **Leuze GS06/66-2 Fork Photoelectric Sensor** provides precise detection capabilities with robust construction, ensuring long-lasting reliability in a wide range of industrial applications.
| Light Source | LED |
| Wavelength | 880 nm |
| Slot Width | 2 mm |
| Principle of Physics | Optical |
| Switching Frequency | 8000 Hz |
| Open-Circuit Current | 40 mA |
| Output Current | 100 mA |
| Connector | M8, 4 Pins |
| Operating Voltage | 10 to 30 V DC |
| Operating Temperature | -20 to 60°C |
| Protection Degree | IP65 |
| Dimensions | 37.5 x 14 x 60 mm |
