Leuze K-D M8A-3P-5M-PVC Connection Cable
Neu
Auf Lager1 EinheitVersandbereit
Anschlusskabel LEUZE K-D M8A-3P-5M-PVC 3-poliges M8 weibliches Anschlusskabel mit 5 m Länge, PVC-Mantel und offener Endkonfiguration für industrielle Automatisierungsanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

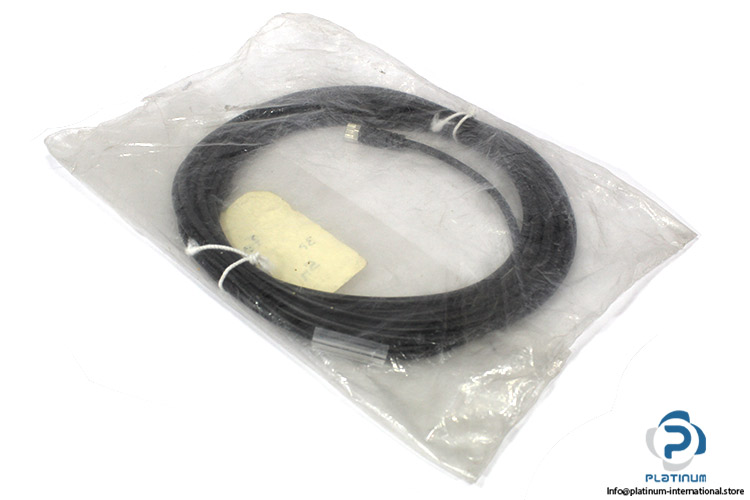

LEUZE K-D M8A-3P-5M-PVC Connection Cable
The LEUZE K-D M8A-3P-5M-PVC is a high-quality industrial connection cable designed for reliable signal and power transmission in automation systems. It features a 3-pin M8 female connector with screw locking and an open-end male wire configuration, ensuring secure and stable connectivity in industrial environments.
Manufacturer: LEUZE
Type: Connection Cable
Model: K-D M8A-3P-5M-PVC

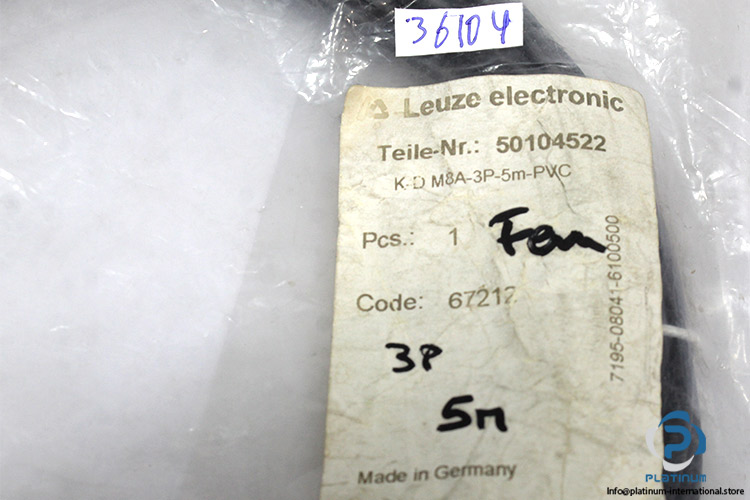

Part No.: 50104522
Code: 67217 / 7195-08041-6100500
Connector 1:
Connector 2:
Cable Properties:
| Cable Length | 5 m |
| Operating Voltage | 50 V AC / 60 V DC |
| Type of Connection | Connector |
| Thread Size | M8 |
| Number of Pins | 3-pin |
| Version | Axial |
| Connector LED | No |
| Lock | Screw fitting, nickel-plated diecast zinc, recommended torque 0.6 Nm, self-locking |
| Type of Connection | Open end |
| Number of Conductors | 3 Piece(s) |
| Sheathing Color | Black |
| Shielded | No |
| Silicone-Free | Yes |
| Sheathing Material | PVC |
| Bending Radius (Flexible Laying, Min.) | Min. 10 x cable diameter |
| Bending Radius (Stationary Laying, Min.) | Min. 5 x cable diameter |
| Ambient Temperature (Flexible Use) | -5 ... 80 °C |
| Ambient Temperature (Stationary Use) | -30 ... 80 °C |
