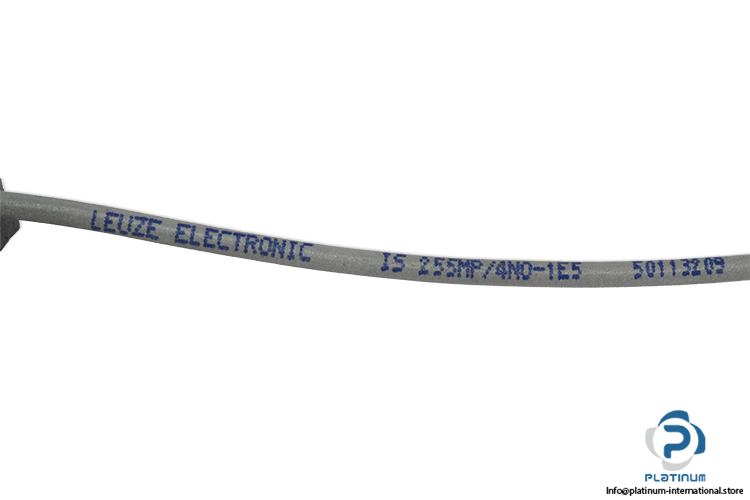

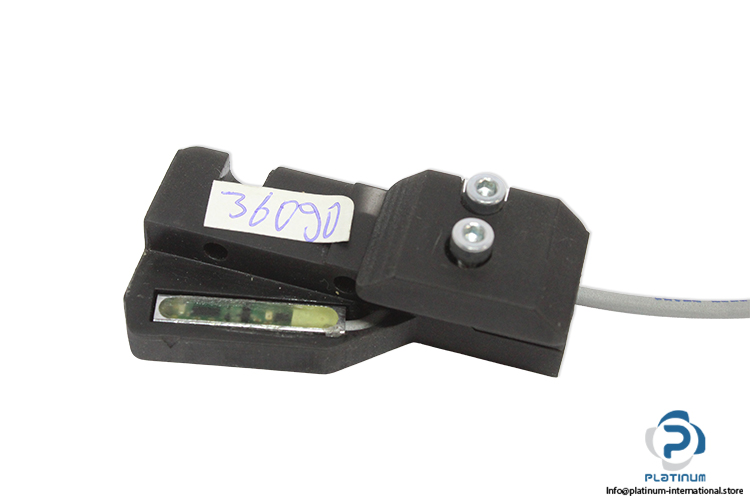

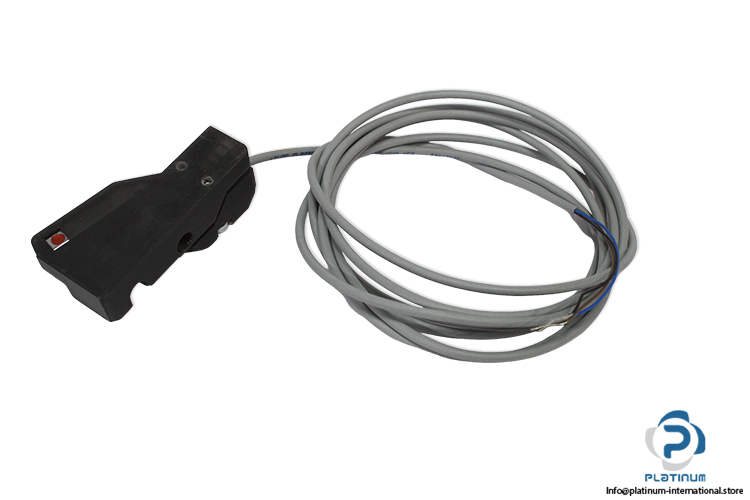

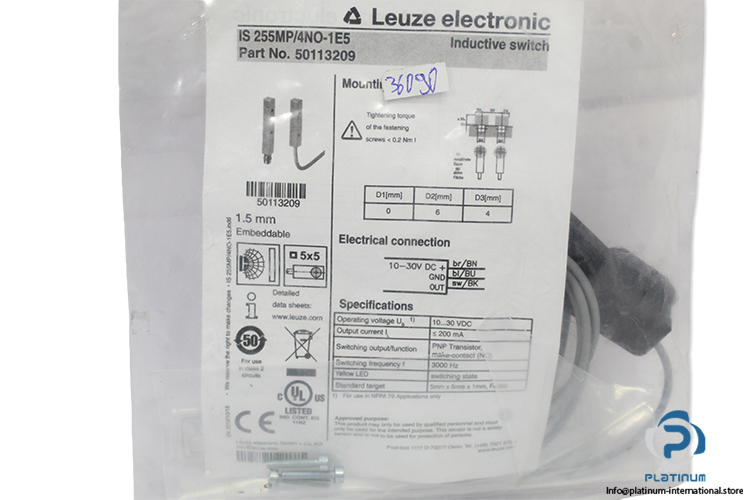

LEUZE IS 255MP/4NO-1E5 Inductive Switch
The LEUZE IS 255MP/4NO-1E5 is a compact cubic inductive switch from Series 255, engineered for precise and reliable object detection in industrial automation systems. Designed with robust metal housing and advanced protective circuitry, it ensures stable performance in demanding environments.
Manufacturer: LEUZE
Type: Inductive Switch
Model: IS 255MP/4NO-1E5
Part No.: 50113209
Series: 255
| Type, Operating Range Limit (Sn) | 1.5 mm |
| Operating Range (Sa) | 0 ... 1.2 mm |
| MTTF | 870 years |
| Protective Circuit | Inductive Protection, Polarity Reversal Protection, Short Circuit Protected |
| Supply Voltage (UB) | 10 ... 30 V DC |
| Residual Ripple | 0 ... 20 % From UB |
| Open-Circuit Current | 0 ... 10 mA |
| Temperature Drift (Max.) | 10 % Of Sr Over Entire Operating Temperature Range |
| Repeatability (Max.) | 2 % Of Sr For UB = 20 / 30 V DC, Ta = 23 °C ± 5 °C |
| Switching Hysteresis | 10 % |
| Number Of Digital Switching Outputs | 1 Piece |
| Voltage Type | DC |
| Switching Current (Max.) | 200 mA |
| Residual Current (Max.) | 0.1 mA |
| Voltage Drop | ‰¤ 2 V |
| Switching Element | Transistor, PNP |
| Switching Principle | NO (Normally Open) |
| Switching Frequency | 3,000 Hz |
| Readiness Delay | 10 ms |
| Function | Signal OUT, Voltage Supply |

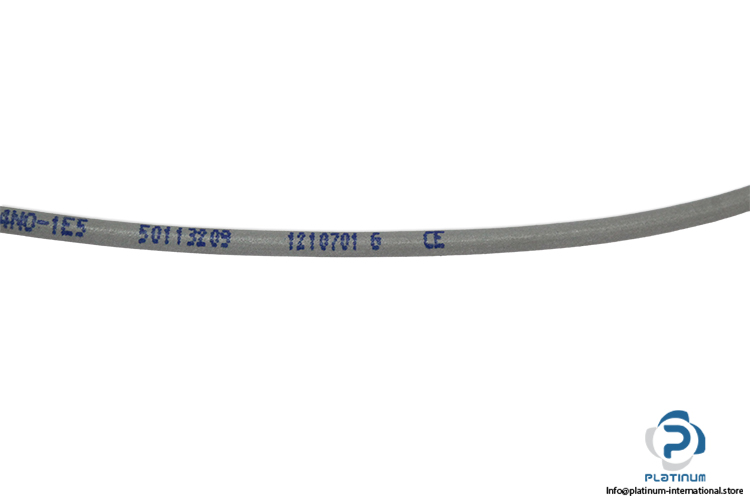

| Type Of Connection | Cable |
| Cable Length | 2,000 mm |
| Sheathing Material | PUR |
| Cable Color | Gray |
| Number Of Conductors | 3-Wire |
| Wire Cross Section | 0.055 mm² |
| Design | Cubic |
| Dimensions (W x H x L) | 5 mm x 5 mm x 25 mm |
| Type Of Installation | Embedded / Flush |
| Housing Material | Metal |
| Metal Housing | Chromed Brass |
| Sensing Face Material | Plastic, Polyester |
| Housing Color | Red (RAL 3000), Silver |
| Type Of Fastening | Through-Hole Mounting |
| Standard Measuring Plate | 5 x 5 mm², Fe360 |
| Type Of Display | LED |
| Number Of LEDs | 1 Piece |
| Ambient Temperature (Operation) | -25 ... 70 °C |
| Ambient Temperature (Storage) | -25 ... 70 °C |
| Degree Of Protection | IP 67 |
| Protection Class | III |
| Approvals | c UL US |
| EMC Test Standard | IEC 61000-4-2, IEC 61000-4-3 |
| Suitable For | For Illustration Purposes Only |
