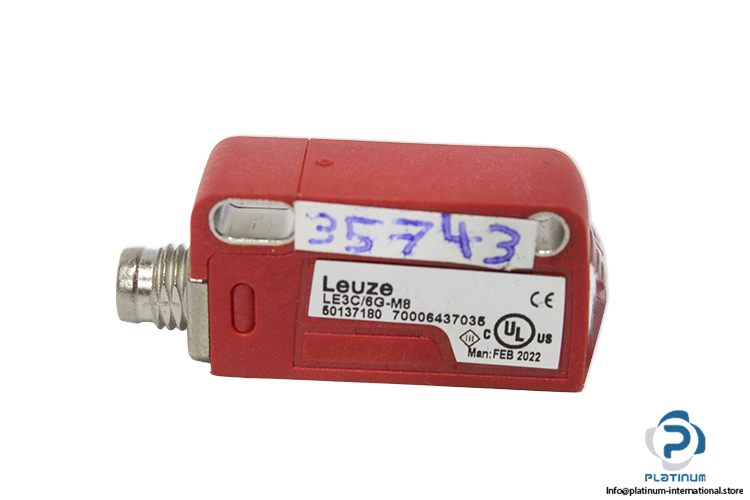

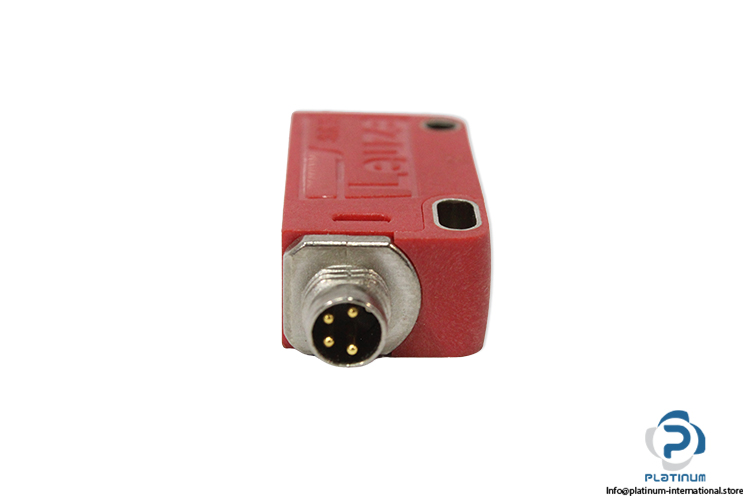

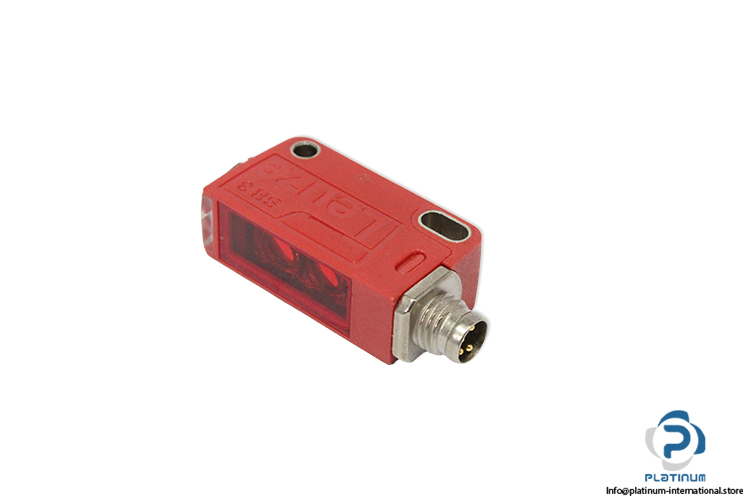

Leuze LE3C/6G-M8 Throughbeam Sensor Receiver
Durchlicht-Sensor-Empfänger der LEUZE 3C Serie mit einem Erfassungsbereich von 0,05" bis 8,5 m, roter LED-Lichtquelle, Push-Pull-Transistorausgang, M8-Stecker und IP67/IP69K-Schutz für industrielle Automatisierungsanwendungen.
LEUZE LE3C/6G-M8 Throughbeam Sensor Receiver
The LEUZE LE3C6GM8 throughbeam sensor receiver from the 3C series is designed for precise and reliable object detection in industrial automation environments. Featuring a red LED light source and push-pull transistor output, it ensures stable performance across extended sensing distances and harsh operating conditions.
Manufacturer: LEUZE
Type: Throughbeam Sensor Receiver
Model: LE3C/6G-M8
Part No.: 50137180
Ref. No.: 70006437035
Series: 3C
| Sensing Range | 0.05 ... 8.5 m |
| Light Source | LED, Red |
| Operating Voltage | 10 / 30 V DC |
| Current Consumption (Max.) | 20 mA |
| Switching Output Type | Digital Switching Output |
| Switching Element | Transistor, Push-Pull |
| Switching Principle | Light Switching (PNP) / Dark Switching (NPN) |
| Material | Plastic |
| Electrical Connection | Connector, M8, 4-Pin |
| Protection Class | IP67 / IP69K |
| Operating Temperature | -40 / 60 °C |
| Dimensions | 11.4 x 34.2 x 18.3 mm |
