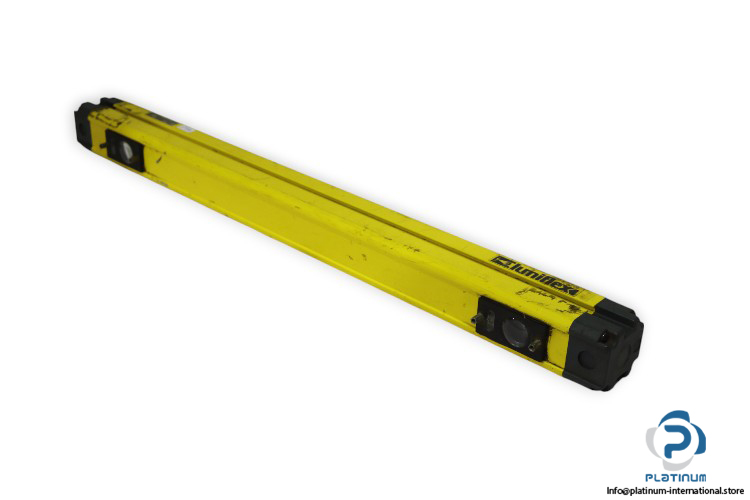

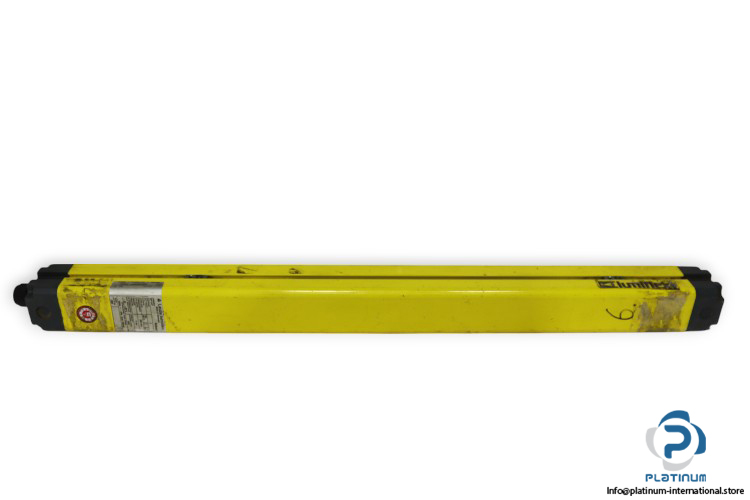

Leuze RRT 22.1 Multi-Beam Safety Light Barrier Transceiver

Manufacturer: LEUZE

Type: Multi-Beam Safety Light Barrier Transceiver

Model: RRT 22.1

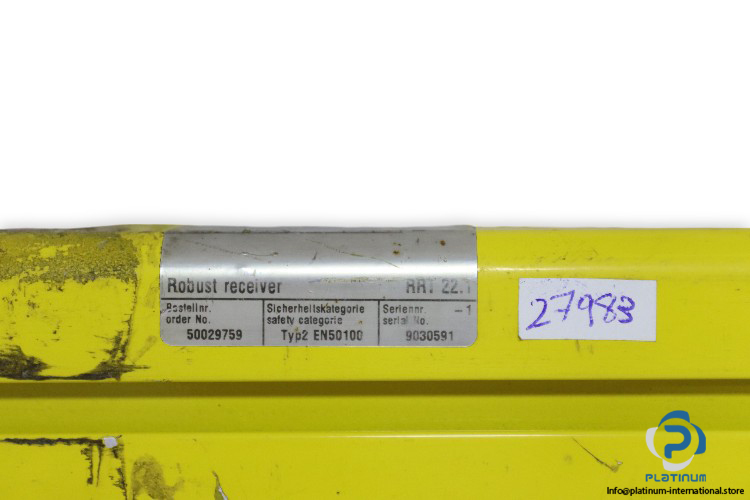

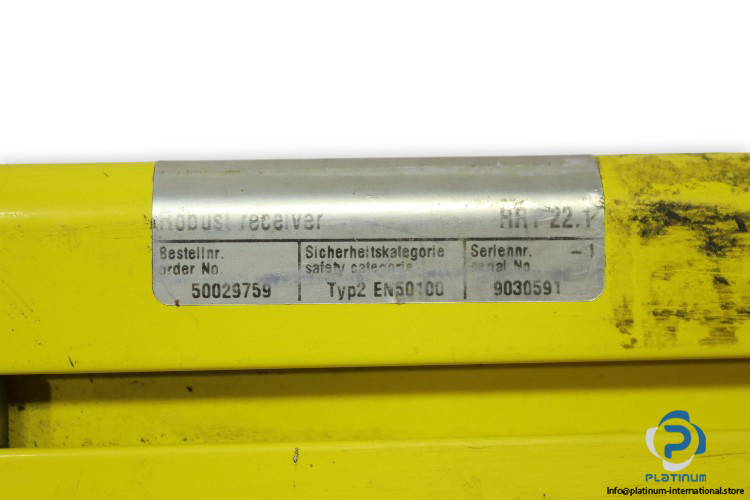

Order No.: 50029759

Serial No.: 9030591

The LEUZE RRT 22.1 multi-beam safety light barrier transceiver is designed for reliable personnel and object protection in industrial automation and safety-critical zones. With a robust sensing range up to 50 meters, it provides dependable detection using two beams and a rapid 5 ms response time. Its compact design, IP67 enclosure rating, and wide temperature tolerance make it ideal for harsh environments. Engineered for high performance in conveyor systems, material handling, and access control applications.

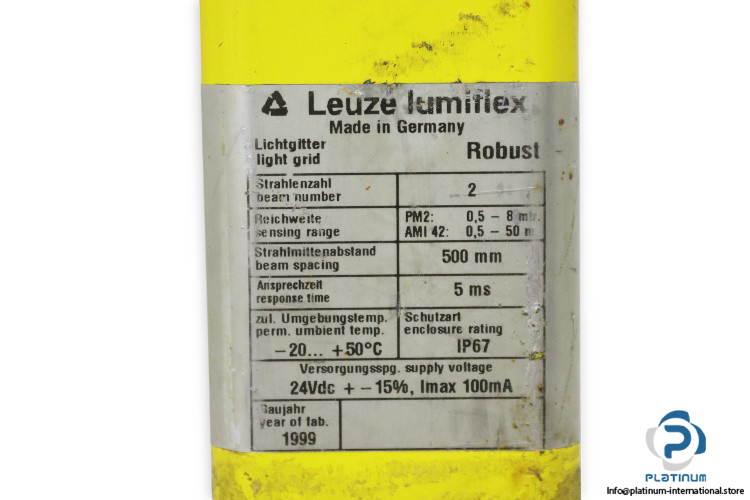

Technical Specifications:

• Supply Voltage: 24V DC
• Current Consumption: Max 100 mA
• Beam Number: 2
• Sensing Range: PM2: 0.5 “ 8 m / AMI42: 0.5 “ 50 m
• Beam Spacing: 500 mm
• Response Time: 5 ms
• Enclosure Rating: IP67
• Ambient Temperature: -20°C to +50°C
