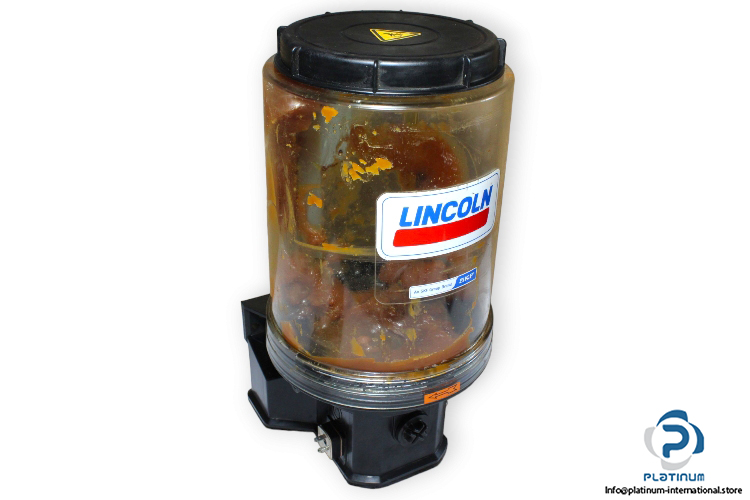

Lincoln P203-8XLBO-2K6-24-2 Lubrication Pump

Manufacturer: SKF LINCOLN
Type: Lubrication Pump

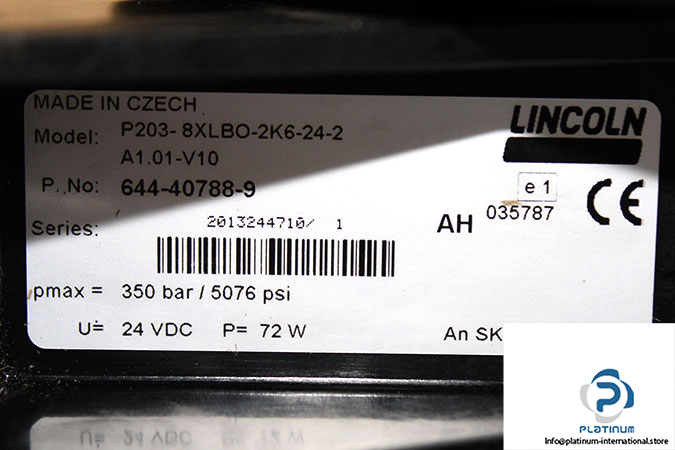

Model: P203-8XLBO-2K6-24-2
Part No.: 644-40788-9

Operating temperature: DC   –40 … +70 °C
Operating pressure : 350 bar
Lubricant grease: up to NLGI 2
oil with operating viscosity: 40–1500 mm2/s
Outlets: up to 3
Metering quantity depending on pump element: 0,6-4,4 cm3/min / outlet
Reservoir capacity: 2; 4; 8; 11 and 15 l
Outlet connection: G 1/4
Operating voltage: 24 V DC
