Motion Control Rotary Encoders

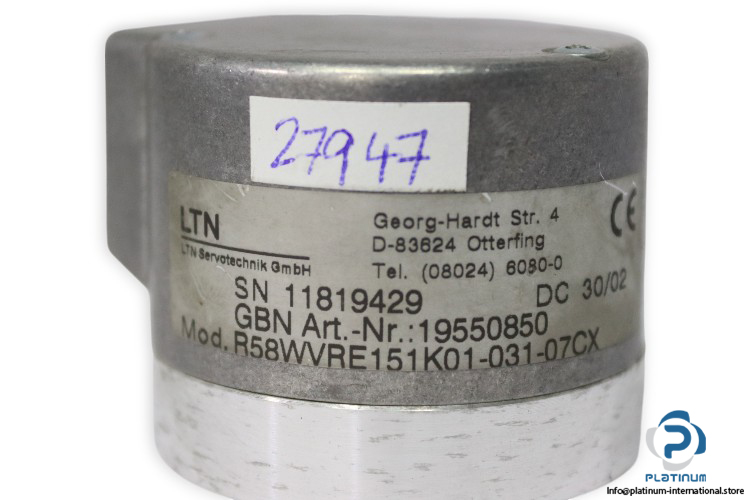

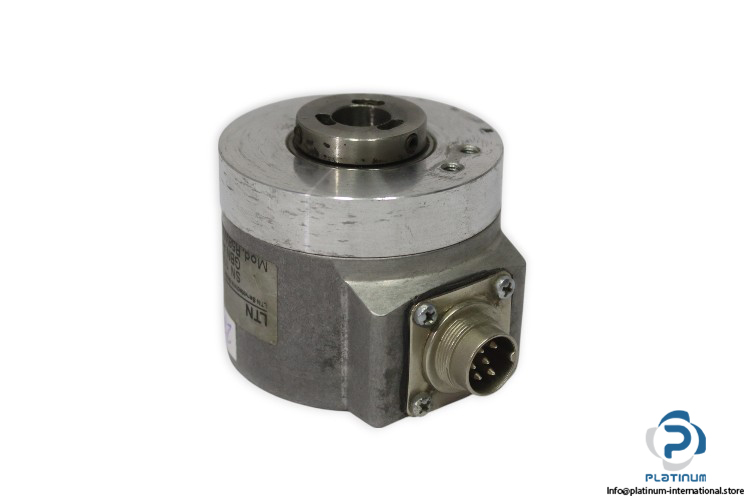

LTN R58WVRE151K01-031-07CX Encoder

Name: LTN R58WVRE151K01-031-07CX ENCODER
SKU: 1077919
Price: 88.88 USD
Availability: InStock

ltn-R58WVRE151K01-031-07CX-encoder-(used)

ltn-R58WVRE151K01-031-07CX-encoder-(used)-1

Gebraucht

Auf Lager8 EinheitenVersandbereit

88,88$

High-performance LTN rotary encoder with 17 mm hollow shaft, 58 mm housing, and 7V DC input. Designed for industrial automation with 5,000 rpm speed tolerance and -40 to +100°C temperature range.

Hersteller

LTN

SKU

1077919

Kategorie

Rotary Encoders

Zustand

Gebraucht

11819429 17 19550850 58 7V Art Automation Control dc diameter Encoder High hollow Industrial LTN mm Motion NO R58WVRE151K01-031-07CX SER shaft Speed

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: LTN

Type: Encoder

Model: R58WVRE151K01-031-07CX

Art No.: 19550850

Ser No.: 11819429

Technical Specifications:

Hollow Shaft Diameter: max. 17 mm
Outer Diameter: 58 mm
Input Voltage: 7V DC
Input Current: 65 mA @ 7 V & 5 kHz
Max. Permissible Speed: 5,000 rpm
Operating Temperature: -40 to +100 °C

This LTN rotary encoder delivers high-resolution position feedback ideal for industrial motion control systems. Its compact 58 mm body and 17 mm hollow shaft design ensure easy integration into tight installations. Operating reliably under extreme temperatures and high-speed rotations, this encoder offers exceptional signal stability, making it suitable for demanding automation and servo applications.
