Madler UCF 206 Four-Bolt Square Flange Unit

Name: MADLER UCF 206 FOUR-BOLT SQUARE FLANGE UNIT
SKU: 1086531
Availability: LimitedAvailability

madler-UCF-206-four-bolt-square-flange-unit-new-carton

madler-UCF-206-four-bolt-square-flange-unit-new-carton-1

madler-UCF-206-four-bolt-square-flange-unit-new-carton-2

madler-UCF-206-four-bolt-square-flange-unit-new-carton-3

Neu

Auf Lager1 EinheitVersandbereit

Vier-Schrauben-Quadratflansch-Einheit Madler UCF 206 Flansch-Einheit mit UC 206 Lager und F206 Gehäuse. Merkmale: 30 mm Bohrung, 108 mm Länge und Belastungswerte von 15,1 kN dynamisch und 10 kN statisch.

Hersteller

MADLER

SKU

1086531

Kategorie

Plummer Block Housing Units

Zustand

Neu

206 30 bearing bore F206 Flange Four-Bolt High Housing Industrial Load Madler mm Square UC UCF Unit

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

MADLER UCF 206 FOUR-BOLT SQUARE FLANGE UNIT

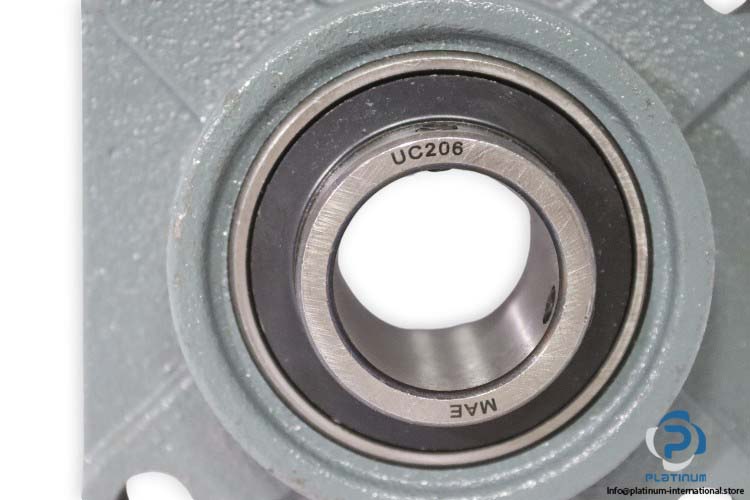

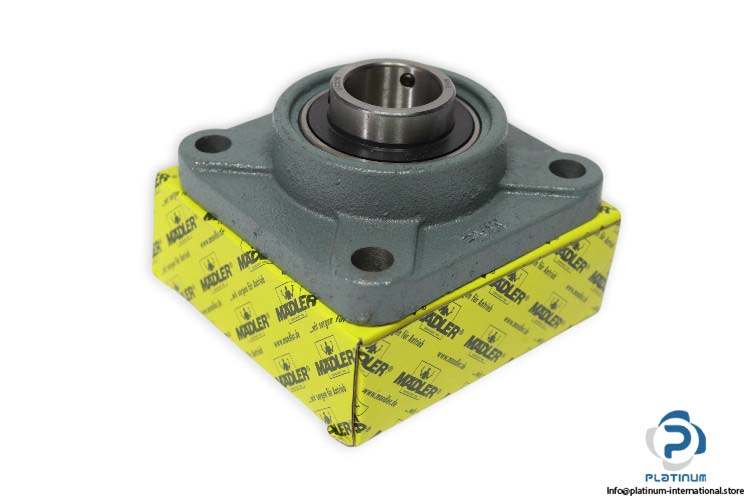

The Madler UCF 206 is a robust four-bolt square flange unit designed for reliable bearing support in industrial applications. Built with a UC 206 bearing and F206 housing, it provides excellent load capacity and durability.

Manufacturer: Madler

Type: Four-Bolt Square Flange Unit

Model: UCF 206

Bearing No.: UC 206

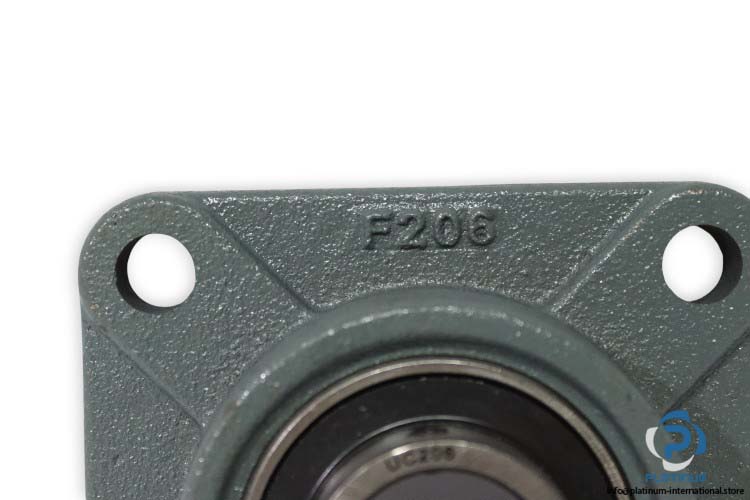

Housing No.: F206

Bearing-Load Rating:

Bore Diameter	30 mm
Overall Length	108 mm
Housing Overall Width	31 mm
Distance Between Attachment Bolts	83 mm
Overall Unit Width	40.2 mm
Dynamic	15.1 kN
Static	10 kN
