Bearings Housing Units Plummer Block Housing Units

Madler UCF 210 Four-Bolt Square Flange Unit

Name: MADLER UCF 210 FOUR-BOLT SQUARE FLANGE UNIT
SKU: 1086530
Availability: LimitedAvailability

madler-UCF-210-four-bolt-square-flange-unit-new-carton

madler-UCF-210-four-bolt-square-flange-unit-new-carton-1

madler-UCF-210-four-bolt-square-flange-unit-new-carton-2

Neu

Auf Lager14 EinheitenVersandbereit

Vier-Schrauben-Quadratflansch Einheit Madler UCF 210 Quadratflansch Einheit mit 50 mm Bohrung, 143 mm Gesamtlänge und 111 mm Schraubenabstand. Traglast: 27,1 kN dynamisch, 19,7 kN statisch.

Hersteller

MADLER

SKU

1086530

Kategorie

Plummer Block Housing Units

Zustand

Neu

19.7 210 27.1 50 bearing bore Dynamic F210 Flange Four-Bolt Housing Industrial kN Load Madler mm Square Static UC UCF Unit

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

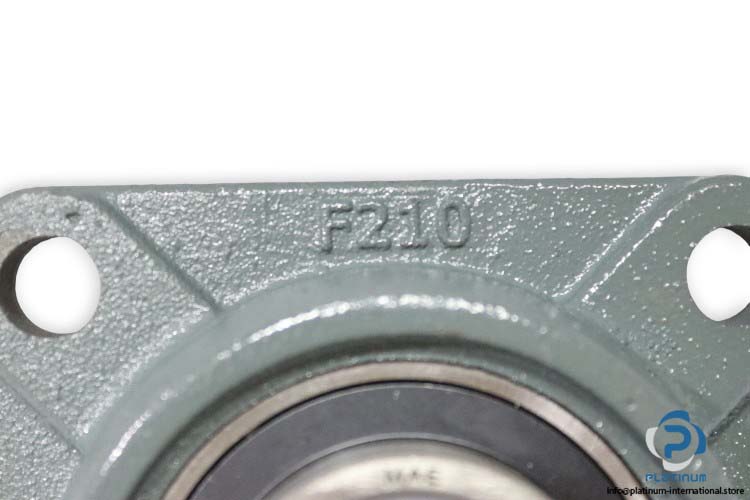

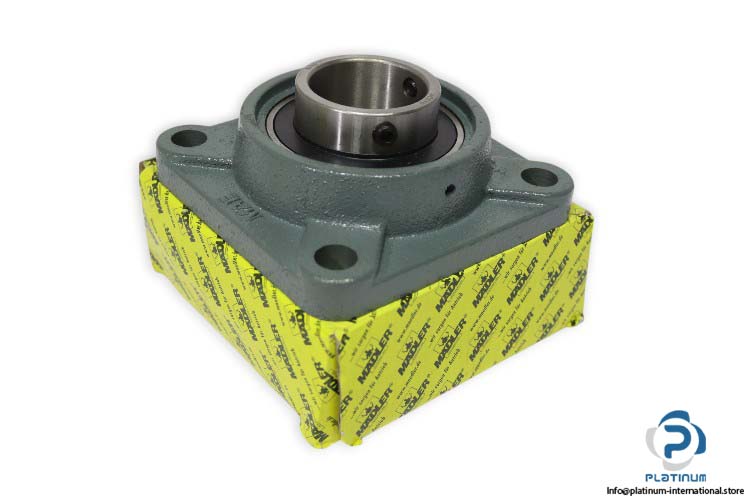

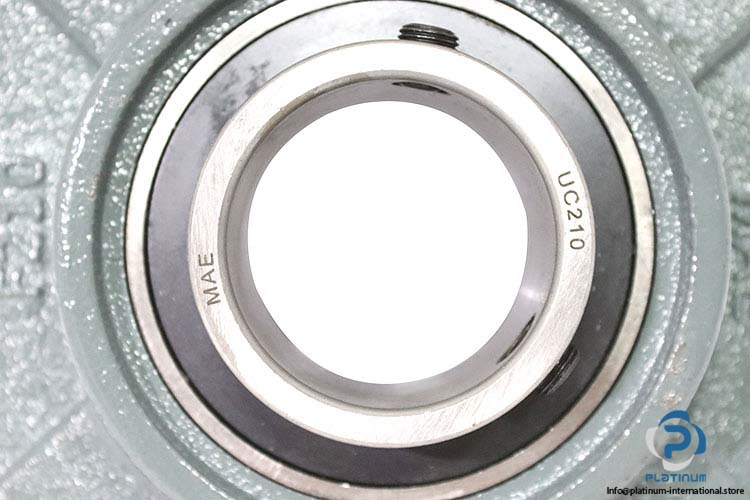

MADLER UCF 210 FOUR-BOLT SQUARE FLANGE UNIT

The Madler UCF 210 Four-Bolt Square Flange Unit is a robust bearing housing designed for secure mounting and reliable operation in industrial applications. With precision engineering, this unit delivers strength, stability, and long-lasting performance under demanding conditions.

Manufacturer: Madler

Type: Four-Bolt Square Flange Unit

Model: UCF 210

Bearing No.: UC 210

Housing No.: F210

Bore Diameter	50 mm
Overall Length	143 mm
Housing Overall Width	40 mm
Distance Between Attachment Bolts	111 mm
Overall Unit Width	54.6 mm
Bearing-Load Rating	Dynamic: 27.1 kN, Static: 19.7 kN
