Magnetrol ES1-511Y-S00 Ultrasonic Level Switch
Gebraucht
Auf Lager1 EinheitVersandbereit
Ultraschallpegel-Schalter MAGNETROL Echotel ES1-511Y-S00 Ultraschallpegel-Schalter, betrieben mit maximal 240V AC, mit Ultraschall-Spaltmessungstechnologie für Flüssigkeitserkennung.
240VACDetectionEchotelES1-511Y-S00GapIndustrialIP65LevelLiquidMagnetrolMeasurementProcessSensorSwitchUltrasonic
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

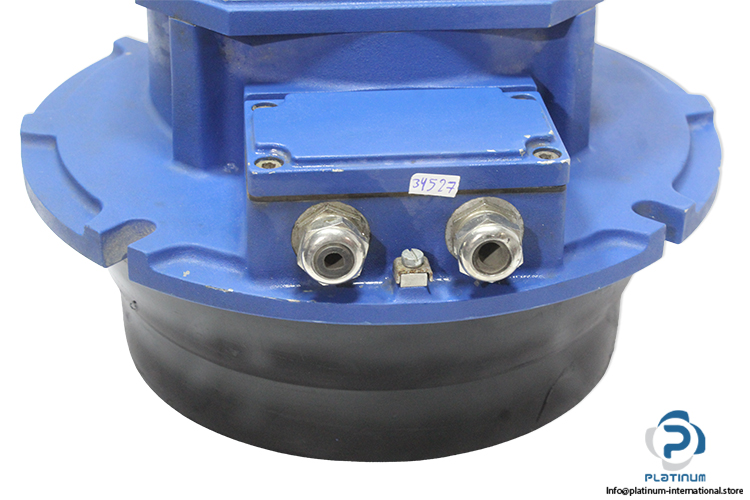

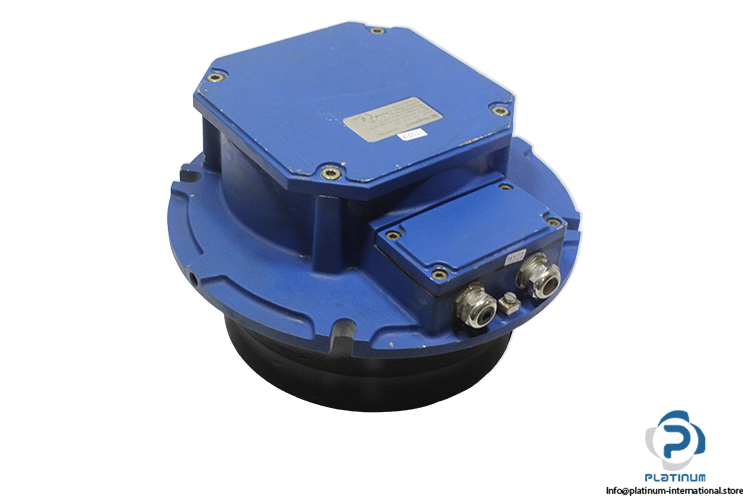

MAGNETROL Echotel ES1-511Y-S00 Ultrasonic Level Switch
The MAGNETROL Echotel ES1-511Y-S00 is an ultrasonic level switch designed for reliable liquid presence detection using gap-based ultrasonic measurement technology. It provides stable switching performance in industrial process environments.

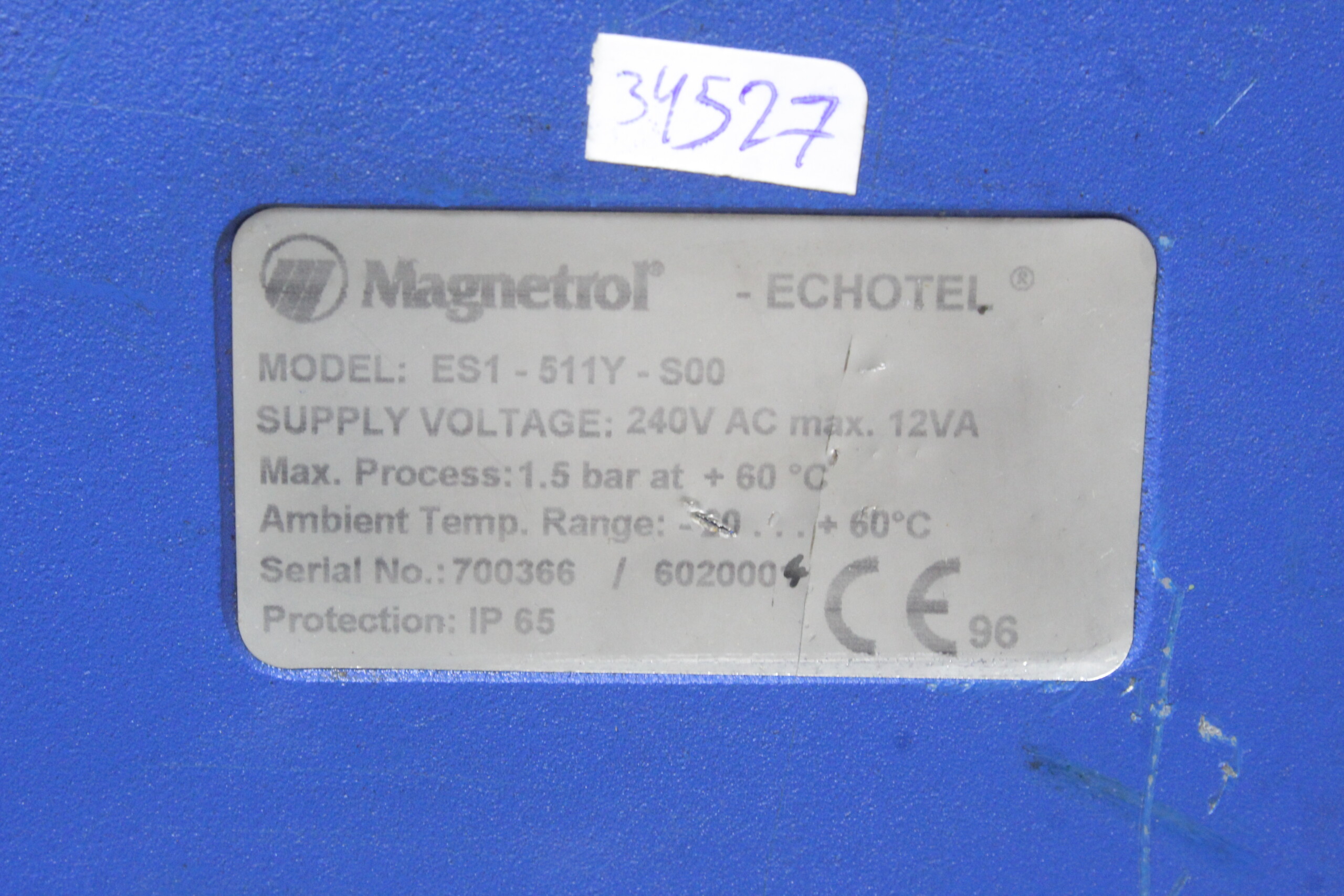

Manufacturer: MAGNETROL Echotel
Type: Ultrasonic Level Switch
Model: ES1-511Y-S00
S NO: 700366/602000
| Supply Voltage | 240V AC max. |
| Power Consumption | 12VA |
| Process Limits | Maximum pressure of 1.5 bar at +60 °C |
| Ambient Temperature Range | -20 °C to +60 °C |
| Protection Rating | IP 65 |
| Technology | Ultrasonic gap measurement”pulses are transmitted across a gap in the sensor; the signal is received when liquid is present and attenuated when the gap is dry |
