Merlin Gerin Vigi C60 26645 ADD-ON Residual Current Device
Add-On Fehlerstromschutzschalter Merlin Gerin VIGIC60 Erdschluss-Zusatzblock aus der Multi9-Serie, entwickelt zur Verwendung mit Leitungsschutzschaltern, um zuverlässigen Schutz gegen Elektroschock und Brandrisiken durch Fehlströme zu bieten. Empfehlung: Ein intelligentes Upgrade für Leitungsschutzschaltersysteme zur Verbesserung der elektrischen Sicherheit und des Schutzes.

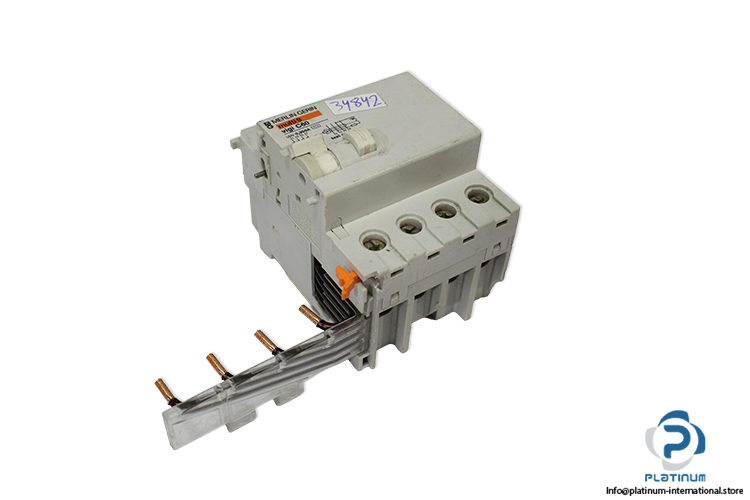

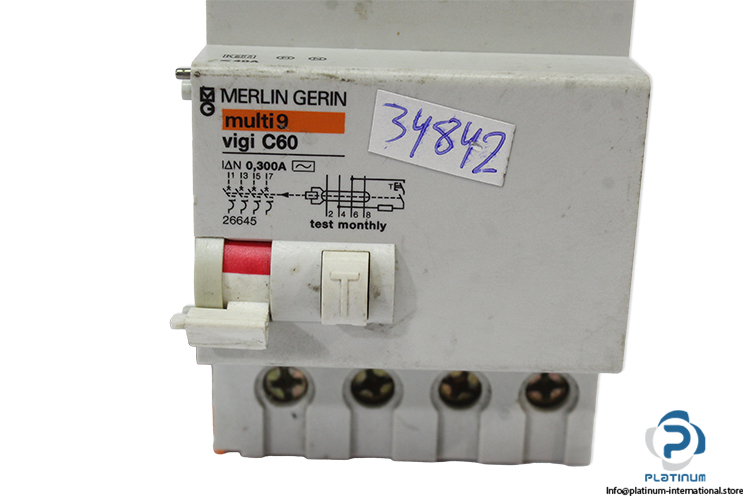

Merlin Gerin VIGIC60 Add-On Residual Current Device
The Merlin Gerin VIGIC60 is an add-on residual current device (earth leakage add-on block) from the Multi9 product line, designed to enhance electrical protection by detecting earth leakage currents. This device works in combination with compatible MCBs to provide reliable protection against electric shock and fire hazards caused by leakage currents.
Manufacturer: Merlin Gerin
Type: Add-on Residual Current Device / Earth Leakage Add-on Block
Model: VIGIC60
Product Line: Multi9
Code: 26645
Applications:
Electrocution Protection (In Accordance With Installation Standards IEC 364 And National Standards)
Protection Against Fire Risk Due To Leakage Currents Into Building Materials

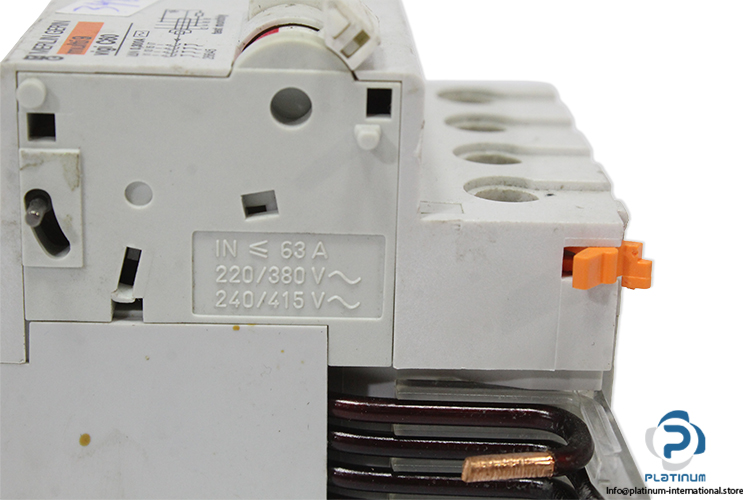

| Rated Current | Max. 63 A |
| Voltage | 220/380 V AC |
| Voltage | 240/415 V AC |
| Frequency | 50/60 Hz |
| Sensitivity | 300 mA |
| Number Of Poles | 4 Pole |
| Automatic Reset | VIGI Is Reset By MCB Toggle |
| Connection | Devices Tunnel Terminals For Cables Up To 35mm² |
| Recommendation | Ideal for upgrading existing circuit breakers with reliable earth leakage protection, ensuring improved electrical safety for industrial and commercial installations. |
