MITUTOYO LGK-110 Slim LINEAR GAGE
Neu
Auf Lager1 EinheitVersandbereit
Schlanker Linear-Messschieber Der Mitutoyo LGK110 schlanker Linear-Messschieber bietet eine Auflösung von 1 µm, einen Messbereich von 10 mm und eine schnelle Ansprechgeschwindigkeit von 1500 mm/s, ideal für präzise Messungen in Industrieumgebungen.
110BallbearingDetectionEncoderGageHighIndustrialLinearMeasurementMeasuringmmPhotoelectricPositionPrecisionRangeResolutionSensortoolsµm
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

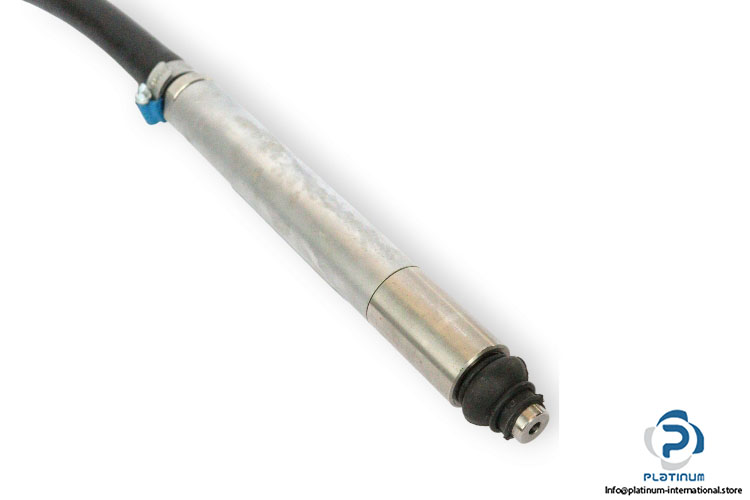

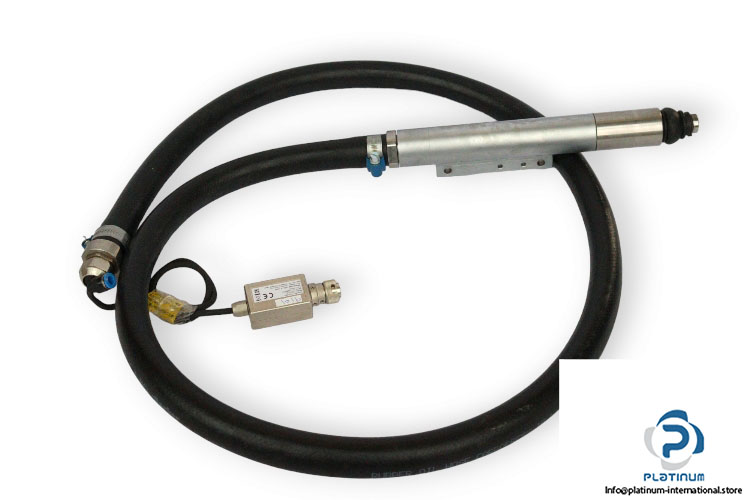

Mitutoyo LGK110 Slim Linear Gage
The Mitutoyo LGK110 Slim Linear Gage provides high precision with a 1 µm resolution and a measuring range of 10 mm. Designed for accurate position detection, it features a transmission-type photoelectric linear encoder for fast and reliable measurements in industrial applications.

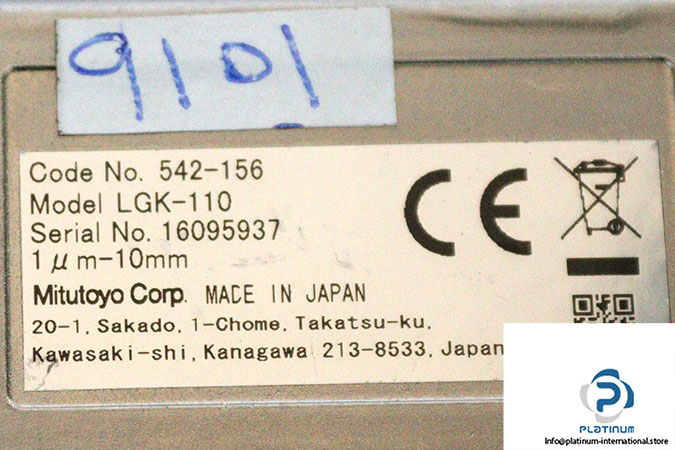

Manufacturer: Mitutoyo
Type: Slim Linear Gage
Model: LGK110
Code No: 542-156
Ref No: 16095937
Technical Data:
- Resolution: 1 µm
- Measuring Range: 10 mm
- Position-detection Sensor: Transmission-type photoelectric linear encoder
- Max. Response Speed: 1500 mm/Sec
- Signal Pitch: 4 µm
- Stem Size: ø8 mm
- Bearing Type: Linear ball bearing
- Connecting Cable Length: 2 m
- Connector Plug Used: RM12BPE-6PH (HIROSE)
- Operating Temperature: 0 / 40 °C
- Degree of Protection: IP66
- Dimensions: dia 12 x 125.5 x (M9.5 x 0.5) mm
