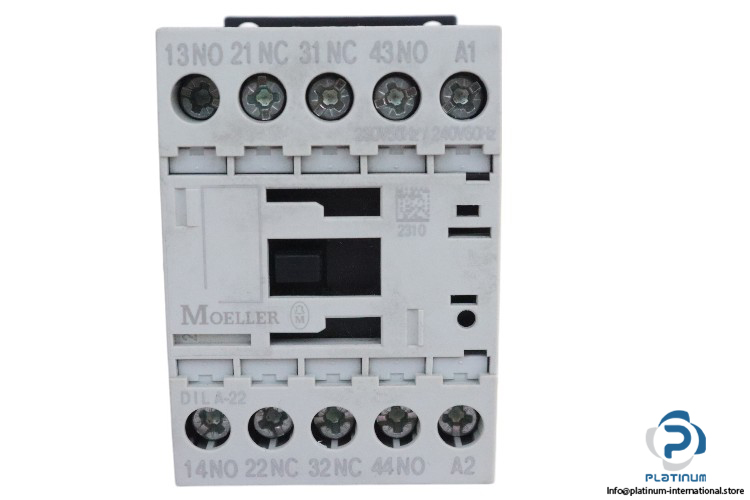

Moeller DILA-22 Contactor Relay
Neu
Auf Lager4 EinheitenVersandbereit
Moeller / Eaton Schütz DILA22 mit 230 V AC Spulenspannung, 16 A thermischer Stromstärke und 4 A Nennbetriebsstrom bei 400 V AC. Kompakt und zuverlässig, mit IP20 Schutz und Schraubklemmen für einfache Installation.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

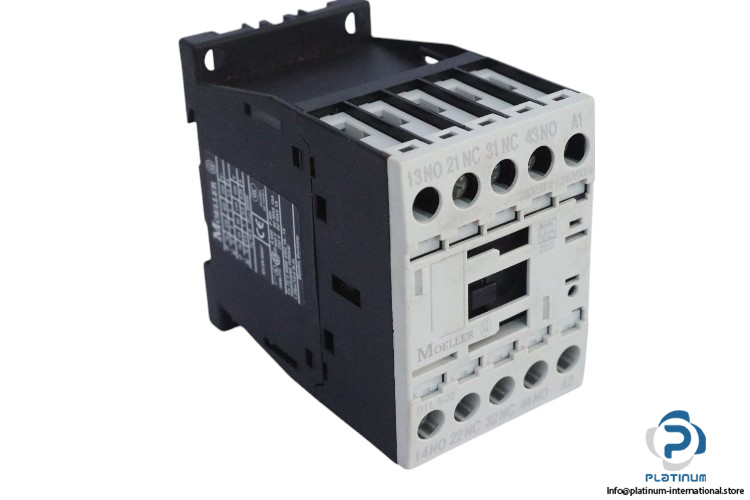

Moeller / Eaton Contactor Relay DILA22
Moeller / Eaton Contactor Relay DILA22 is a high-performance contactor relay designed for a wide range of industrial applications. Built for reliability and long-term performance, this relay offers a variety of operational features, including multiple contact configurations and excellent voltage withstand capability. Below are the key technical specifications:
- Manufacturer: Moeller / Eaton
- Type: Contactor Relay
- Model: DILA22
- Series: DILA

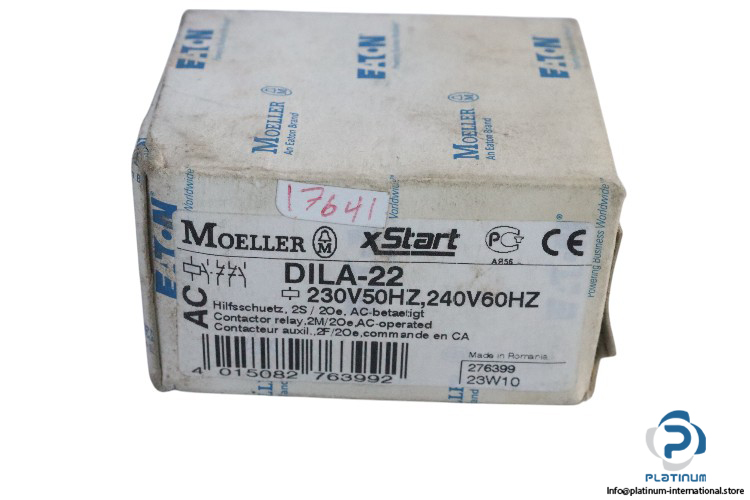

- Part No.: 276399 23W10
- EAN No.: 4015082763992

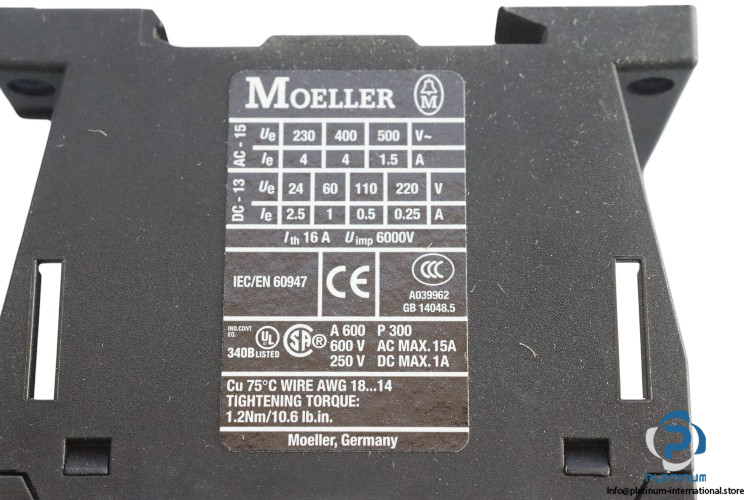

Technical Data:
- Coil Voltage: 230 V AC @ 50 Hz, 240 V AC @ 60 Hz
- Conventional Thermal Current (Ith): 16 A at 60°C (3-pole, open)
- Rated Operational Current Ie (AC-15): 4 A at 400 V AC
- Rated Operational Current Ie (DC-13): 2.5 A at 24 V DC
- Rated Impulse Withstand Voltage (Uimp): 6000 V AC
- Contact: 2 Normally open, 2 Normally closed
- Mounting Method: DIN-rail / screw
- Standard: IEC/EN 60947
- Connection: Screw terminals
- Degree of Protection: IP20
- Pollution Degree: 3
- Operating Temperature: -25 to 60 degrees Celsius
- Dimensions: 75 x 68 x 45 mm
