Moeller IS-63/4 Disconnector Switch
Neu
Auf Lager1 EinheitVersandbereit
Disconnector Switch
The Moeller IS-63/4 is a four-pole disconnector switch with a 63 A rating and 12.5 kA switching capacity. Compact and reliable, it’s ideal for industrial power isolation applications.12.5kA63ACapacityDeviceDisconnectDisconnectorElectricalFour-PoleIndustrialisolationIsolatorModularMoellerPowerSwitchSwitchgear
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

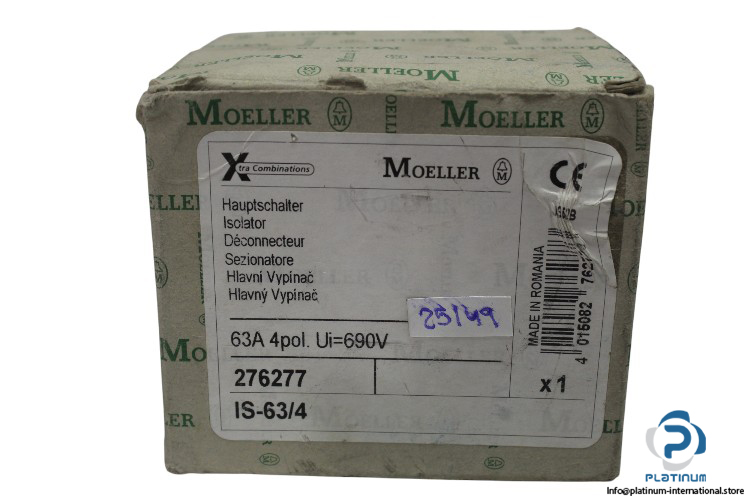

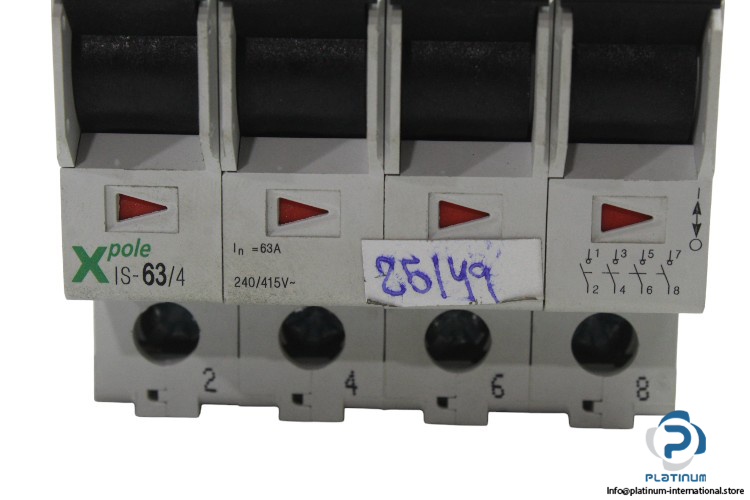

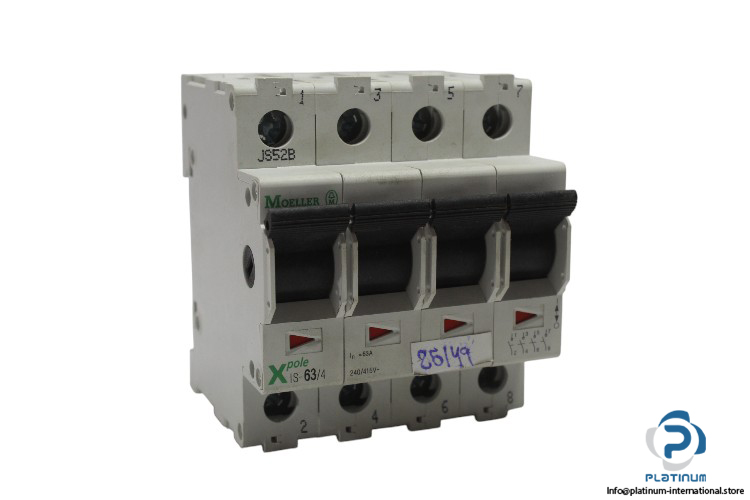

Moeller IS-63/4 Disconnector Switch
The Moeller IS-63/4 is a robust four-pole disconnector switch designed for safe and efficient power isolation in industrial electrical systems. With a 63 A rated current and high switching capacity, it provides reliable performance in compact form.
Manufacturer: MOELLER
Type: Disconnector Switch
Model: IS-63/4
Part No.: 276277
Technical Data:
- Terminals: Lift terminal
- Equipment Heat Dissipation, Current-Dependent: 7 W
- Heat Dissipation Per Pole, Current-Dependent: 4.8 W
- Built-in Depth: 69.5 mm
- Amperage Rating: 63 A
- Rated Operational Current (In): 63 A
- Rated Operational Voltage (Ue) “ Max: 415 V
- Voltage Rating “ Min: 240 V
- Rated Switching Capacity: 12.5 kA
- Width in Number of Modular Spacings: 4
- Number of Poles: Four-pole
- Dimensions: 60 x 80 x 70.8 mm
