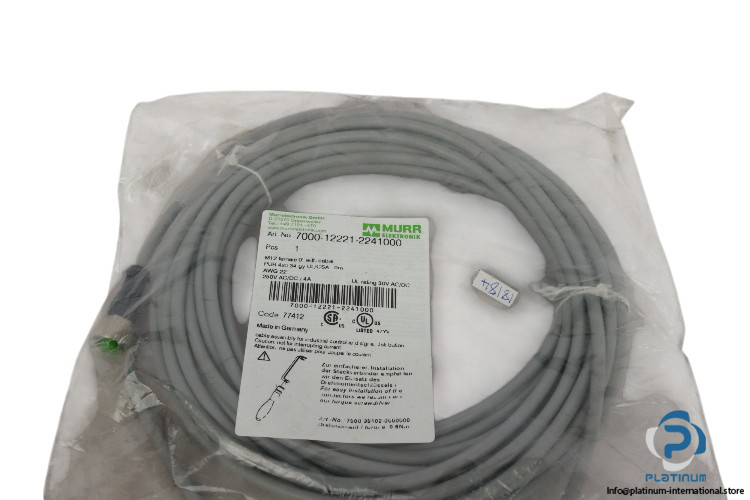

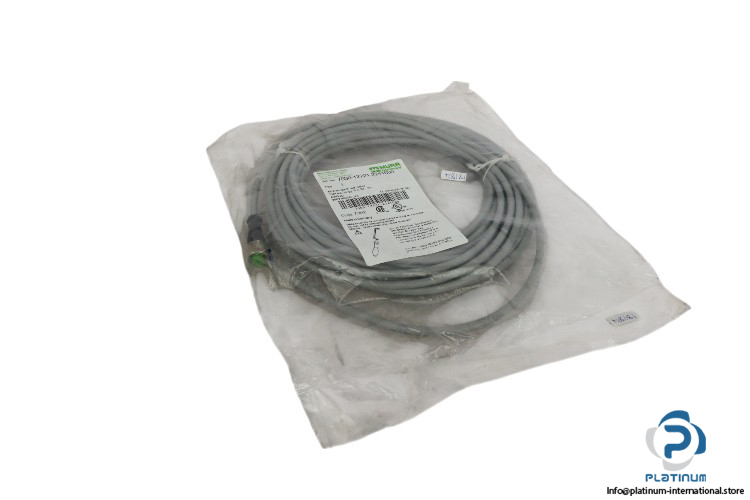

Murr 7000-12221-2241000 Sensor Cable
Sensorleitung MURR 7000-12221-2241000 Sensorleitung bietet eine Spannungsbewertung von 250 V AC/DC, 4 A pro Kontakt und Schutzarten IP65/IP66K/IP67. Mit einer Abisolierlänge von 20 mm, vergoldeten Kontakten und einem Temperaturbereich von -30°C bis 85°C gewährleistet sie eine zuverlässige Leistung in industriellen Umgebungen.
MURR 7000-12221-2241000 Sensor Cable
The MURR 7000-12221-2241000 Sensor Cable is a highly durable and reliable cable designed for industrial automation and machinery. Built to withstand challenging environments, this cable ensures optimal performance in high-voltage, high-temperature, and harsh conditions. The cable supports a maximum operating voltage of 250 V AC/250 V DC and a current of up to 4 A per contact, making it suitable for a wide range of industrial applications.
Featuring a gold-plated contact coating and a robust M12 connector, this sensor cable guarantees excellent signal transmission and high reliability. The 20 mm stripping length and the ability to be inserted or screwed into place make installation simple and secure. The cable’s IP65, IP66K, and IP67 protection ratings provide strong resistance to dust and water, ensuring durability and functionality even in wet or dusty environments.
The MURR sensor cable is designed for use with corrugated tubes with an internal diameter of 10 mm and offers a straight cable outlet for easy routing. With a wide operating temperature range of -30°C to 85°C, this sensor cable is versatile and can operate in both extreme cold and hot conditions, making it ideal for diverse industrial environments.
Manufacturer: MURR
Type: Sensor Cable
Model: 7000-12221-2241000
The MURR 7000-12221-2241000 Sensor Cable is a premium solution designed for industrial automation systems, offering durable and high-performance connections with excellent protection against environmental elements.
| Operating Voltage Max. | 250 V AC / 250 V DC |
| Current Operating Per Contact Max. | 4 A |
| Stripping Length (Jacket) | 20 mm |
| Tightening Torque | 0.6 Nm |
| Mounting Method | Inserted, screwed |
| Coating Contact | Gold plated |
| Family Construction Form | M12 |
| Thread | M12 x 1 |
| Pollution Degree | 3 |
| Rated Surge Voltage | 2.5 kV |
| Suitable for Corrugated Tube (Internal Ø) | 10 mm |
| Cable Outlet | Straight |
| Material Contact | Copper alloy |
| Material | PUR |
| Number of Poles | 4 |
| Degree of Protection | IP65, IP66K, IP67 |
| Operating Temperature | -30 to 85 °C |
