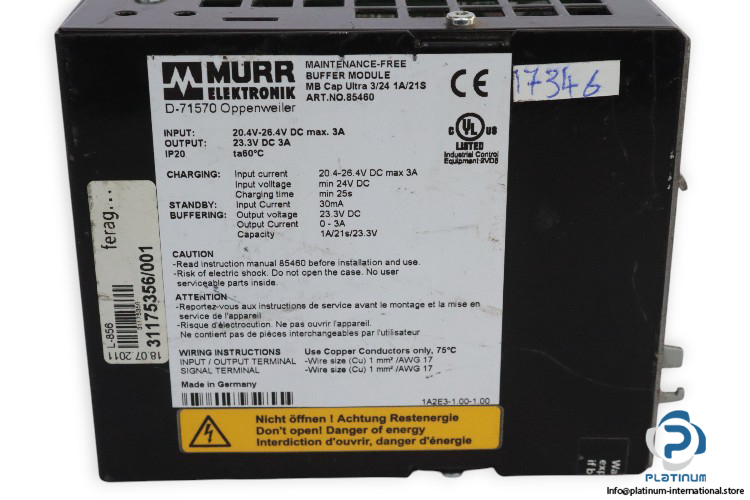

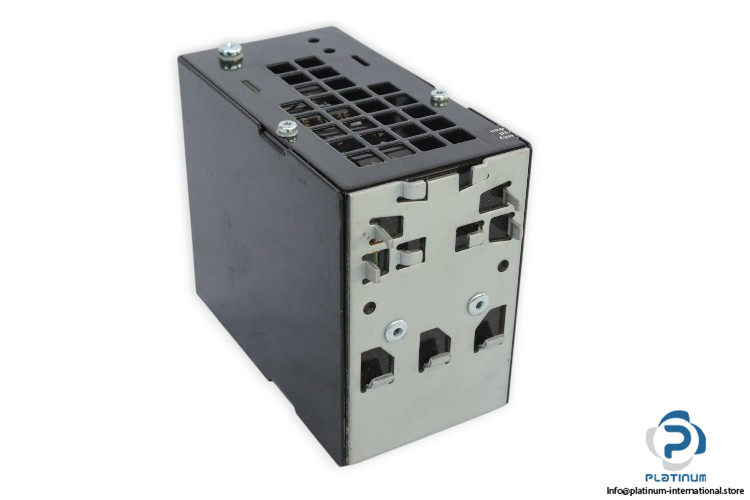

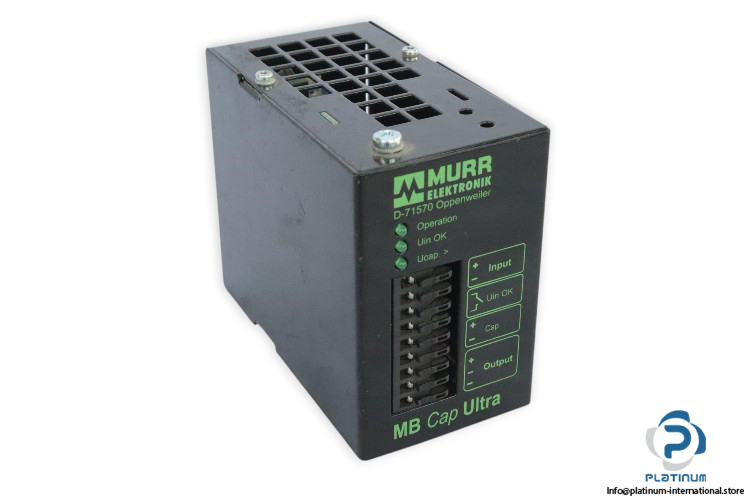

Murr 85460 Buffer Module

Murr Elektronik Buffer Module MB CAP ULTRA 3/24 1A/21S

Murr Elektronik Buffer Module MB CAP ULTRA 3/24 1A/21S is designed to provide stable and reliable buffering capabilities for industrial applications. It ensures a constant power supply and smooth operation under varying load conditions. This module is ideal for applications requiring a reliable backup power source and is engineered for optimal performance in harsh environments.

• Manufacturer: Murr Elektronik
• Type: Buffer Module
• Model: MB CAP ULTRA 3/24 1A/21S
• Art No.: 85460

Input:

• Voltage: 24 V DC (20.4 to 26.4 V DC max.)
• Current (charging): 3 A
• Charging Time: min. 25s
• Current (Buffering): 30 mA

Output:

• Voltage: 23.3 V DC
• Current: 0 to 3 A
• Capacity (Buffering): 1A@21s, 23.3 V DC

Other Specifications:

• Protection Degree: IP20
• Operating Temperature: -20 to 60 degrees Celsius
• Dimensions: 125 x 60 x 100 mm
