N 06-22 DC Film Capacitor

Name: N 06-22 DC FILM CAPACITOR
SKU: 1082148
Availability: LimitedAvailability

Gebraucht

Auf Lager1 EinheitVersandbereit

DC Film Capacitor

The N06-22 DC Film Capacitor provides high reliability with 2.2 µF capacitance, 630 VDC rating, and durable metalized film construction for use in inverters, drives, welding equipment, and renewable energy systems.

SKU

1082148

Kategorie

Capacitors

Zustand

Gebraucht

2/2 630 Capacitor Components dc Drives Electronics Energy Equipment Film Industrial Inverter Link N06-22 Power Renewable Snubber VDC Welding µF

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

DC Film Capacitor N06-22

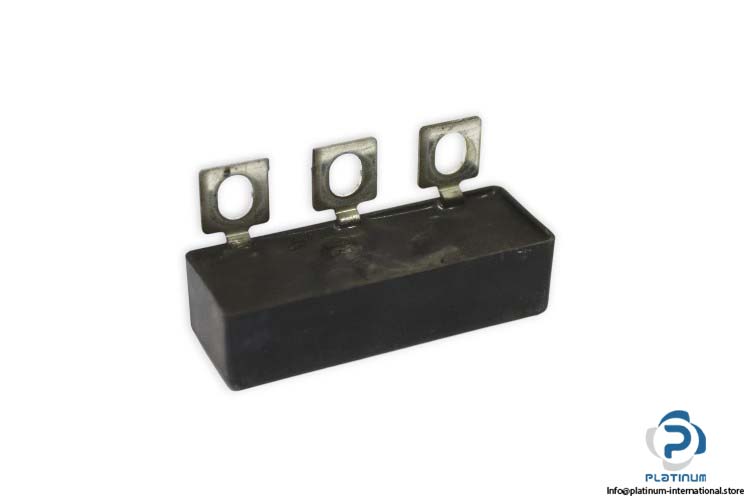

The DC Film Capacitor N06-22 is a high-performance capacitor designed for demanding power electronics and industrial drive applications. With excellent reliability and low ESR, it supports stable operation in inverters, motor drives, and renewable energy systems. Its robust metalized film construction with bolt-type terminals ensures superior current handling and durability in harsh environments.

Type: DC Film Capacitor

Model: N06-22

Typical Applications:

IGBT Inverter Modules (as snubber capacitors)

DC Link Filtering in motor drives and power supplies

Pulse Circuits in welding equipment and power converters

Renewable Energy Systems (solar inverters, wind converters)

Used	Power electronics and industrial drives

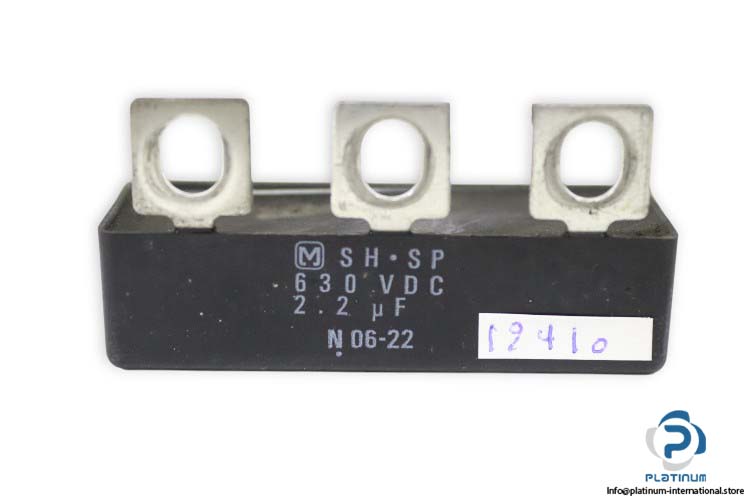

Marking	SH·SP (manufacturer/series marking)
Voltage Rating	630 VDC (DC working voltage)
Capacitance	2.2 µF
Construction	Metalized film capacitor, screw/bolt lug terminals for high-current handling
Terminals	Large flat lug terminals for low ESR and high ripple current capacity
