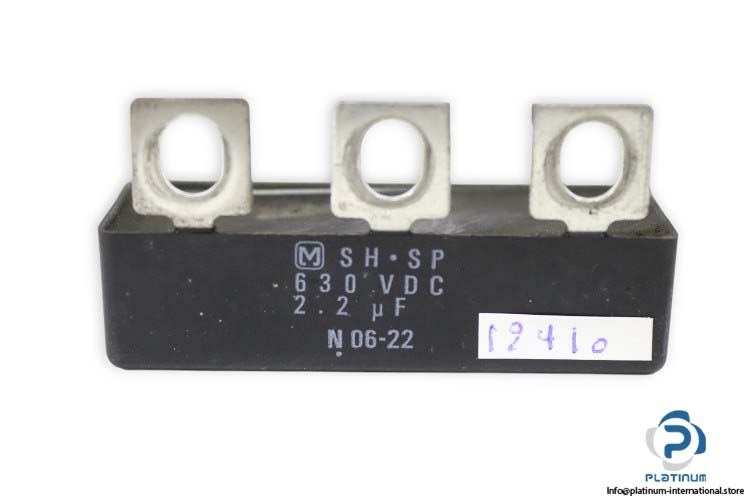

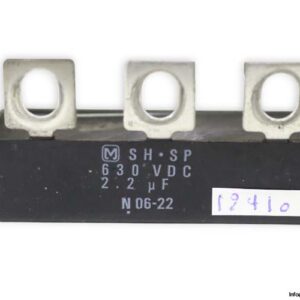

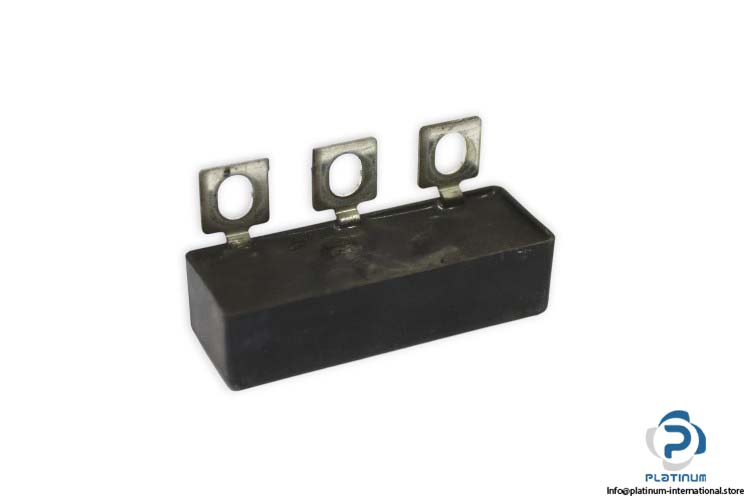

N 06-22 DC Film Capacitor
DC Film Capacitor
The N06-22 DC Film Capacitor provides high reliability with 2.2 µF capacitance, 630 VDC rating, and durable metalized film construction for use in inverters, drives, welding equipment, and renewable energy systems.DC Film Capacitor N06-22
The DC Film Capacitor N06-22 is a high-performance capacitor designed for demanding power electronics and industrial drive applications. With excellent reliability and low ESR, it supports stable operation in inverters, motor drives, and renewable energy systems. Its robust metalized film construction with bolt-type terminals ensures superior current handling and durability in harsh environments.
Type: DC Film Capacitor
Model: N06-22
Typical Applications:
IGBT Inverter Modules (as snubber capacitors)
DC Link Filtering in motor drives and power supplies
Pulse Circuits in welding equipment and power converters
Renewable Energy Systems (solar inverters, wind converters)
| Used | Power electronics and industrial drives |
| Marking | SH·SP (manufacturer/series marking) |
| Voltage Rating | 630 VDC (DC working voltage) |
| Capacitance | 2.2 µF |
| Construction | Metalized film capacitor, screw/bolt lug terminals for high-current handling |
| Terminals | Large flat lug terminals for low ESR and high ripple current capacity |
