Bearings Shaft Guiding & Linear Ball Bushings

NBS Kbfl 25 PP Linear Ball Bushing

Name: NBS KBFL 25 PP LINEAR BALL BUSHING
SKU: 1057264
Availability: LimitedAvailability

nbs-KBFL-25-PP-linear-ball-bushing-(new)-carton

nbs-KBFL-25-PP-linear-ball-bushing-(new)-carton-1

nbs-KBFL-25-PP-linear-ball-bushing-(new)-carton-2

nbs-KBFL-25-PP-linear-ball-bushing-(new)-carton-3

nbs-KBFL-25-PP-linear-ball-bushing-(new)-carton-4

Neu

Auf Lager5 EinheitenVersandbereit

Hersteller: NBS Typ: LINEAR BALL BUSHING Modell: KBFL-25-PP

Hersteller

NBS

SKU

1057264

Kategorie

Shaft Guiding & Linear Ball Bushings

Zustand

Neu

25 Ball bearing bearings Bushings Guiding ISB Linear mm Motion shaft Slides

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: NBS
Type: LINEAR BALL BUSHING
Model: KBFL-25-PP

Number of Ball Rows: 6

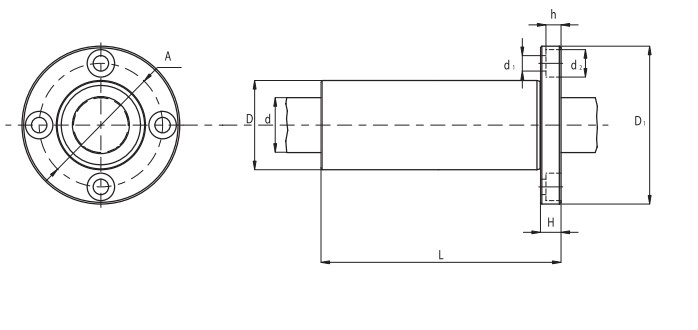

Dimensions
Bore Diameter d: 25 mm
Outer Diameter D: 40 mm
D1: 62 mm
H: 8 mm
A: 51 mm
Length: 112 mm
d1xd2xh: 5.5 x 9.5 x 5.4 mm
basic load rating:
Dynamic Load Rating: 1560 N
Static Load Rating: 3140 N
Sealing: PP, Seals on Both Sides
Cage: Polyamide cage
