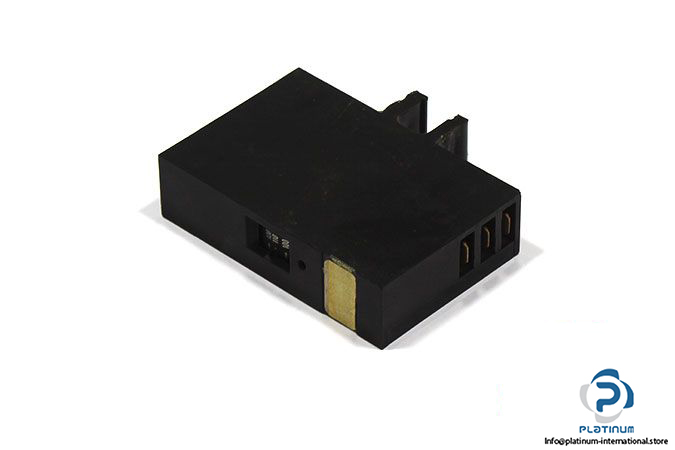

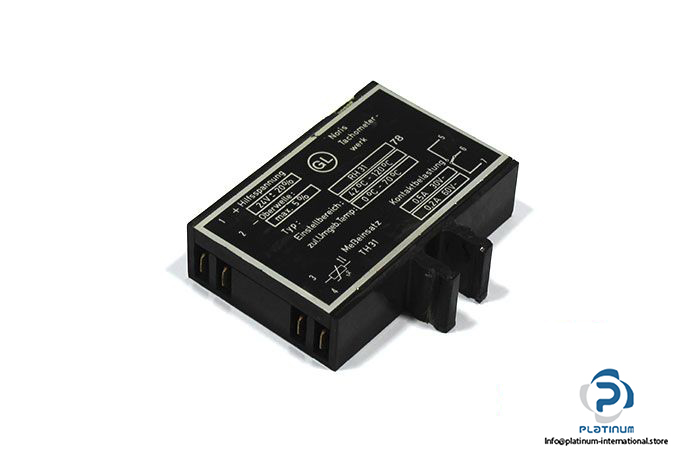

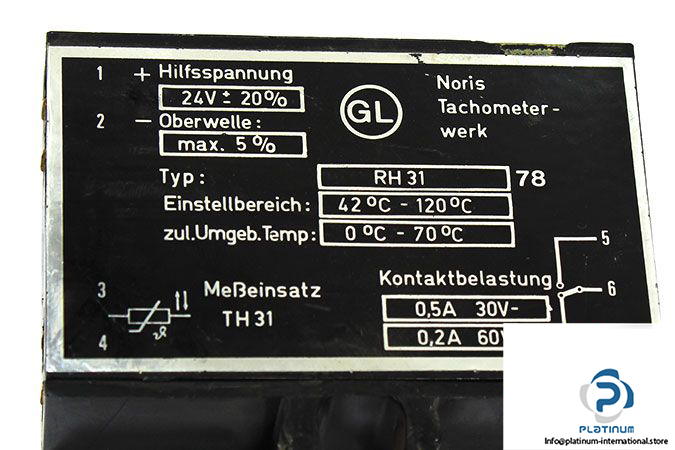

Noris RH-31 Limit Value Switch

Manufacturer: Noris

Type: Temperature Sensor

Model: RH31

Alternative Model: RH51

Supply Voltage: U_s = 18 … 32 V/DC, U_R= 24 V/DC

Overvoltage: 2.5 times U_R up to 2 ms

Power Consumption: Approx. 40 mA (24 V/DC)

Input Signal: NORIS NTC thermistor TH.1, TH.2

Input Current: < 7 mA

Mounting: Snap-Fi T on Top-Hat Channel or G-Channel

Input Adjustment Range: 42…120 °C

Operating Temperature: -20…70 °C

Protection Class: IP20

Dimensions: 70 x 46 x 17 mm

Weight: 55 g
