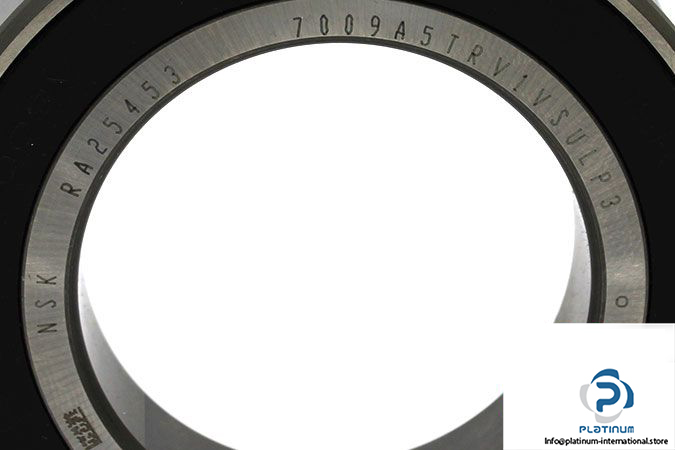

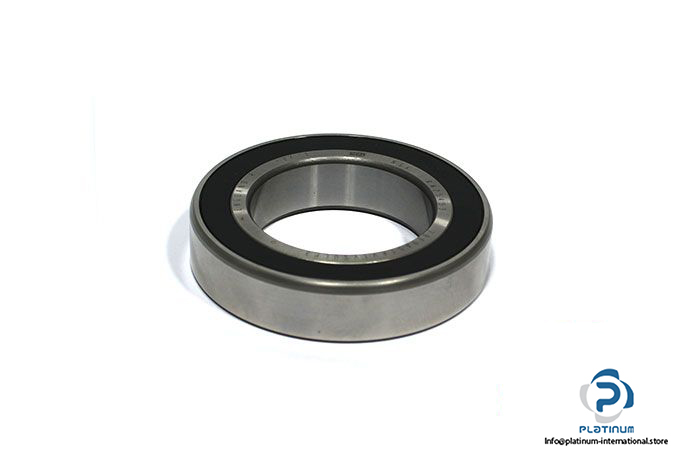

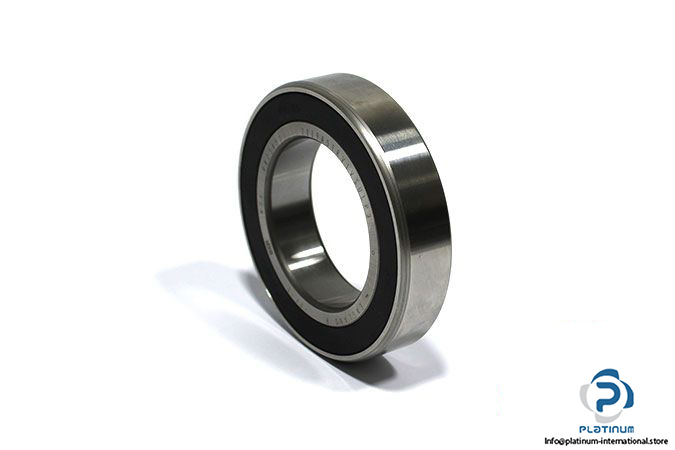

NSK 7009 A5TRV1VSULP3 Angular Contact Ball Bearing

Manufacturer: NSK

Type: Super Precision Sealed Angular Contact Ball Bearing

Model: 7909A5TRV1VSULP3

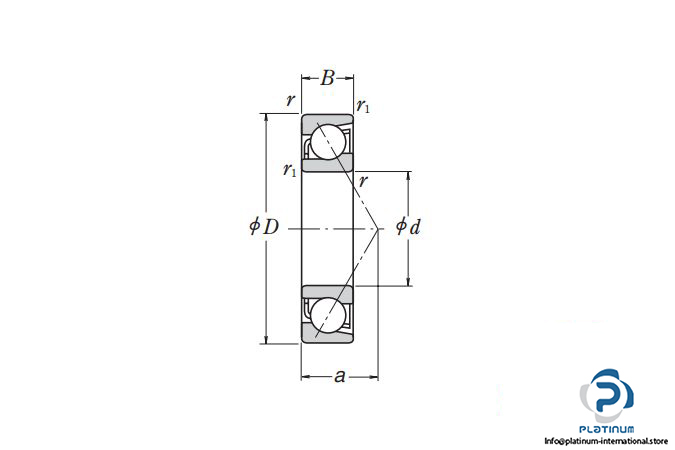

Dimensions

Bore Diameter d: 45 mm

Outer diameter D: 75 mm

Width B: 16 mm

Contact angle α: 25 °

Basic load ratings:

Dynamic C_r: 23100 N

Static C_0r: 18300 N

Limiting Speed (Grease): 16700 rpm

Accuracy: P3

Preload: L, light preload

Cage: TR, phenol resin cage

Seal: V1V, non-contact rubber seal

Weight: 0.24 kg
