NSK HR 30203J Tapered Roller Bearing
Gebraucht
Auf Lager1 EinheitVersandbereit
Kegelrollenlager NSK HR30203J Kegelrollenlager mit 17 mm Bohrung, 40 mm Außendurchmesser und 13,25 mm Gesamtbreite. Entwickelt für hohe Tragfähigkeit, präzise Ausrichtung und sanfte Rotation in Industriemaschinen.
bearingbearingsComponentsEquipmentHighHR30203JIndustrialLoadMechanicalNSKPrecisionRollerRotatingtapered
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

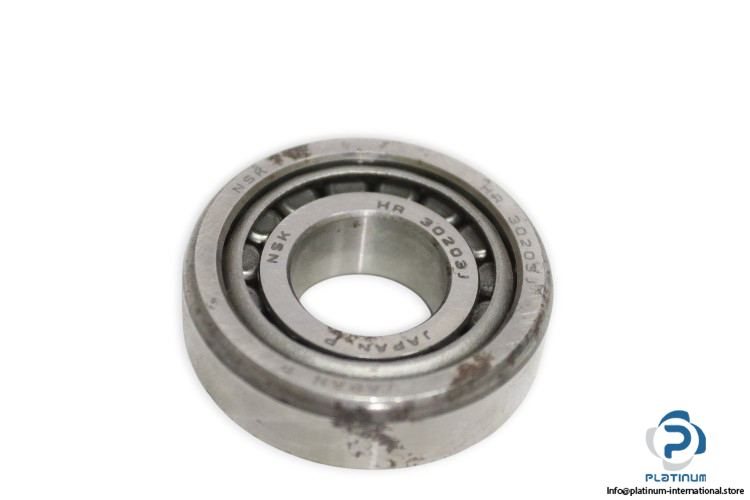

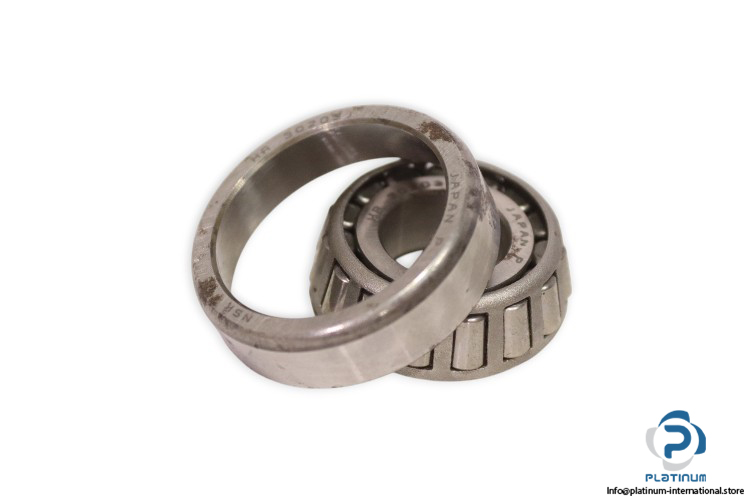

NSK HR30203J Tapered Roller Bearing
The NSK HR30203J is a high-quality tapered roller bearing designed for precision, durability, and smooth operation in demanding mechanical and industrial applications.
Manufacturer: NSK
Type: Tapered Roller Bearing
Model: HR30203J
| Bore Diameter (d) | 17 mm |
| Outside Diameter (D) | 40 mm |
| Total Width (T) | 13.25 mm |
| Width of Inner Ring (B) | 12 mm |
| Width of Outer Ring (C) | 11 mm |
| Chamfer Dimension of Outer Ring Cup r (min.) | 1 mm |
| Chamfer Dimension of Inner Ring Cone r (min.) | 1 mm |
| Basic Dynamic Load Rating (Cr) | 24,800 N |
| Basic Static Load Rating (C0r) | 19,900 N |
| Grease Lubrication Speed | 9,500 rpm |
| Oil-Bath Lubrication Speed | 13,000 rpm |
