In stock1 unitReady to ship

Tapered Roller Bearing

NSK HR30203J tapered roller bearing with 17 mm bore, 40 mm outside diameter, and 13.25 mm total width. Built for high load capacity, precision alignment, and smooth rotation in industrial machinery.

Manufacturer
NSK
SKU
1082628
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

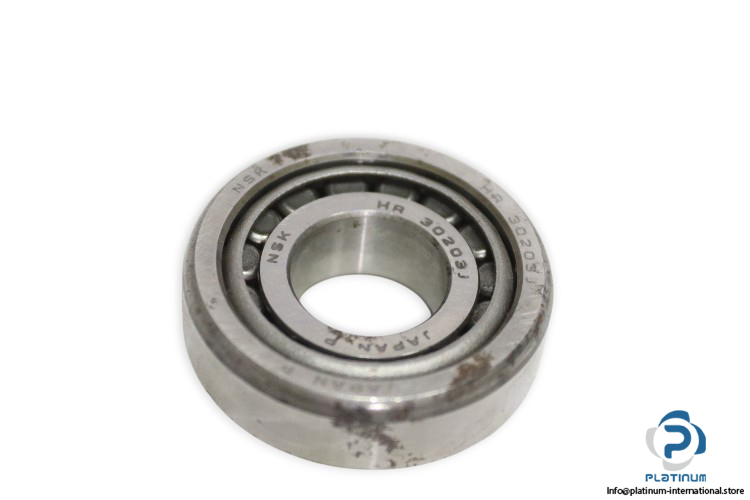

NSK HR30203J Tapered Roller Bearing

The NSK HR30203J is a high-quality tapered roller bearing designed for precision, durability, and smooth operation in demanding mechanical and industrial applications.

Manufacturer: NSK

Type: Tapered Roller Bearing

Model: HR30203J

Bore Diameter (d)17 mm
Outside Diameter (D)40 mm
Total Width (T)13.25 mm
Width of Inner Ring (B)12 mm
Width of Outer Ring (C)11 mm
Chamfer Dimension of Outer Ring Cup r (min.)1 mm
Chamfer Dimension of Inner Ring Cone r (min.)1 mm
Basic Dynamic Load Rating (Cr)24,800 N
Basic Static Load Rating (C0r)19,900 N
Grease Lubrication Speed9,500 rpm
Oil-Bath Lubrication Speed13,000 rpm
