Bearings Housing Units Plummer Block Housing Units

NSK UCFC205 AV2 Round Flange Ball Bearing Unit

Name: NSK UCFC205 AV2 ROUND FLANGE BALL BEARING UNIT
SKU: 1030873
Availability: LimitedAvailability

nsk-UCFC205-AV2-round-flange-ball-bearing-unit-(new)-(carton)

nsk-UCFC205-AV2-round-flange-ball-bearing-unit-(new)-(carton)-1

nsk-UCFC205-AV2-round-flange-ball-bearing-unit-(new)-(carton)-2

nsk-UCFC205-AV2-round-flange-ball-bearing-unit-(new)-(carton)-3

nsk-UCFC203-AV2-round-flange-ball-bearing-unit-(new)-(carton)-4

Neu

Auf Lager3 EinheitenVersandbereit

Hersteller: NSK Typ: Rundflansch-Kugellagereinheit, gegossenes Gehäuse mit Spigot-Verbindung Modell: UCFC 205 AV2 Lagernummer: UC205 Gehäusenummer: FC205

Hersteller

NSK

SKU

1030873

Kategorie

Plummer Block Housing Units

Zustand

Neu

25 bearing bearings Flange flanged Four-Bolt mm NSK Pillow Round Unit

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: NSK
Type: Round flange ball bearing unit, cast housing with spigot joint
Model: UCFC 205 AV2
Bearing Number: UC205

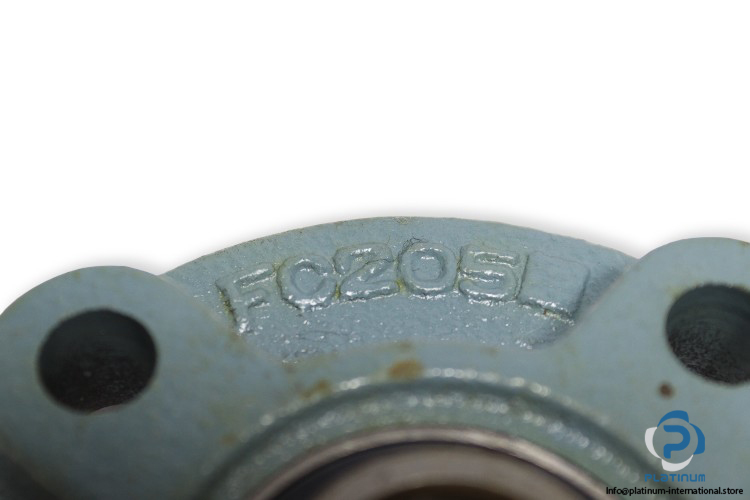

Housing Number: FC205

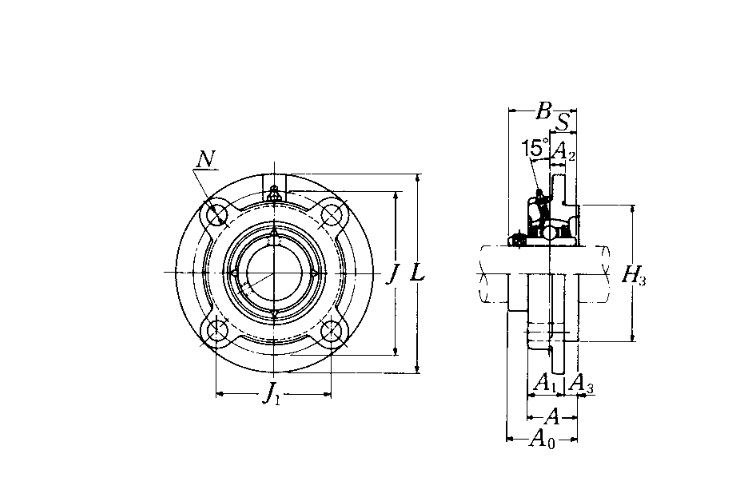

Dimensions
Bore Diameter d: 25 mm
Outside diameter L: 115 mm
Distance between attachment bolts J1: 63.6 mm
Pitch diameter of attachment bolts J: 90 mm
Length of attachment bolt hole N: 12 mm
Width of inner ring B: 34.1 mm
Overall width A0: 35.8 mm
Bolt size: M10
Locking Device: Set Screw
