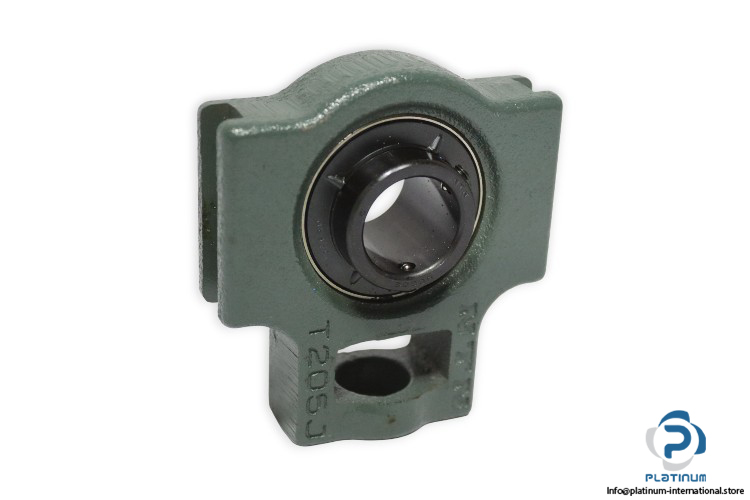

NTN UCT 205J Take UP Ball Bearing Unit
Neu
Auf Lager1 EinheitVersandbereit
Take-Up Lager Einheit NTN UCT205J Take-Up Kugellager Einheit mit 25 mm Bohrung, UC205 Einbaulager, Gusseisen Gehäuse und Stellschraubensicherung für industrielle Wellenlagerung.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
NTN UCT205J Take-Up Ball Bearing Unit
The NTN UCT205J is a take-up type ball bearing unit designed for reliable shaft support and easy position adjustment in industrial applications. The unit combines a UC205 insert bearing with a T205J cast iron housing, providing durability, stability, and secure shaft locking.
Manufacturer: NTN
Type: Take-Up Ball Bearing Unit
Model: UCT205J

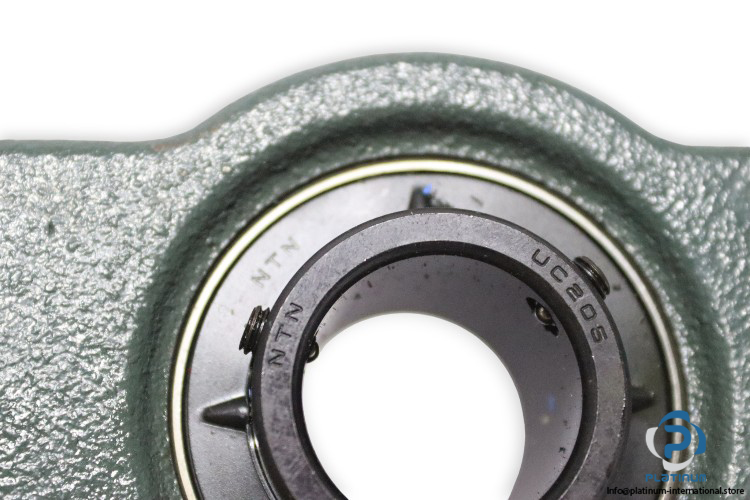

Bearing Number: UC205

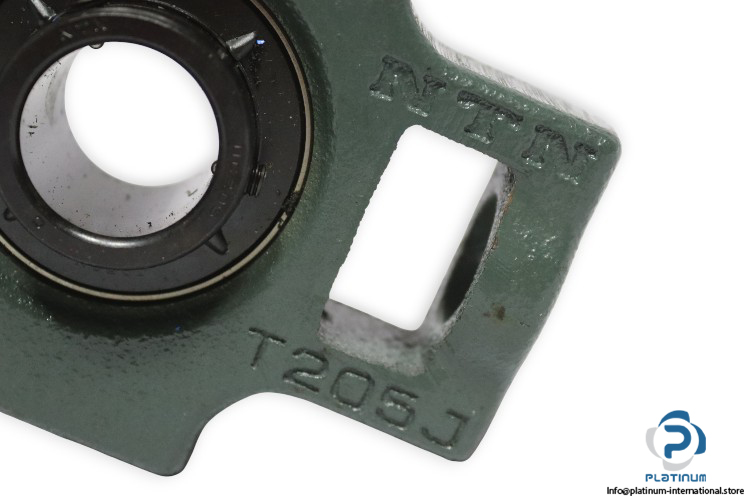

Housing Number: T205J
| Shaft Diameter | 25 mm |
| Overall Width (B) | 34.1 mm |
| Overall Height (H) | 89 mm |
| Height Of Attachment End (H2) | 51 mm |
| Overall Length (L) | 97 mm |
| Housing Type | Take-Up (UCT Type) |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
