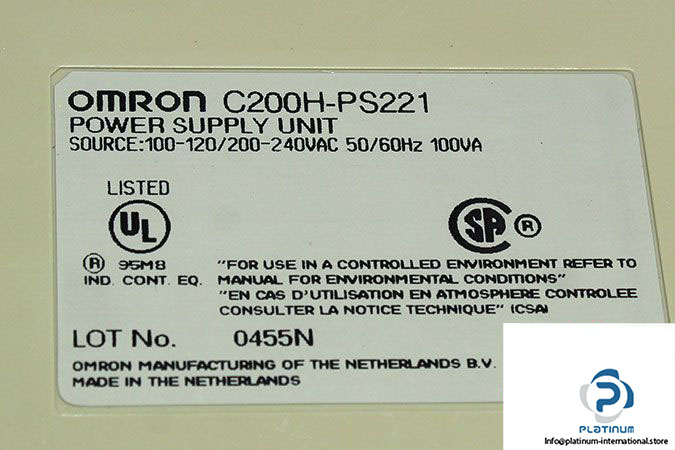

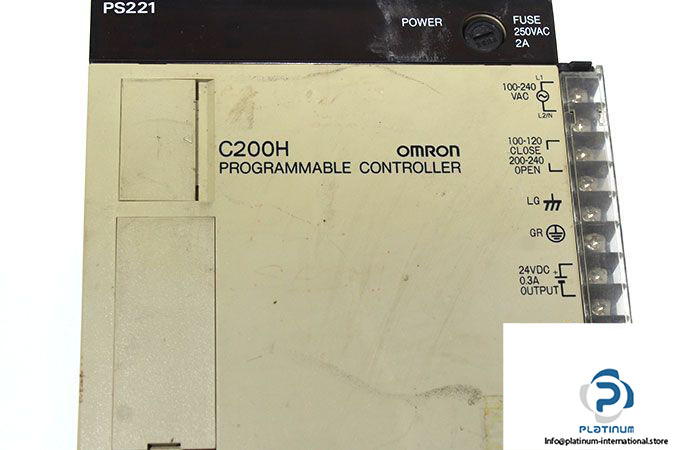

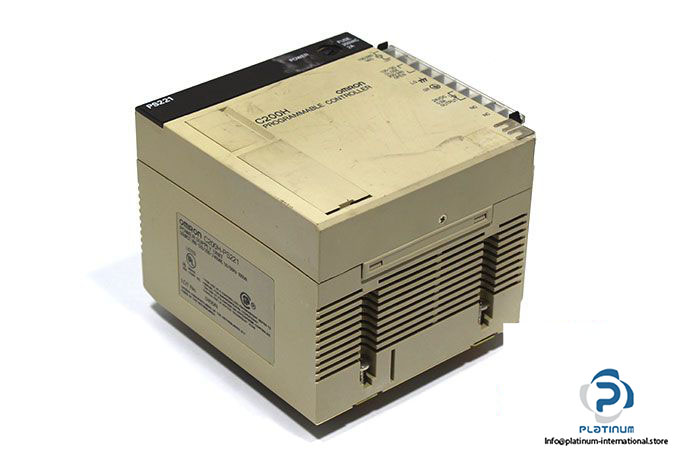

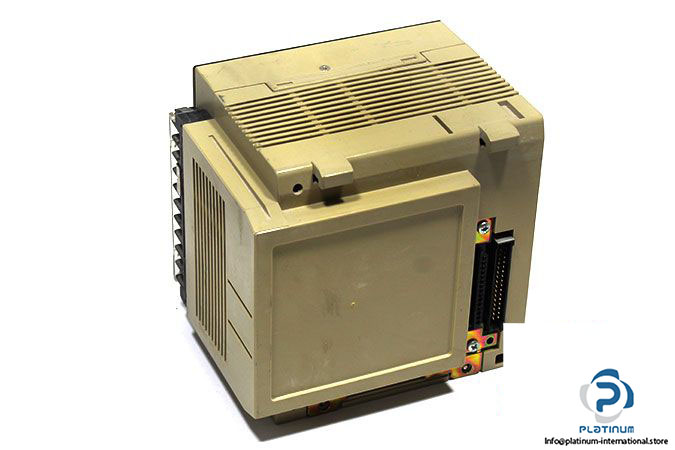

Omron C200H-PS221 Power Supply Unit

Manufacturer: Omron

Type: Power Supply Unit

Model: C200H-PS221

Supply Voltage: 100 to 120/200 to 240 V AC selectable, 50/60 Hz

Operating Voltage Range: 85 to 132/170 to 264 V AC

Max. Surge Current: 30 A

Fuse: 2 A, 250 V, 5.2 dia. x 20 (MF51NR)

Input Power Supply: 0.3 A, 24 VDC ^+10%/_-20%

Max. Power Consumption: 100 VA

Insulation Resistance: 20 MΩ min.

Noise Immunity: 1,500 Vp-p, pulse width: 100 ns to 1 ms, rise time: 1 ns (by noise simulation)

Humidity: 35% to 85% (without condensation)

Grounding: Less than 100 Ω

Enclosure Rating: IEC IP30

Ambient Temperature: 0…55 °C

Weight: 1.04 kg
