Omron D4B-1171N Safety Limit Switch
Gebraucht
Auf Lager1 EinheitVersandbereit
Omron Safety Limit Switch D4B1171N with 1NC, 1NO output configuration, metal roller actuator, and protection degree IP67. Reliable for safety applications in industrial environments.
1NC1NO400ACActionActuatorCurrentEN50041EN60947-5-1IEC947-5-1IndustrialIP67LimitMetalOmronOperatingRatedRollerSafetySnapSwitchVVDE0660
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

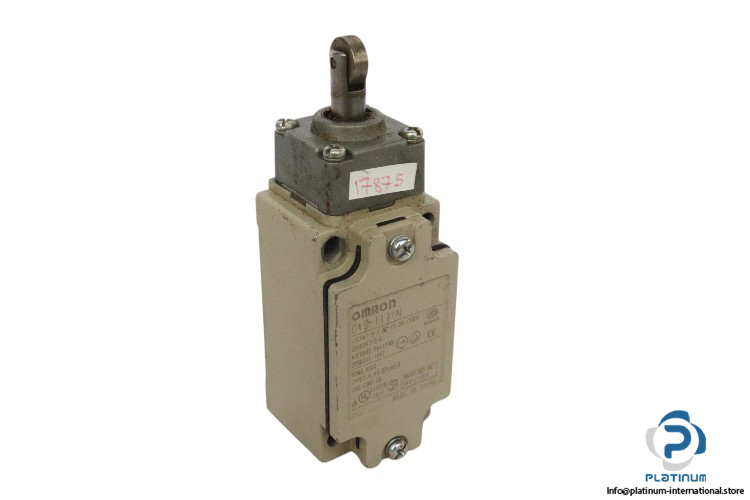

Omron Safety Limit Switch D4B1171N
Omron Safety Limit Switch D4B1171N is a highly reliable and durable switch designed for industrial applications. It features a metal roller actuator and offers a high level of protection, making it ideal for use in safety-critical environments. Below are the key technical specifications:
- Manufacturer: Omron
- Type: Safety Limit Switch
- Model: D4B1171N
Technical Data:
- Output Configuration: 1NC, 1NO
- Contact Operation: Snap action
- Rated Operating Current (Ie) AC-15: 2 A
- Rated Operating Voltage (Ue) AC-15: 400 V AC
- Actuator: Metal roller
- Standard: IEC947-5-1, EN60947-5-1, VDE0660, EN50041
- Protection Degree: IP67
- Body Dimensions: 40 x 43 x 77 mm
Consists of:

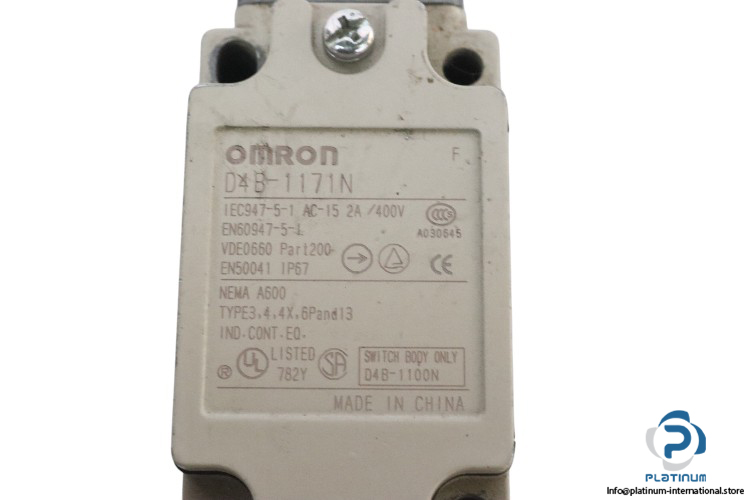

- Switch box (D4B-1100N)

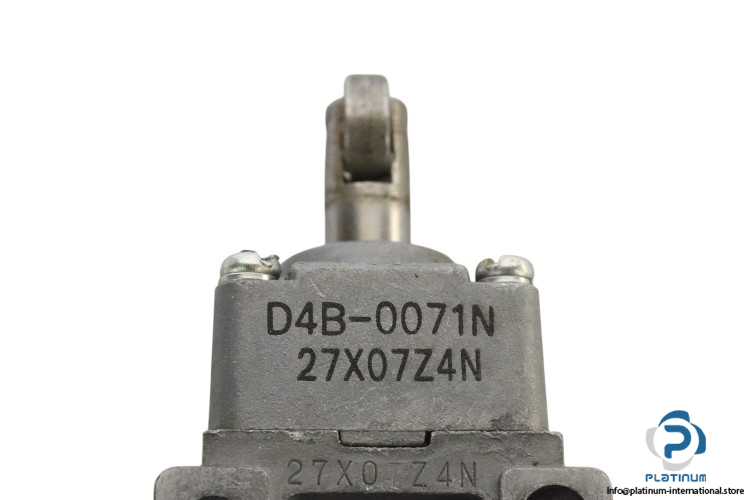

- Head (D4B-0071N / 27X07Z4N)
- Lever
