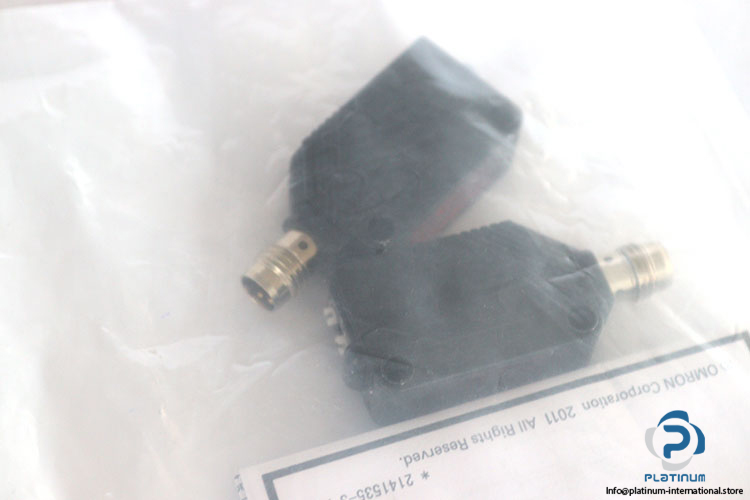

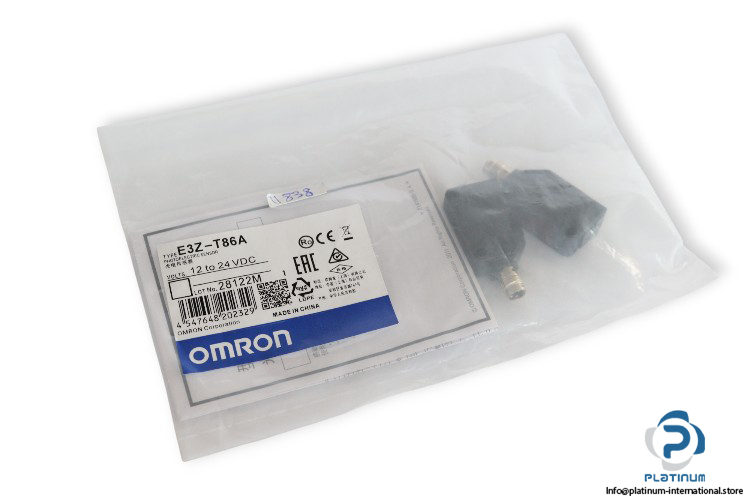

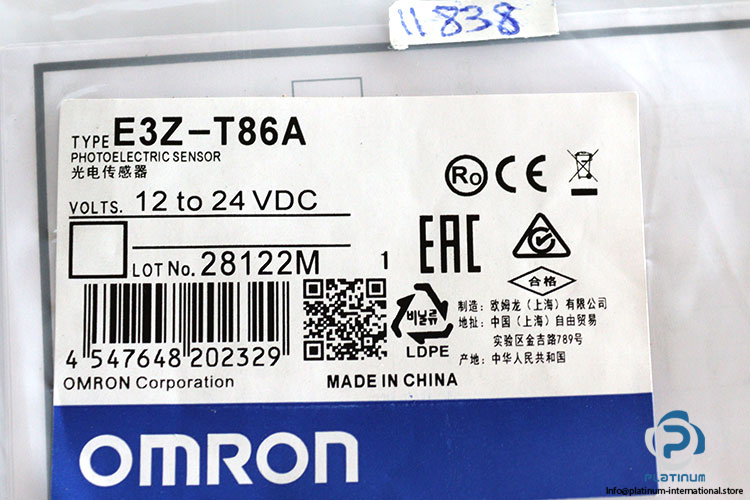

Omron E3Z-T86A Photoelectric Sensor
Auf Anfrage verfügbar
Fotoelektrischer Sensor
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Manufacture | Omron |
| Part No. | 28122M |
| Power Supply Voltage | 12 … 24 V DC |
| Max. Current Consumption | Emitter: 15 mA max., Receiver: 20 mA max |
| Max. Response Time | 1 ms |
| Directional Angle | Emitter: 3 … 15 °, Receiver: 3 … 15 ° |
| Sensing Method | Through-Beam |
| Sensing Distance | 10 m |
| Sensitivity setting | Single-turn adjustment |
| Electrical Design | PNP |
| Connection Method | M8 connector models |
| Light Source | Red LED (660 nm) |
| Operation Mode | Light-ON/Dark-ON selectable |
| Protection Class | IP67 |
| Operating Temperature | -40 … 55°C |
| Material | Case: Polybutylene terephthalate (PBT), Lens: Denatured Polyarylate |
| Dimensions | Emitter,E3Z-T86A-L: 10.8 x 31 x 20 mm, Receiver,E3Z-T86A-D: 10.8 x 20 x 31 |
| Condition | New |
| SKU | 1043712 |
| Weight | 0,02 |
