Omron E5GN-Q1P Digital Temperature Controller
Gebraucht
Auf Lager4 EinheitenVersandbereit
Omron Digitaler Temperaturregler E5GNQ1P mit Spannungsausgang (zur Ansteuerung von SSR), Relaisausgang SPST-NO und 7-Segment-Digitalanzeige. Geeignet für eine breite Palette von Temperatursensoren, einschließlich Thermoelementen und Platin-Widerstandsthermometern.
7-SegmentAdjustableControllerDigitalDisplayIndustrialInputManagementOmronOutputPlatinumRelayResistanceSensorSpst-NOSSRTemperatureThermocouplethermometervoltage
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

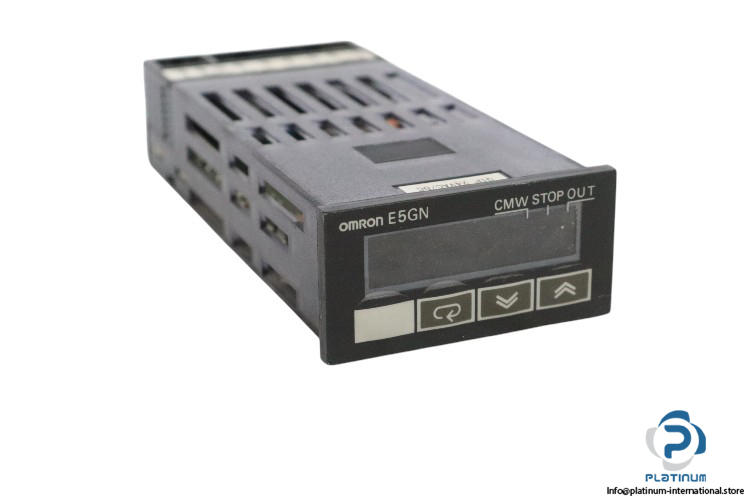

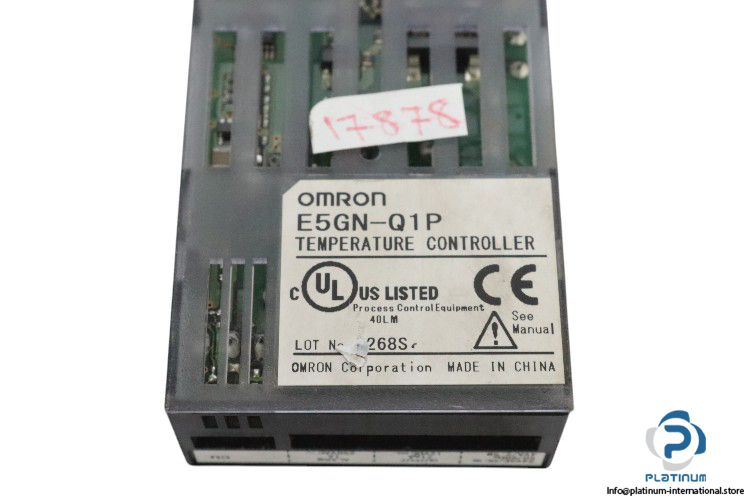

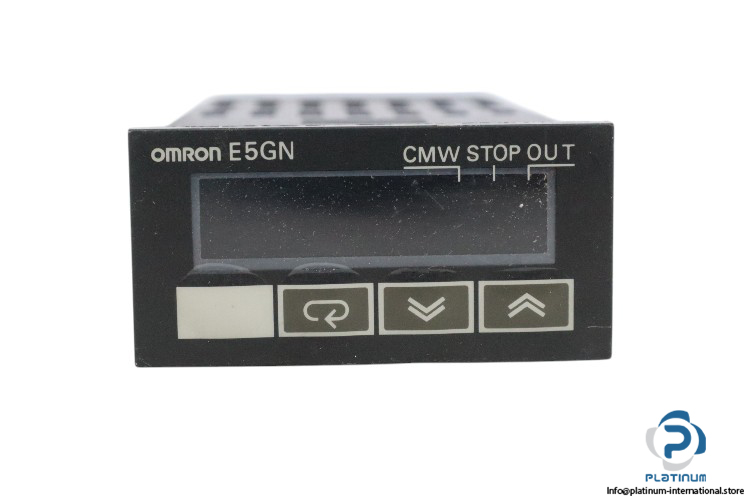

Omron Digital Temperature Controller E5GNQ1P
Omron Digital Temperature Controller E5GNQ1P is a versatile and reliable controller designed for precise temperature management in industrial applications. Below are the key technical specifications:
- Manufacturer: Omron
- Type: Digital Temperature Controller
- Model: E5GNQ1P
Technical Data:

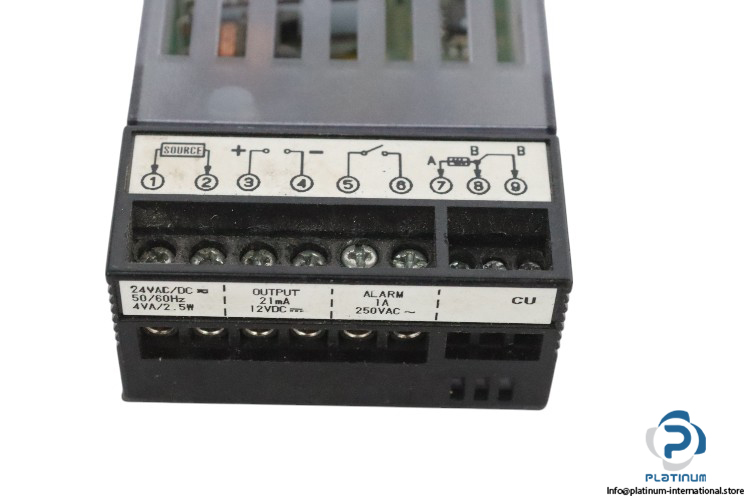

- Power Supply Voltage: 24 V AC/DC
- Frequency: 50/60 Hz
- Power: 4 VA/2.5 W
- Control Output: Voltage output (for driving SSR)
- Output: Relay output SPST-NO, 250 VAC, 2 A
- Output Voltage, Current: 12 VDC (PNP), max. load current: 21 mA
- Alarm Output: SPST-NO, 250 VAC, 1 A
- Setting Method: Digital setting using front panel keys
- Indication Method: 7-segment digital display and single-lighting indicator
- Sensor Input:
- Thermocouple: K, J, T, E, L, U, N, R, S, B
- Platinum resistance thermometer: Pt100, JPt100
- Dimensions: 48 x 24 x 100 mm
- Ambient Operating Temperature: -10 to 55°C
