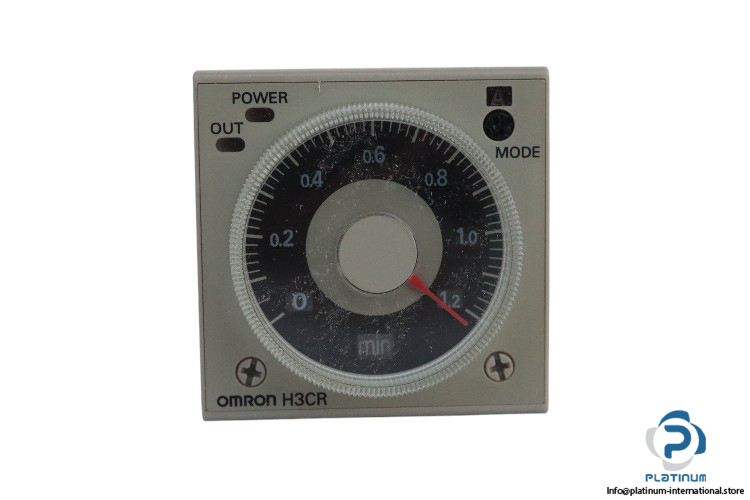

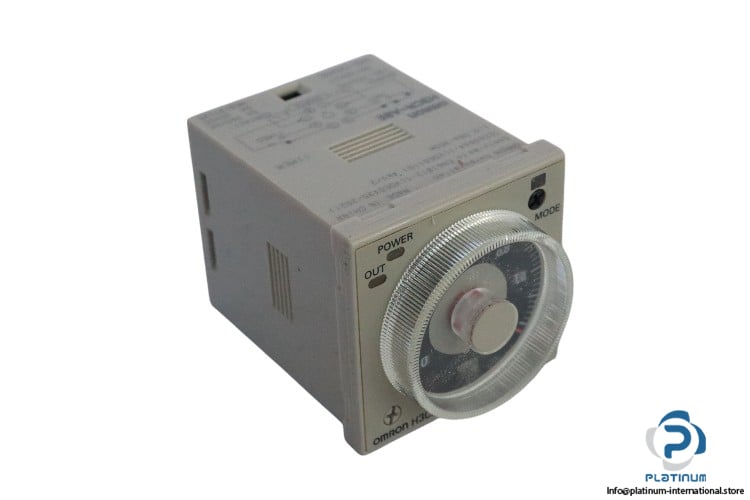

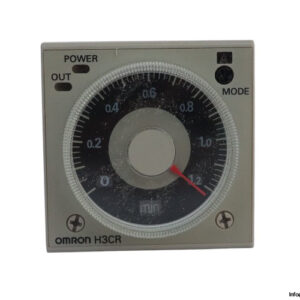

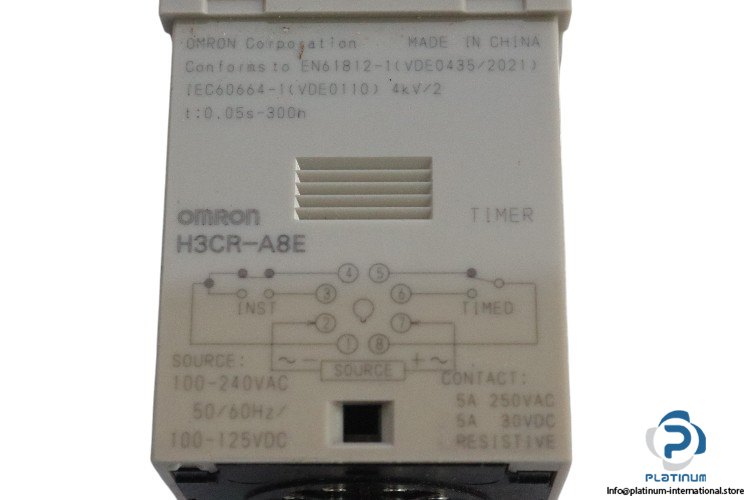

Omron H3CR-A8E 0.05S-300H Solid-State Multi-Functional Timer

Omron Solid-State Multi-Functional Timer H3CRA8E

Omron Solid-State Multi-Functional Timer H3CRA8E is a versatile timer designed for precise and reliable control in industrial applications. With multiple operating modes and robust features, it ensures accurate timing for a variety of tasks.

• Manufacturer: Omron
• Type: Solid-State Multi-Functional Timer
• Model: H3CRA8E

Technical Data:

• Rated Supply Voltage: 100 to 240 V AC, 100 to 125 V DC
• Nominal Voltage (Un): 250 V AC, 30 V DC
• Frequency: 50/60 Hz
• Thermal Current: 5 A
• Timer Range: 0.05s to 300h
• Rated Impulse Withstand Voltage (Uimp): 4 kV

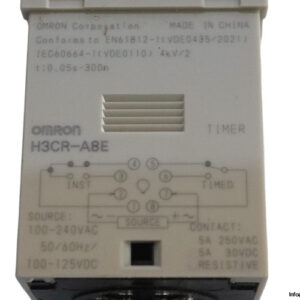

• Standard: IEC60947-5-1, EN61812-1, VDE0435/2021, IEC60664-1 (VDE0110)

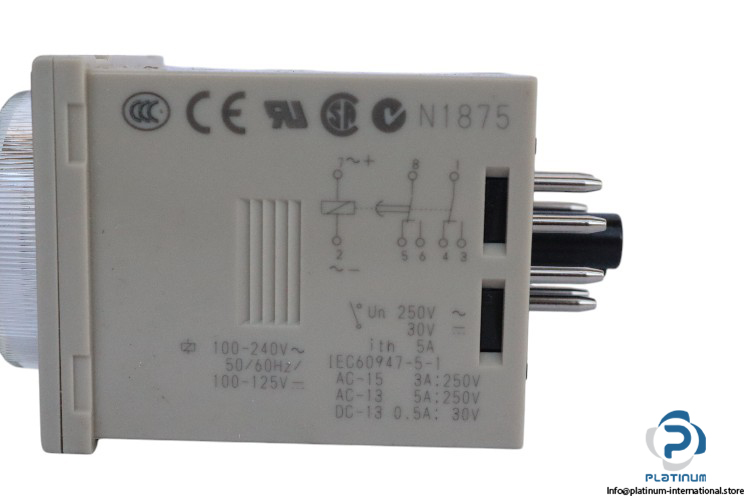

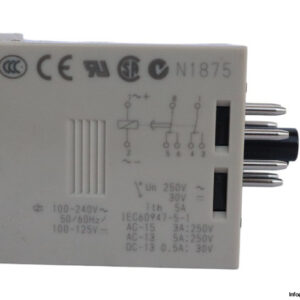

Contact Ratings:

• AC-15: 3 A, 250 V AC
• AC-13: 5 A, 250 V AC
• DC-13: 0.5 A, 30 V DC

Control Output Type:

• Time-limit: SPDT
• Instantaneous: SPDT

Operation Modes:

• ON delay
• Flicker OFF start
• Flicker ON start
• Interval
• One shot output

• No. of Pins: 8
• Ambient Temperature Operating: -10 to 55°C
• Degree of Protection: IP40
• Dimensions: 48 X 48 X 81.5 mm
