Omron H3YN-2 Solid-State Timer

Manufacturer: Omron

Type: Solid-State Timer

Model: H3YN-2

Rated Power Supply Voltage: 24 VDC If power supply incorporates a single-phase full-wave rectifier

Power Consumption: Relay ON: Approx. 1.1 W (at 24 VDC)/Relay OFF: Approx. 0.1 W (at 24 VDC)

Contact Voltage: 250 VAC , 3 A ; 250 VAC, 5 A ; 30 VDC, 0.5 A

Number of Time Ranges: 4

Control Output: Time-limit: DPDT

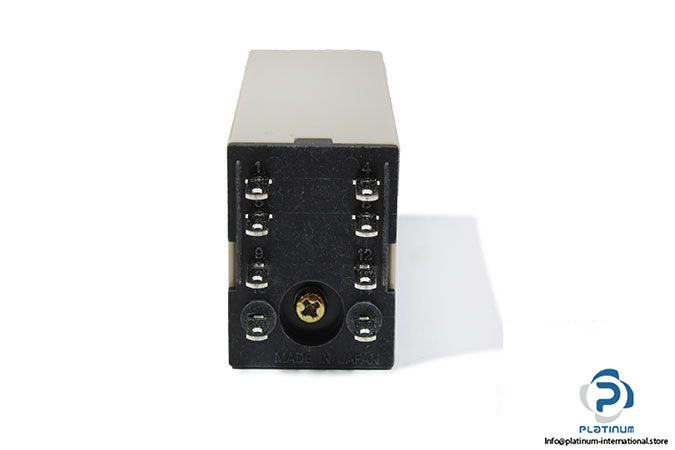

Connecting Method: 8-Pin Round Socket

Ambient Temperature: -10…50 °C

Case Color: Beige

Degree of Protection: IP40

Dimensions: 20.5 x 64 x 27 mm

Weight: 40 g
