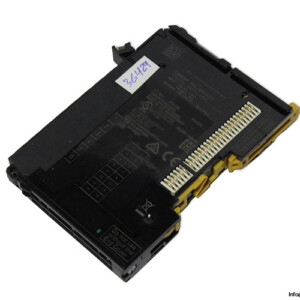

Omron NX-ID5442 Digital Input Unit
Neu
Auf Lager3 EinheitenVersandbereit
Digital Input Unit Omron NX-ID5442 digital input unit with 16 inputs, 24 V DC operation, PNP output, EtherCAT compatibility, and compact IP20 design for industrial automation applications.
24vAutomationControldcDigitalElectronicsEtherCATI/OID5442IndustrialInputModuleNXNX-ID5442OmronPLCPNPSeriesSystemUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Series | NX |
| Lot No. | 05Z22N |
| Ver. | 1.0 |
| EAN. No. | 4 549734 450515 |
| No. of digital inputs (DI) | 16 |
| Nominal Voltage | 24 V DC |
| Input current | 2.5 mA |
| Output type | PNP |
| Connection | Screw less Push-In Plus terminal block |
| Compatibility | Connects with NJ/NX/NY Controllers via EtherCAT Coupler Units, or directly on the NX CPU Un |
| Response Time (ON/OFF) | 20 mS/400 mS |
| Certificate | EAC, cULus, CE, KC |
| Protection degree | IP20 |
| Ambient Temperature | 0 to +55°C |
| Dimensions | 104.5 x 12 x 80.1 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097675 |
| Weight | 0,09 |
