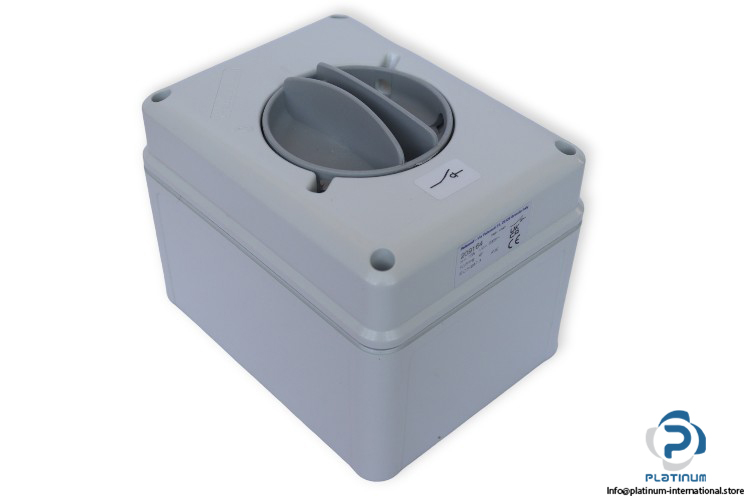

Palazzoli 209164 Control Isolator Switch
Manufacturer: PALAZZOLI
Type: Control Isolator Switch
Model: 209164
Description: CAM-SZ Isolator Switch with Grey Handle and Cover, in Insulating Material, for Wall Mounting
Rated Operating Voltage: 690 V AC
Rated Current: 16 A
Frequency: 50 … 60 Hz
Rated Insulation Voltage: 690 V
CAM Layout: 3
Poles No.: 4-Pole
Material: Technopolymer Recyclable Palazzoli
Protection Class: IP65
Ambient Temperature: -25 … 60 °C
Lockable Handle: 2 Locks Ø 5 mm
Dimensions: 158 x 121 x 126 mm
